OEM High Quality ZATH HE Minimal Invasive Spine Pedicle Screw Manufacturers, Exporters
Product Description

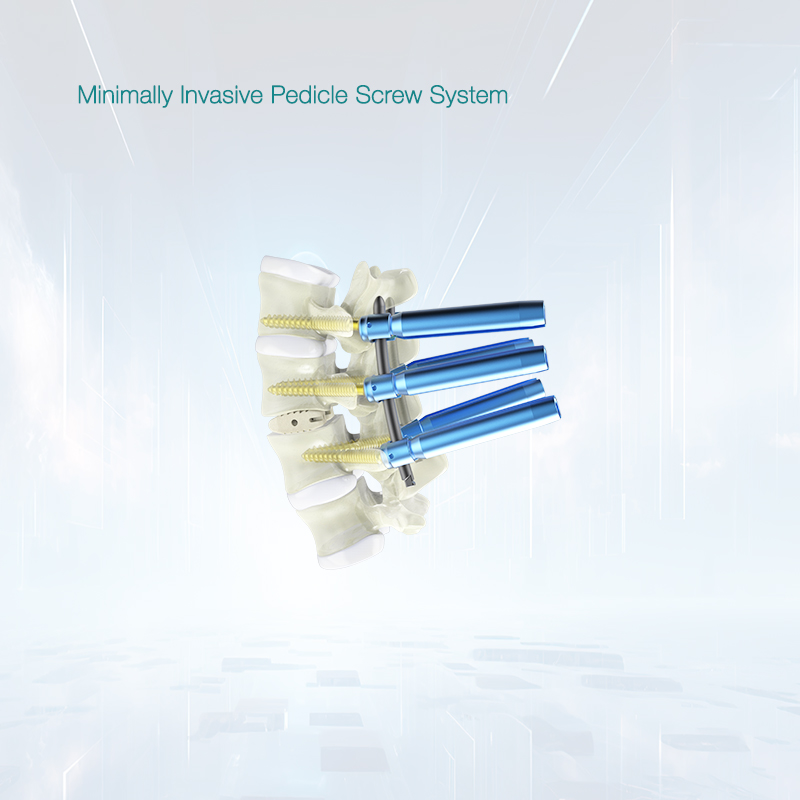

The Spinal Pedicle Screws is a medical implant system used in spinal surgery for stabilizing and fusing the spine. Minimally Invasive Pedicle Screw are indispensable key components in modern spinal surgery, playing a crucial role in the treatment of various spinal diseases. These pedicle screws are designed to provide stability and support to the spine, facilitate vertebral fusion, and enhance the overall structural integrity of the spine.
🔍 Product Showcase

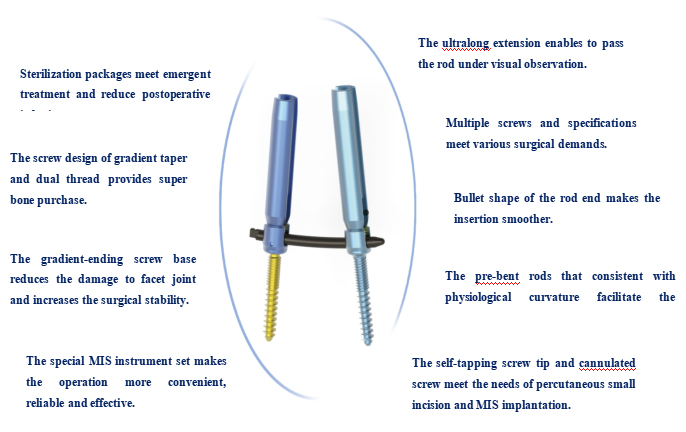

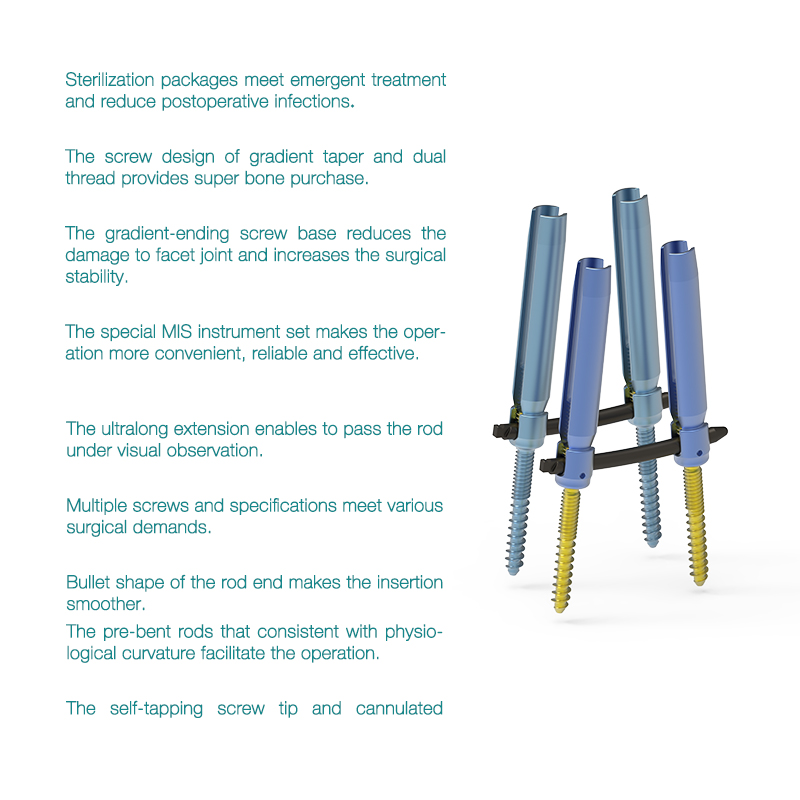

✔ Key Features & Clinical Advantages
●
Reduce infection rate & accelerate bone union
●
Shorten rehabilitation duration
●
Save operative preparation time, especially for emergencies
●
Guarantee 100% tracing back
●
Increase stock turnover rate
●
Reduce operating cost
●
Aligned with the global orthopedic industry development trend
🛠 Technical Design & Fixation

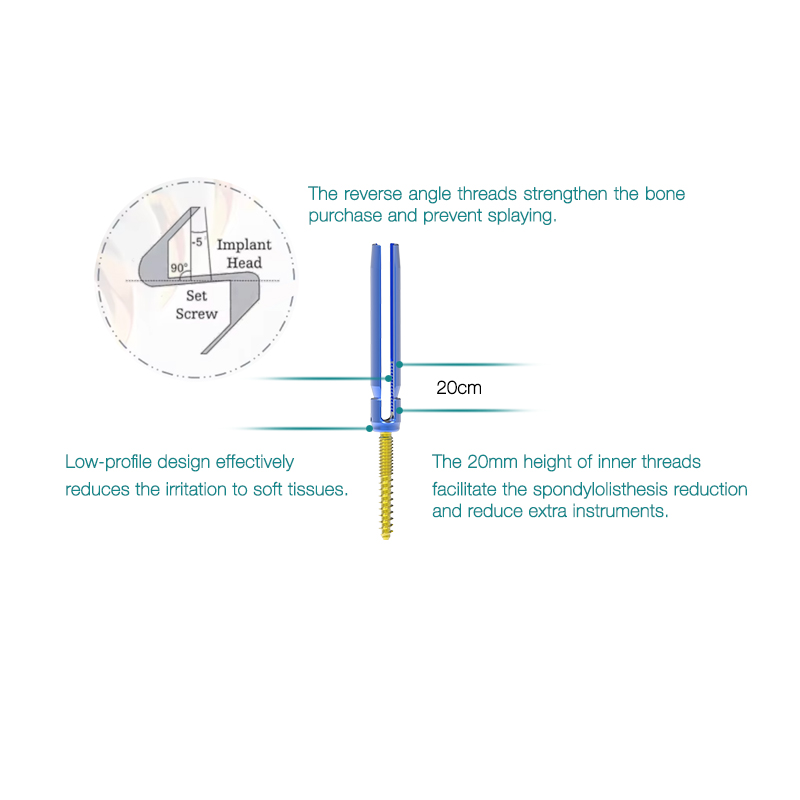

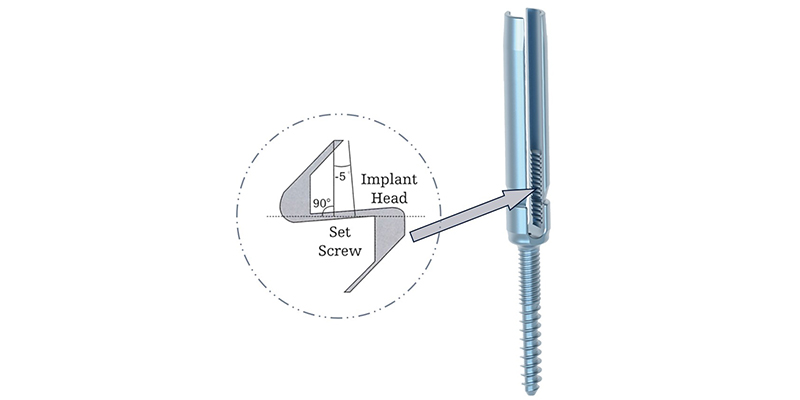

★ The reverse angle threads strengthen the bone purchase and prevent splaying.
📋 Indications & Contraindications
Indications:
✓ Spinal instability due to degenerative disc diseases
✓ Traumatic fracture or vertebral dislocation
✓ Spinal deformity and correction fixation
✓ Spinal stenosis with neurological symptoms, needing decompression fixation
Contraindications:
⚠ Spinal local or systemic infection
⚠ Severe osteoporosis
⚠ Cachexia constitution
🔬 Assembly & Application

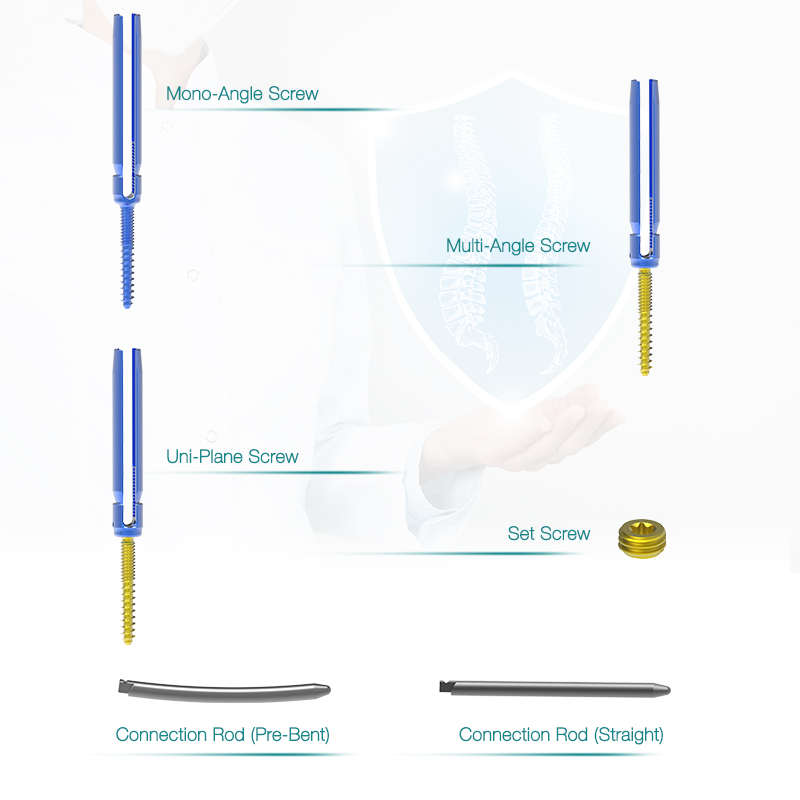

📊 System Specifications & Sizing Chart
| Product / Component | Available Dimensions / Specifications |
|---|---|
Zenith HE Mono-Angle Screw
|
Φ5.5 x 30mm |
| Φ5.5 x 35mm | |
| Φ5.5 x 40mm | |
| Φ5.5 x 45mm | |
| Φ6.0 x 40mm | |
| Φ6.0 x 45mm | |
| Φ6.0 x 50mm | |
| Φ6.5 x 35mm | |
| Φ6.5 x 40mm | |
| Φ6.5 x 45mm | |
| Φ6.5 x 50mm | |
| Φ7.0 x 35mm | |
| Φ7.0 x 40mm | |
| Φ7.0 x 45mm | |
| Φ7.0 x 50mm | |
| Φ7.0 x 55mm | |
Zenith HE Multi-Angle Screw
|
Φ5.5 x 35mm |
| Φ5.5 x 40mm | |
| Φ5.5 x 45mm | |
| Φ6.0 x 35mm | |
| Φ6.0 x 40mm | |
| Φ6.0 x 45mm | |
| Φ6.0 x 50mm | |
| Φ6.5 x 35mm | |
| Φ6.5 x 40mm | |
| Φ6.5 x 45mm | |
| Φ6.5 x 50mm | |
| Φ7.0 x 35mm | |
| Φ7.0 x 40mm | |
| Φ7.0 x 45mm | |
| Φ7.0 x 50mm | |
| Φ7.0 x 55mm | |
Zenith HE Uni-Plane Screw
|
Φ5.5 x 35mm |
| Φ5.5 x 40mm | |
| Φ5.5 x 45mm | |
| Φ6.0 x 35mm | |
| Φ6.0 x 40mm | |
| Φ6.0 x 45mm | |
| Φ6.0 x 50mm | |
| Φ6.5 x 35mm | |
| Φ6.5 x 40mm | |
| Φ6.5 x 45mm | |
| Φ6.5 x 50mm | |
| Φ7.0 x 35mm | |
| Φ7.0 x 40mm | |
| Φ7.0 x 45mm | |
| Φ7.0 x 50mm | |
| Φ7.0 x 55mm | |
MIS Connection Rod (Straight)
|
Φ5.5 x 40mm |
| Φ5.5 x 45mm | |
| Φ5.5 x 50mm | |
| Φ5.5 x 55mm | |
| Φ5.5 x 60mm | |
| Φ5.5 x 65mm | |
| Φ5.5 x 70mm | |
| Φ5.5 x 75mm | |
| Φ5.5 x 80mm | |
| Φ5.5 x 85mm | |
| Φ5.5 x 90mm | |
| Φ5.5 x 95mm | |
| Φ5.5 x 100mm | |
| Φ5.5 x 105mm | |
| Φ5.5 x 110mm | |
| Φ5.5 x 115mm | |
| Φ5.5 x 120mm | |
| Φ5.5 x 125mm | |
| Φ5.5 x 130mm | |
| Φ5.5 x 135mm | |
| Φ5.5 x 140mm | |
| Φ5.5 x 145mm | |
| Φ5.5 x 150mm | |
| Φ5.5 x 155mm | |
| Φ5.5 x 160mm | |
| Φ5.5 x 165mm | |
| Φ5.5 x 170mm | |
| Φ5.5 x 180mm | |
| Φ5.5 x 190mm | |
| Φ5.5 x 200mm | |
MIS Connection Rod (Pre-Bent)
|
Φ5.5 x 40mm |
| Φ5.5 x 45mm | |
| Φ5.5 x 50mm | |
| Φ5.5 x 55mm | |
| Φ5.5 x 60mm | |
| Φ5.5 x 65mm | |
| Φ5.5 x 70mm | |
| Φ5.5 x 75mm | |
| Φ5.5 x 80mm | |
| Φ5.5 x 85mm | |
| Φ5.5 x 90mm | |
| Φ5.5 x 95mm | |
| Φ5.5 x 100mm | |
| Φ5.5 x 105mm | |
| Φ5.5 x 110mm | |
| Φ5.5 x 115mm | |
| Φ5.5 x 120mm | |
| Φ5.5 x 125mm | |
| Φ5.5 x 130mm | |
| Φ5.5 x 135mm | |
| Φ5.5 x 140mm | |
| Material | Titanium Alloy |
| Surface Treatment | Micro-arc Oxidation |
| Qualification | CE / ISO13485 / NMPA |
| Package | Sterile Packaging 1pcs/package |
| MOQ | 1 Pcs |
| Supply Ability | 5000+ Pieces per Month |
❓ Frequently Asked Questions (FAQ)
Q: What is the primary material used for the Zenith HE system?
The entire system is fabricated from high-grade Titanium Alloy, which has undergone Micro-arc Oxidation surface treatment to enhance biocompatibility and bone purchase.

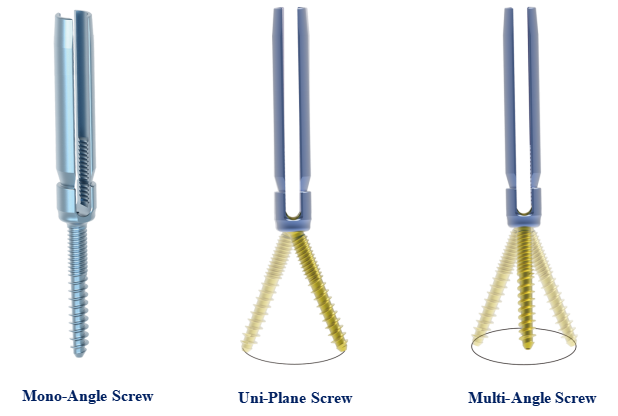

Q: What types of screws are available in the Zenith HE series?
The series provides Mono-Angle Screws, Multi-Angle Screws, and Uni-Plane Screws in various diameters (Φ5.5, Φ6.0, Φ6.5, Φ7.0) to cater to different anatomical and surgical requirements.
Q: What are the packaging and sterility conditions of the implants?
All components are individually packed in sterile packaging (1 pcs/package), ready for immediate surgical intervention, reducing preparation time and infection risks.
Q: What certifications do these spinal implants hold?
The system complies with global medical standards and is certified under CE, ISO13485, and NMPA specifications.
Q: What is the benefit of the reverse angle thread design?
The reverse angle threads enhance structural purchase into the bone, minimize mechanical splaying, and ensure long-term fixation stability.
Q: What is the minimum order quantity (MOQ) and production capacity?
The minimum order quantity is 1 piece, and the regular manufacturing supply ability exceeds 5,000 pieces per month.
