Product Description
| Product Code | Product Name | Specification | Quantity |
|---|---|---|---|
| 12010200 | ZP Cage Trial Spacer | 5 | 1 |
| 12010201 | ZP Cage Trial Spacer | 6 | 1 |
| 12010202 | ZP Cage Trial Spacer | 7 | 1 |
| 12010203 | ZP Cage Trial Spacer | 8 | 1 |
| 12010204 | ZP Cage Trial Spacer | 9 | 1 |
| 12010205 | ZP Cage Trial Spacer | 10 | 1 |
| 12010206 | Handle for Trial Spacer | Large | 1 |
| 12010207 | Drill Guide | - | 1 |
| 12010208 | Ball-tip Impactor | - | 1 |
| 12010209 | Trial Module | - | 1 |
| 12010210 | Implant Holder | - | 1 |
| 12010211 | Aiming Device | - | 1 |
| 12010212 | Flat Impactor | - | 1 |
| 12010213 | Cancellous Bone Impactor | - | 1 |
| 12010214 | Distracting Screw Holder | - | 1 |
| 12010215 | Distracting Screw | - | 2 |
| 12010216 | Mallet | - | 1 |
| 12010217 | Drill Bit | Ф2.0 x 12mm | 2 |
| 12010218 | Drill Bit | Ф2.0 x 14mm | 2 |
| 12010219 | Drill Bit | Ф2.0 x 16mm | 2 |
| 12010231 | Drill Bit | Ф2.0 x 18mm | 2 |
| 12010220 | Screwdriver Shaft | T8 (Self-holding) | 2 |
| 12010221 | Torque Limiter | 1.2Nm | 1 |
| 12010222 | Counter Torque | - | 1 |
| 12010223 | Screwdriver Sleeve | - | 1 |
| 12010224 | Quick-Coupling Handle | Small | 1 |
| 12010225 | Angled Screwdriver | - | 1 |
| 12010226 | Cervical Distractor | - | 1 |
| 12010227 | Straight Awl | Ф2 | 1 |
| 12010228 | Angled Awl | Ф2 | 1 |
| 12010229 | Holding Sleeve | - | 1 |
| 12010230 | Drill Guide with Handle | - | 1 |
| 93340000B | Instrument Box | - | 1 |

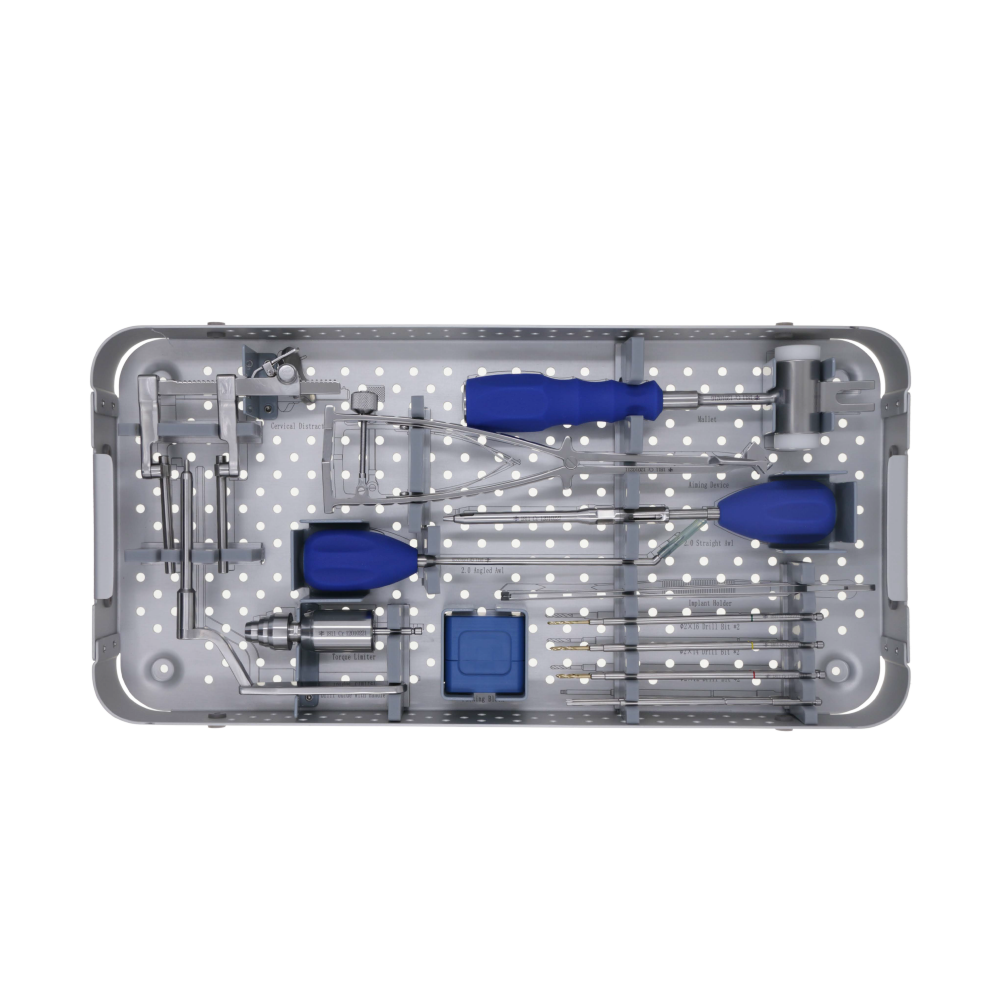

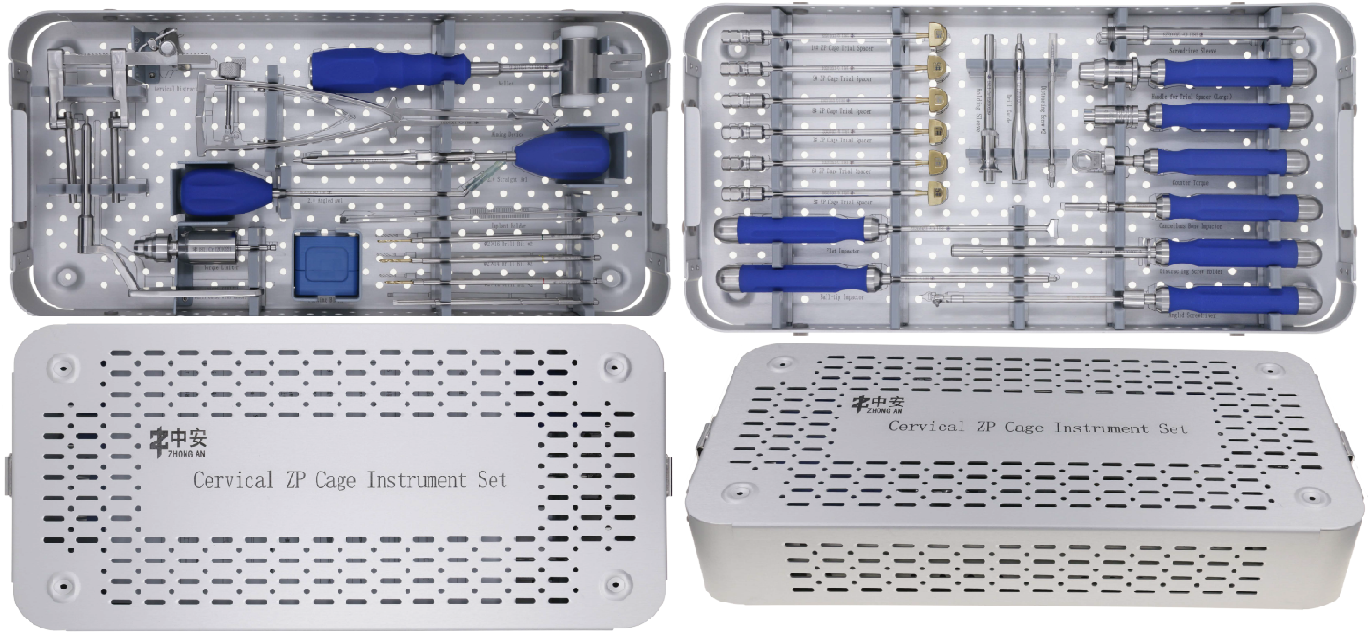

This instrument set is specifically engineered for anterior cervical discectomy and fusion (ACDF) procedures, facilitating disc space preparation, trial sizing, cage insertion, and precise screw placement.

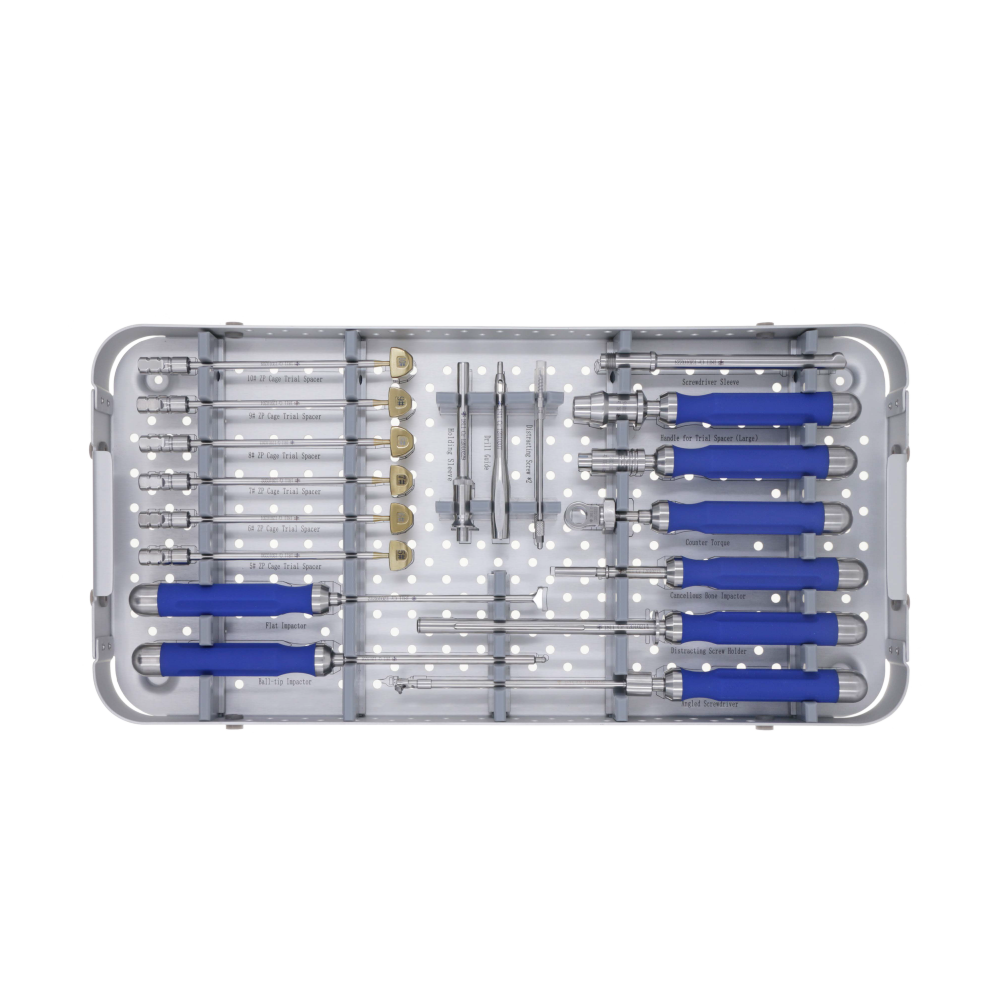

The set includes trial spacers ranging continuously from size 5 through size 10, allowing surgeons to accurately evaluate disc space height before final implant placement.
The set provides Ф2.0mm drill bits in four distinct working lengths: 12mm, 14mm, 16mm, and 18mm, with two units included for each size.
Yes, it comes equipped with a calibrated 1.2Nm Torque Limiter and Counter Torque to ensure secure, controlled fixation without the risk of over-tightening or stripping screws.

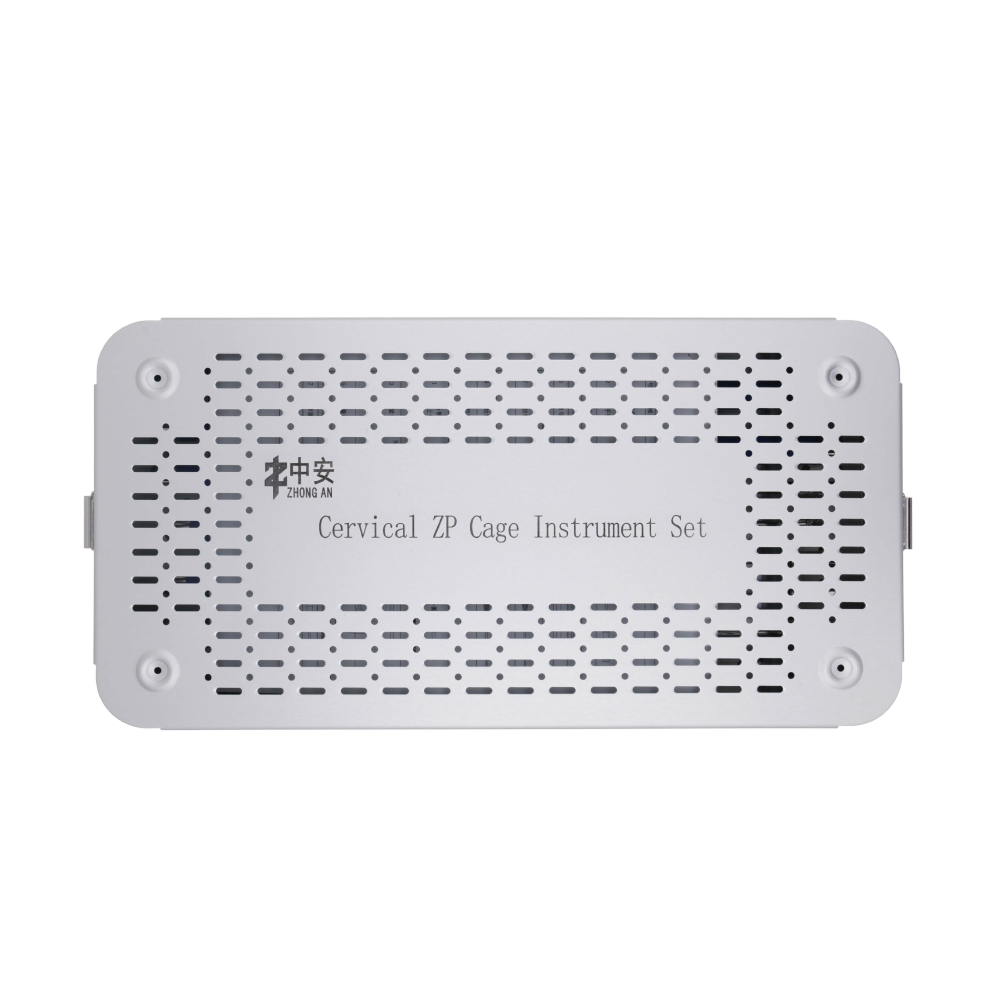

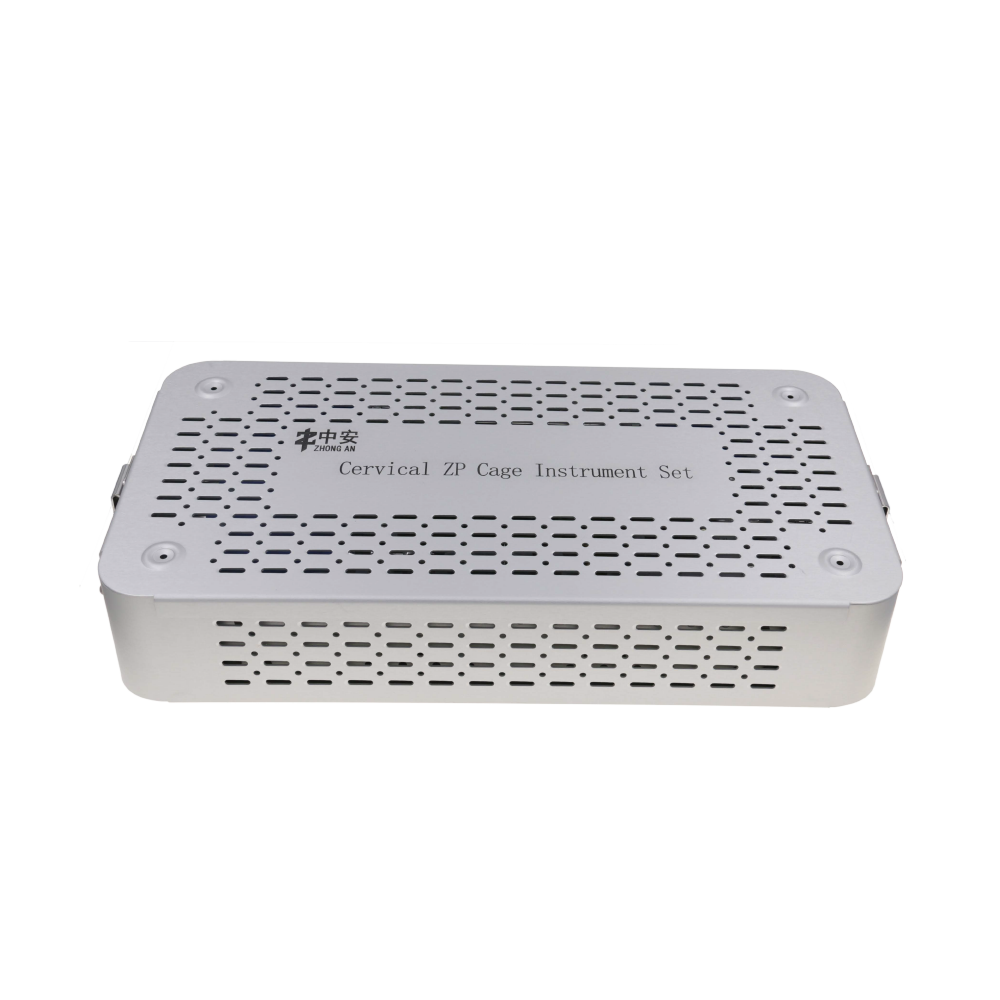

All instruments are housed in a dedicated autoclavable Instrument Box (Item Code: 93340000B), designed for organized storage, hospital sterilization workflows, and ergonomic intraoperative access.
Yes, the set includes both straight and angled options—such as the Straight Awl (Ф2), Angled Awl (Ф2), and Angled Screwdriver—to facilitate visualization and access across diverse cervical levels.
