OEM Shoulder Arthroscopy Instrument set Supplier, Product
Product Description
Introduction of Shoulder Arthroscopy Instrument Set
Shoulder arthroscopy instrument set is a minimally invasive surgical procedure that helps orthopedic surgeons diagnose and treat various shoulder diseases.
A typical shoulder arthroscopy instrument set includes multiple instruments, such as arthroscopy. Arthroscopy is a slender tubular device with a camera and light source. It allows the surgeon to view the interior of the shoulder joint on a monitor, clearly displaying the structures involved. The instrument set also includes various graspers, razors, and scissors, each with a specific purpose, such as removing damaged tissue, repairing ligaments, or polishing bone surfaces.

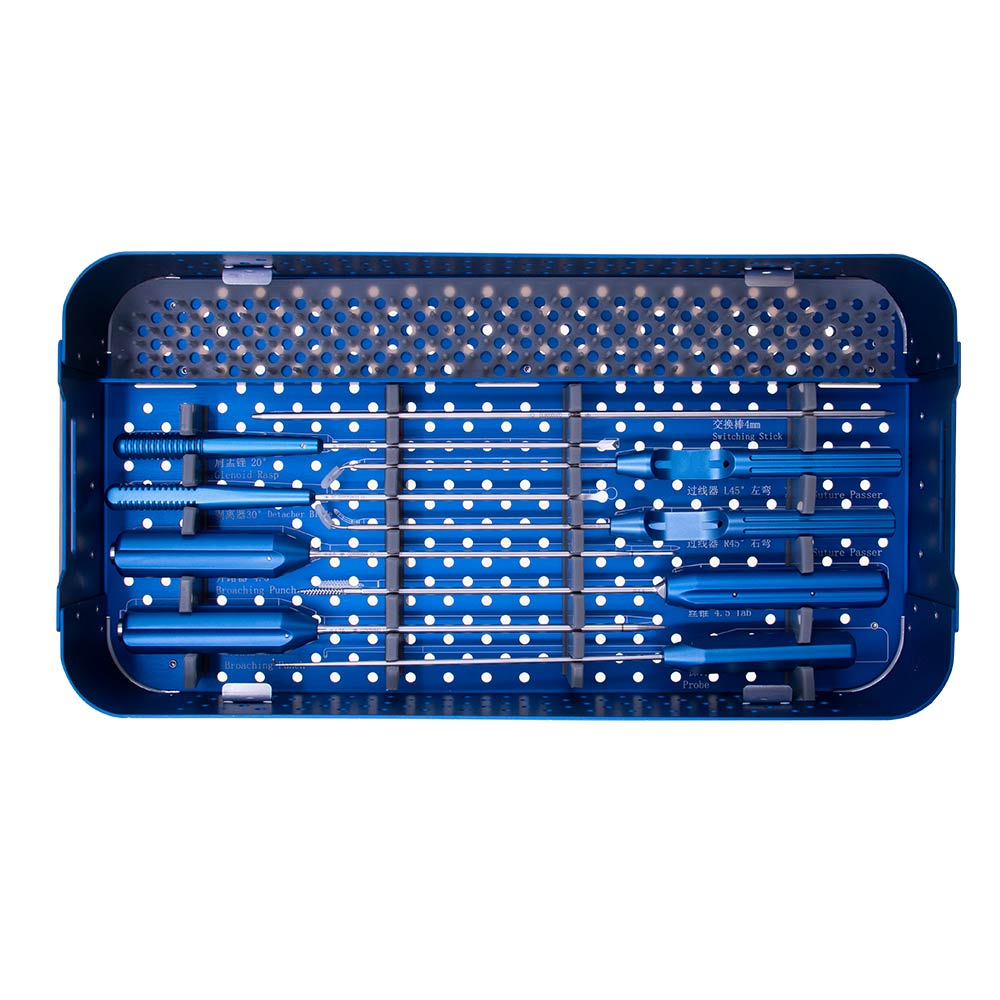

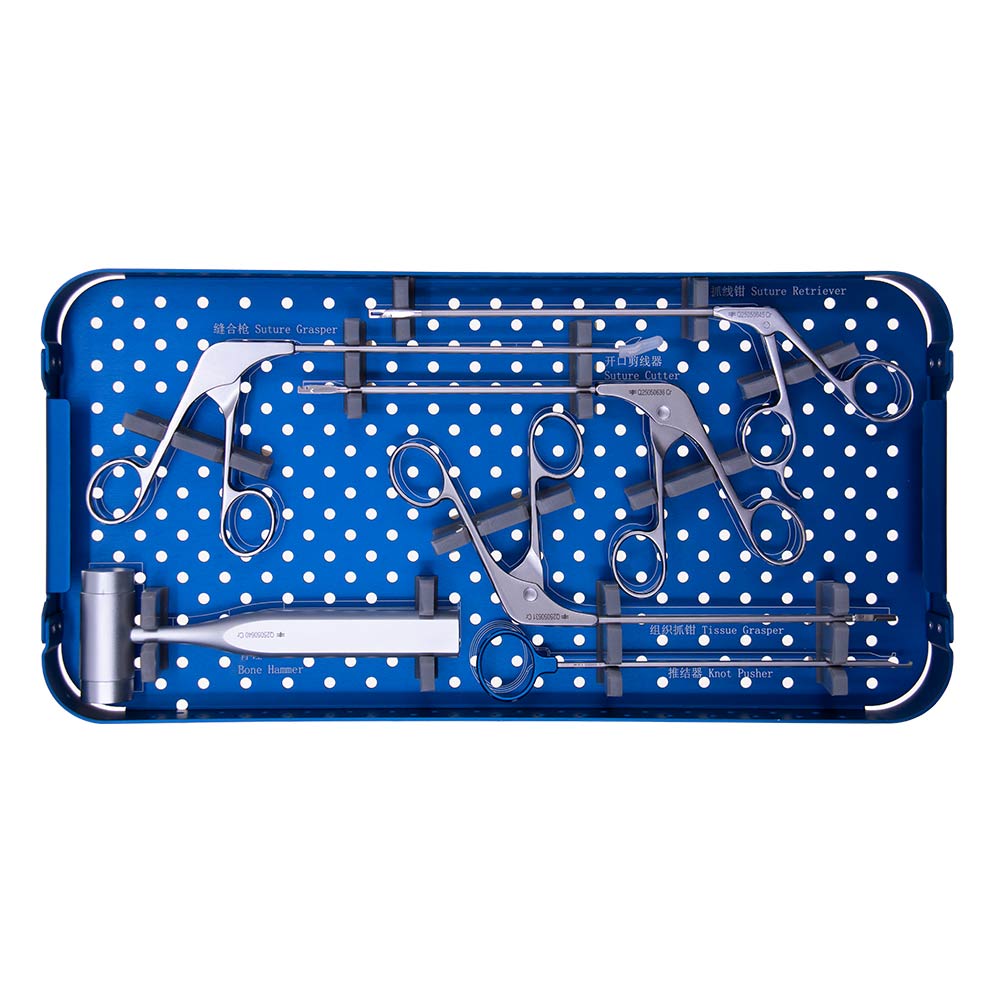

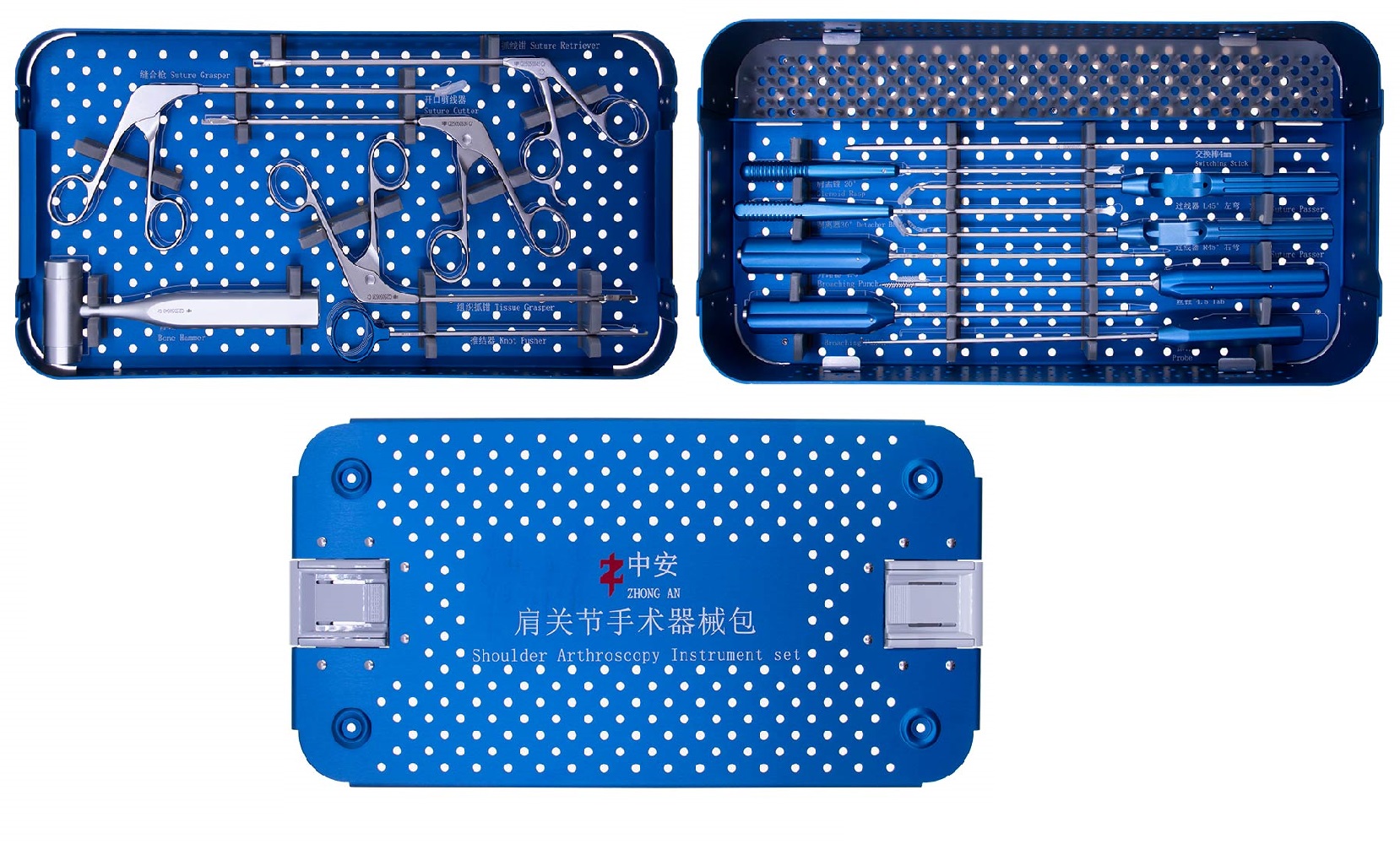

| Shoulder Arthroscopy Instrument Set (Item No: 31.C.03.03.01.000003) | |||
|---|---|---|---|
| No. | English Name | Quantity | Specification |
| 1 | Suture Retriever | 1 | - |
| 2 | Tissue Grasper | 1 | - |
| 3 | Suture Grasper | 1 | - |
| 4 | Suture Cutter | 1 | - |
| 5 | Bone Hammer | 1 | - |
| 6 | Switching Stick φ4.0mm | 1 | φ4 |
| 7 | Knot Pusher | 1 | φ1.4 |
| 8 | Probe | 1 | Length: 165mm |
| 9 | Suture Passer L45° | 1 | Left Curved 45° |
| 10 | Suture Passer R45° | 1 | Right Curved 45° |
| 11 | Detacher Blade 30° | 1 | 30° |
| 12 | Glenoid Rasp 20° | 1 | 20° |
| 13 | Tab 4.5 | 1 | 4.5 |
| 14 | Broaching Punch 4.5 | 1 | 4.5 |
| 15 | Broaching Punch 4.75 | 1 | 4.75 |

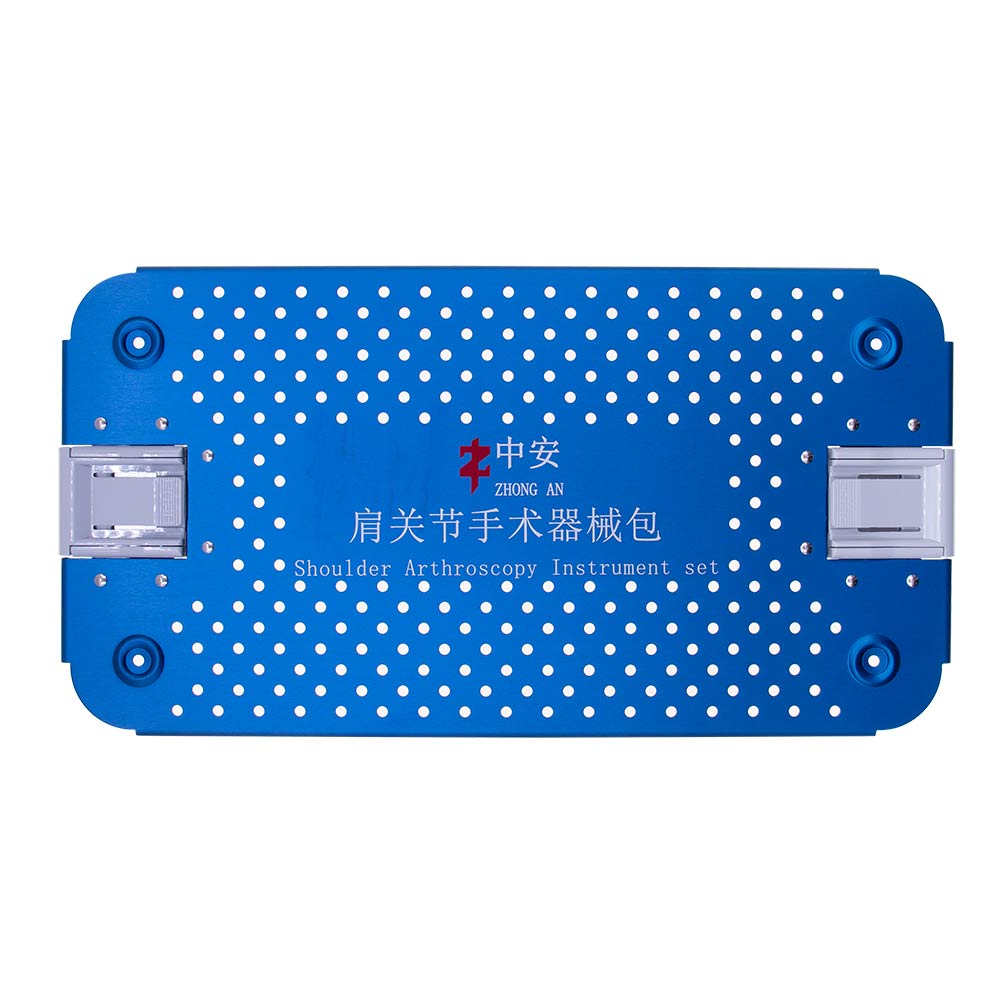

| 16 | Instrument Box | 1 | - |
Frequently Asked Questions
Q: What is the primary use of the Shoulder Arthroscopy Instrument Set?
It is designed for minimally invasive orthopedic procedures to diagnose and treat various shoulder conditions, such as rotator cuff tears, labral repairs, and joint impingement.
Q: What is the function of the Suture Passer (L45° and R45°)?
The curved suture passers (left and right 45°) are specialized for maneuvering and passing sutures through thick soft tissues, like the rotator cuff or labrum, in tight anatomical angles within the shoulder joint.
Q: Why are different sizes of Broaching Punches (4.5 and 4.75) included?
Different sized punches allow surgeons to accurately prepare bone sockets matching specific suture anchor diameters, ensuring optimal fixations based on individual patient anatomy.
Q: Are these instruments autoclavable and reusable?
Yes, medical-grade arthroscopy instruments and the dedicated instrument box are designed to withstand standard hospital sterilization protocols, including steam autoclaving.
Q: What role does the Switching Stick play during surgery?
The φ4.0mm switching stick acts as a guide to maintain portal pathways into the joint cavity, allowing seamless exchange of cannulas and instruments without losing the surgical access channel.
