Product Description
Surgical Instrument Set

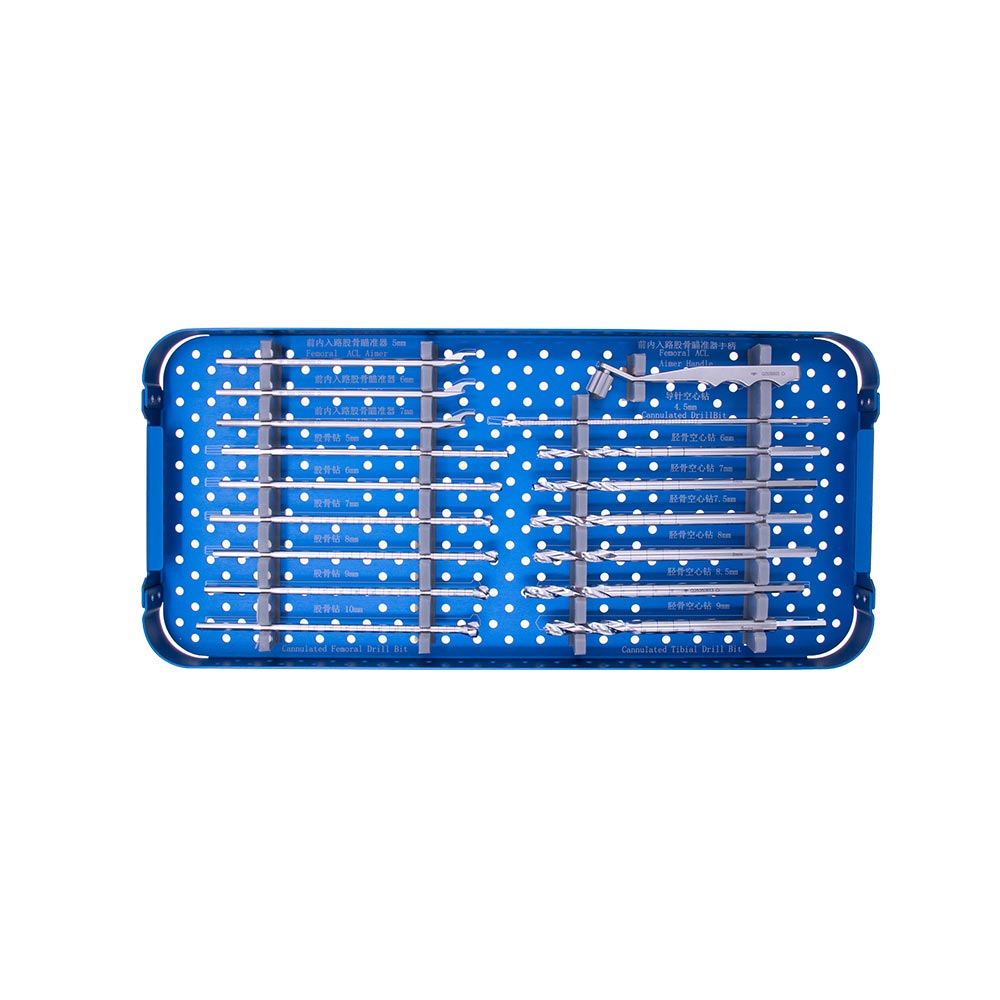

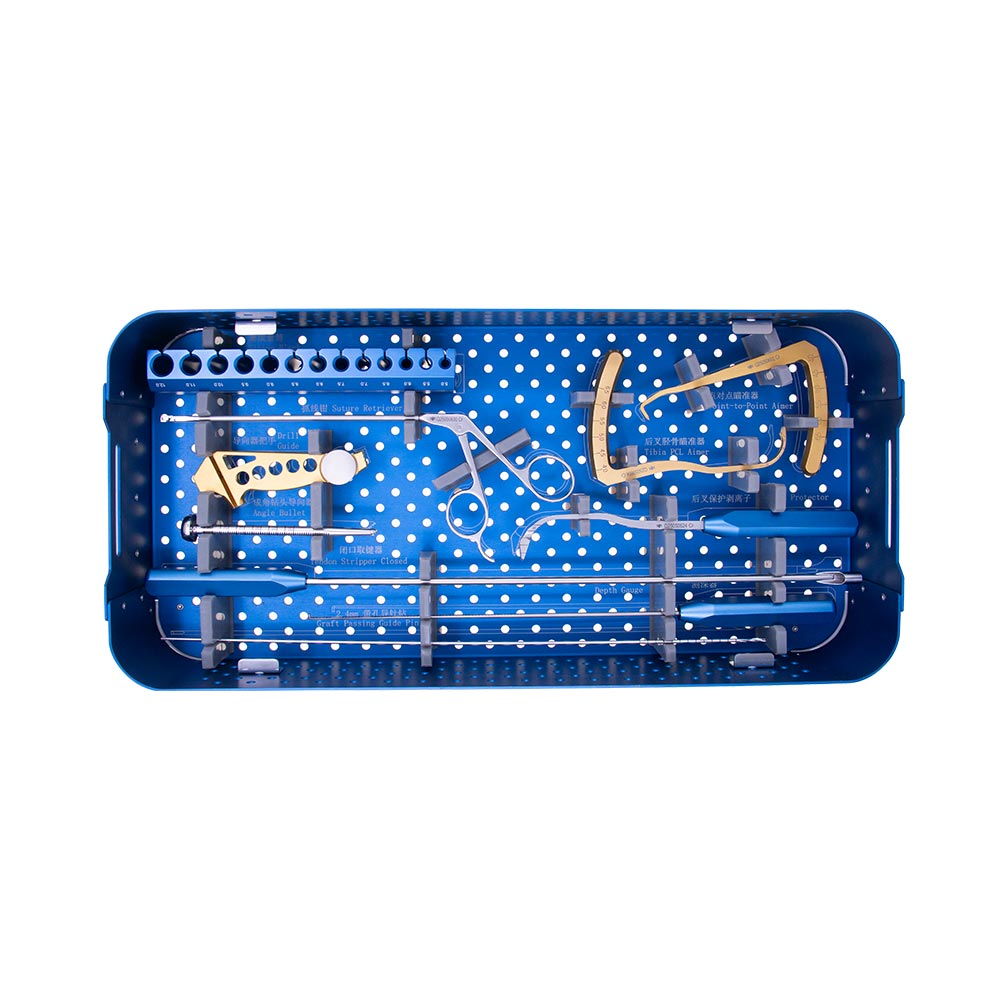

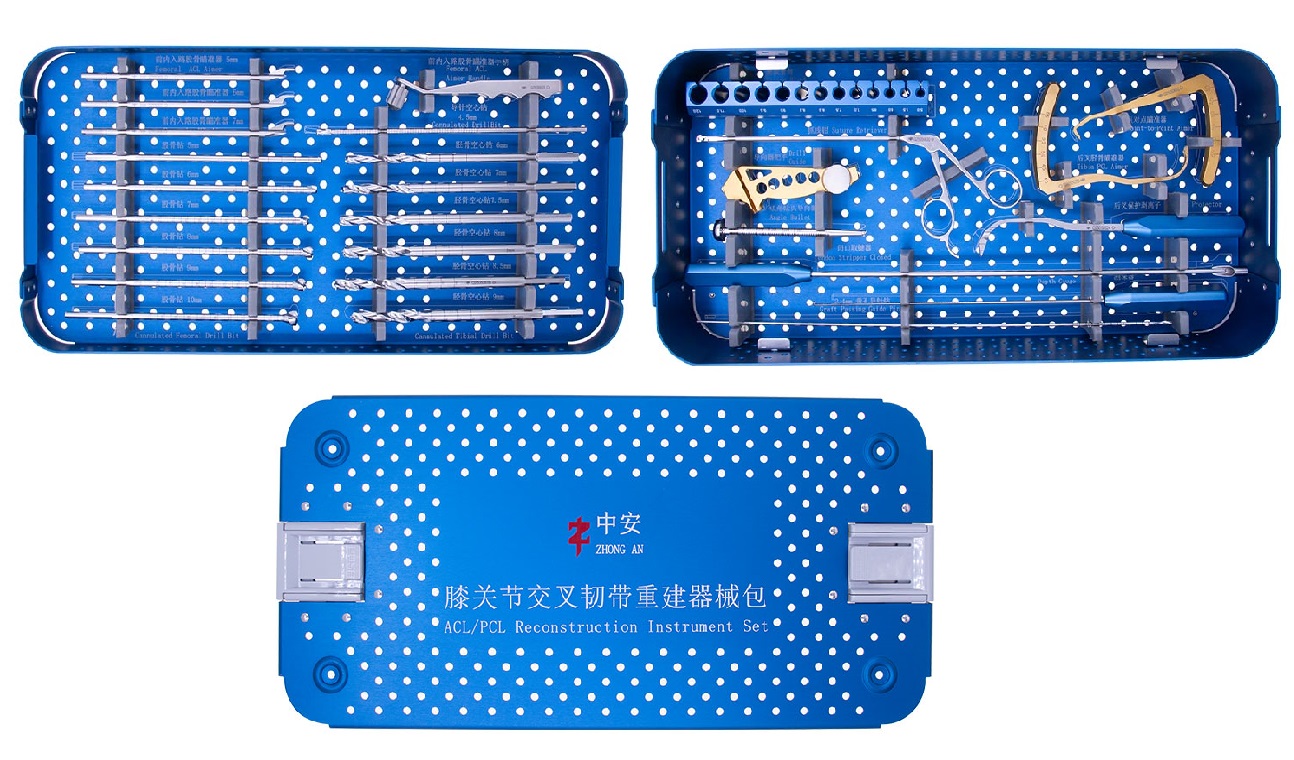

ACL/PCL Reconstruction Instrument Set
| No. | English Name | Quantity | Specification |
|---|---|---|---|
| 1 | Tendon Stripper Closed | 1 | - |
| 2 | Sizing Block | 1 | - |
| 3 | Femoral ACL Aimer Handle | 1 | - |
| 4 | Femoral ACL Aimer | 1 | 5mm |
| 5 | Femoral ACL Aimer | 1 | 6mm |
| 6 | Femoral ACL Aimer | 1 | 7mm |
| 7 | Graft Passing Guide Pin φ2.4 | 2 | φ2.4 |
| 8 | Cannulated Drill Bit φ4.5 | 1 | φ4.5 |
| 9 | Cannulated Femoral Drill Bit φ5 | 1 | φ5 |
| 10 | Cannulated Femoral Drill Bit φ6 | 1 | φ6 |
| 11 | Cannulated Femoral Drill Bit φ7 | 1 | φ7 |
| 12 | Cannulated Femoral Drill Bit φ8 | 1 | φ8 |
| 13 | Cannulated Femoral Drill Bit φ9 | 1 | φ9 |
| 14 | Cannulated Femoral Drill Bit φ10 | 1 | φ10 |
| 15 | Cannulated Tibial Drill Bit φ6 | 1 | φ6 |
| 16 | Cannulated Tibial Drill Bit φ7 | 1 | φ7 |
| 17 | Cannulated Tibial Drill Bit φ7.5 | 1 | φ7.5 |
| 18 | Cannulated Tibial Drill Bit φ8 | 1 | φ8 |
| 19 | Cannulated Tibial Drill Bit φ8.5 | 1 | φ8.5 |
| 20 | Cannulated Tibial Drill Bit φ9 | 1 | φ9 |
| 21 | Drill Guide | 1 | - |
| 22 | Depth Gauge | 1 | - |
| 23 | Angle Bullet | 1 | - |
| 24 | Point-to-Point Aimer | 1 | - |
| 25 | Tibia PCL Aimer | 1 | - |
| 26 | PCL Protector | 1 | - |
| 27 | Suture Retriever | 1 | - |
| 28 | Instrument Box | 1 | - |
Frequently Asked Questions
What is the primary surgical application of this instrument set?
This set is specifically designed for arthroscopic anterior cruciate ligament (ACL) and posterior cruciate ligament (PCL) reconstruction procedures, providing precision aiming, tunnel drilling, and graft handling tools.
What drill bit diameters are provided in the kit?
The set contains a φ4.5 cannulated drill bit, femoral cannulated drill bits ranging from φ5 to φ10, and tibial cannulated drill bits ranging from φ6 to φ9 (including half-sizes φ7.5 and φ8.5) to accommodate varying graft dimensions.
Are the instruments autoclavable and reusable?
Yes, all instruments are manufactured from high-grade medical stainless steel and biocompatible materials capable of undergoing standard repeated autoclave steam sterilization cycles.
Does the set include specialized instruments for PCL reconstruction?
Yes, it includes specialized components dedicated to posterior cruciate reconstruction, such as the Tibia PCL Aimer and the PCL Protector to ensure neurovascular safety during drilling.

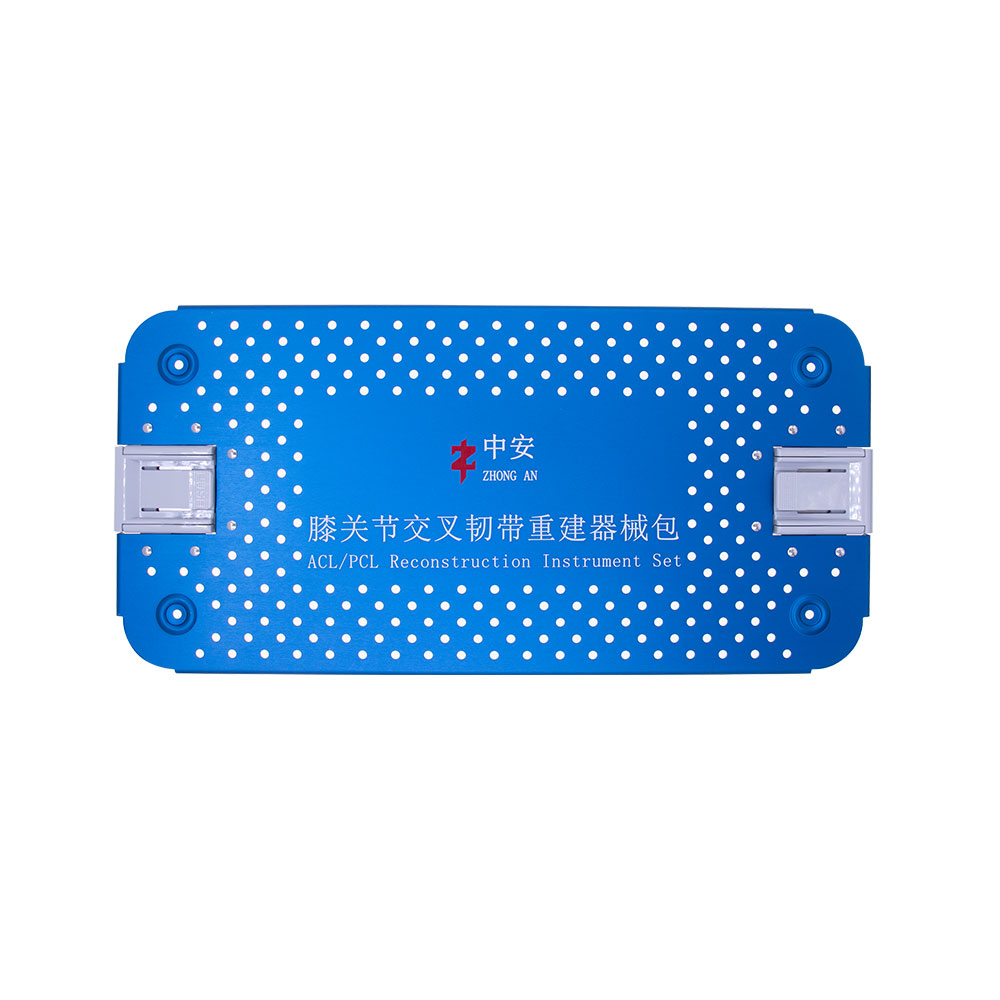

Is a dedicated sterilization box included?
Yes, the configuration includes a fitted Instrument Box designed for safe storage, organized surgical presentation, and optimal penetration during sterilization.
