One standout feature of the system is the Metacarpal Neck Locking Plate, specifically designed to provide fixation for metacarpal neck fractures. This plate features three distally pointing converging screws, offering enhanced stability and securing the metacarpal head effectively. This design ensures optimal alignment and function, allowing patients to regain full hand function and mobility.
For diaphyseal fractures, the Curved Phalanx Locking Plate is the ideal solution, particularly when a medial or lateral approach is preferred. This plate is designed to provide excellent fixation for these types of fractures, enabling proper bone alignment and stability. The curved shape of the plate allows for easy insertion and placement, ensuring a seamless surgical experience.

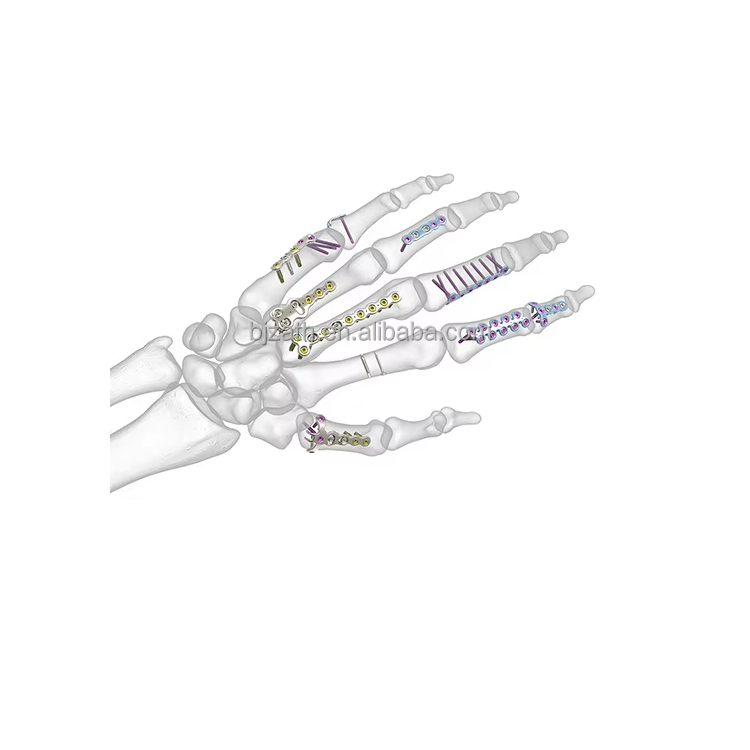

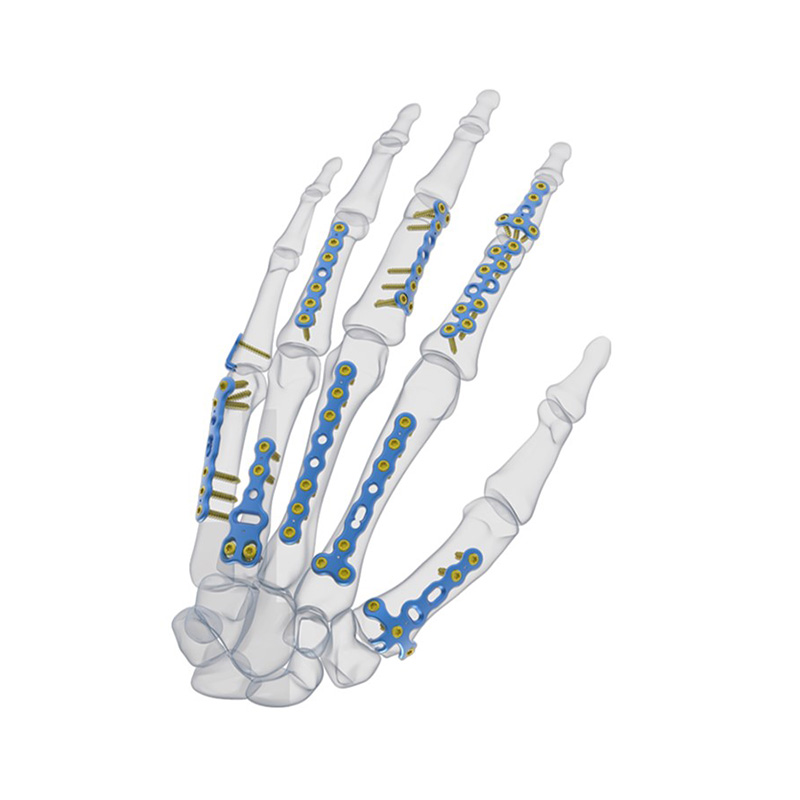

One notable advantage of the Hand Fracture Locking Plate System is the ability to address rotational stability. This is particularly crucial in cases where hand fractures involve rotational displacement. With this system, patients can benefit from enhanced rotational stability, supporting proper bone healing and minimizing the risk of complications.

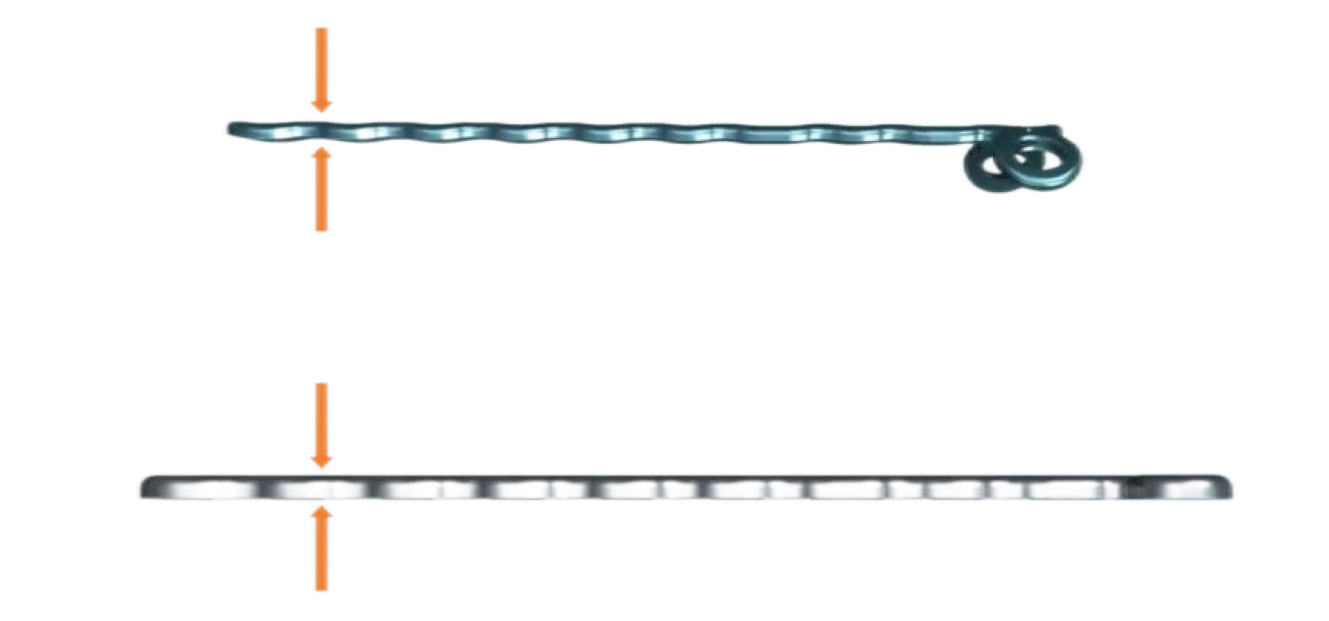

The Rotational Correction Locking Plate is designed to be used with an osteotomy for correcting rotational malunions. The system offers two plate thickness for phalanx and metacarpal respectively. Low-profile plates are designed to minimize soft tissue irritation.

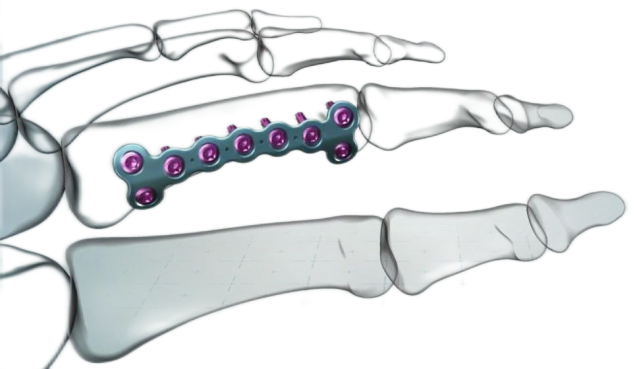

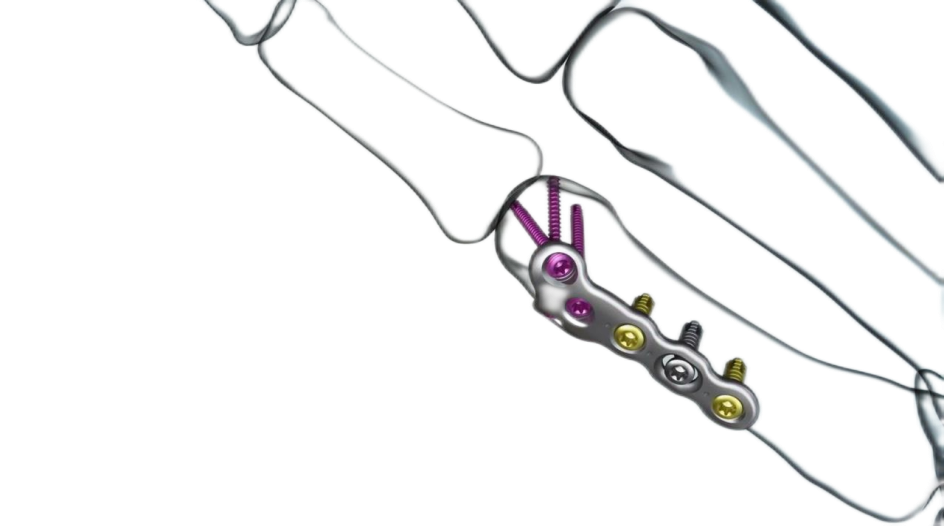

The Metacarpal Neck Locking Plate is designed to provide fixation for metacarpal neck fractures, and has three distally pointing converging screws to provide metacarpal head fixation.

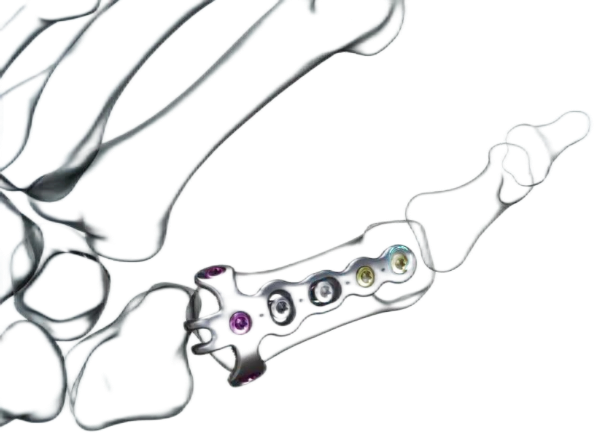

The Curved Phalanx Locking Plate is designed for diaphyseal fractures when a medial or lateral approach is preferred.

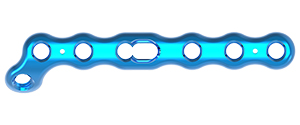

The Rolando Fracture Hook Locking Plate is designed to treat a Y- or T-shaped fracture pattern at the base of the first metacarpal.
| Plate Design & Profile | Specifications / Options |
|---|---|
Phalanx Offset Locking Plate
|
6 holes x 22.5mm 8 holes x 29.5mm 10 holes x 36.5mm |
Straight Phalanx Locking Plate
|
4 holes x 20mm 5 holes x 25mm 6 holes x 30mm 7 holes x 35mm |
Curved Phalanx Locking Plate
|
3 holes x 25.4mm 4 holes x 30.4mm 5 holes x 35.4mm |

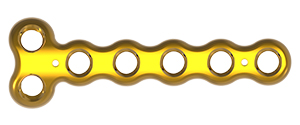

T-Shape Phalanx Locking Plate
|
4 holes x 20mm 5 holes x 25mm 6 holes x 30mm 7 holes x 35mm |
Y-Shape Phalanx Locking Plate
|
3 holes x 20mm 4 holes x 25mm 5 holes x 30mm 6 holes x 35mm |
L-Shape Phalanx Locking Plate
|
Left: 4h x 17.5mm, 5h x 22.5mm, 6h x 27.5mm, 7h x 32.5mm Right: 4h x 17.5mm, 5h x 22.5mm, 6h x 27.5mm, 7h x 32.5mm |
Straight Metacarpal Locking Plate
|
5 holes x 29.5mm 6 holes x 35.5mm 7 holes x 41.5mm 8 holes x 47.5mm 9 holes x 53.5mm 10 holes x 59.5mm |
Metacarpal Neck Locking Plate
|
Left: 4h x 28mm, 5h x 33mm, 6h x 38mm Right: 4h x 28mm, 5h x 33mm, 6h x 38mm |
Y-Shape Metacarpal Locking Plate
|
4 holes x 33mm 5 holes x 39mm 6 holes x 45mm 7 holes x 51mm 8 holes x 57mm |
L-Shape Metacarpal Locking Plate
|
Left: 5h x 29.5mm, 6h x 35.5mm, 7h x 41.5mm Right: 5h x 29.5mm, 6h x 35.5mm, 7h x 41.5mm |

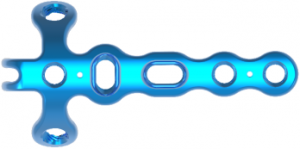

Rotational Correction Locking Plate
|
6 holes x 32.5mm |
Rolando Fracture Hook Locking Plate
|
4 holes x 35mm |
| System Technical Data & Supply Information | |
|---|---|
| Width | Phalanx Plate: 10.0mm | Metacarpal Plate: 1.2mm |
| Thickness | Phalanx Plate: 5.0mm | Metacarpal Plate: 5.5mm |
| Matching Screw | 2.0 Locking Screw |
| Material | Titanium |
| Surface Treatment | Micro-arc Oxidation |
| Qualification | CE / ISO13485 / NMPA |
| Package | Sterile Packaging 1pcs/package |
| MOQ | 1 Pcs |
| Supply Ability | 1000+ Pieces per Month |
