OEM Surgical Hospital Use InterZan Titanium Interlocking Nail for Femur Supplier, Factories
Product Description
What is Interzan Intramedullary nail?

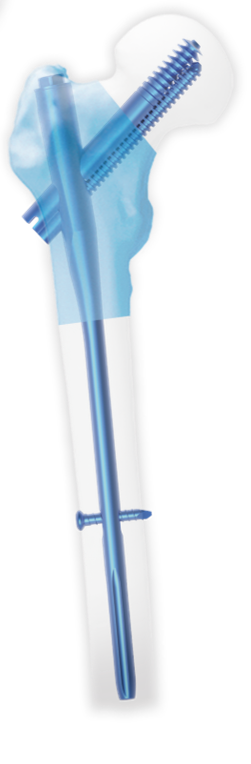

Intramedullary nail is a surgical procedure for repairing fractures and maintaining their stability. The most common bones fixed in this way are the thigh, tibia, hip joint, and upper arm. A permanent nail or rod is placed at the center of the bone. It will help you put weight on the bones.

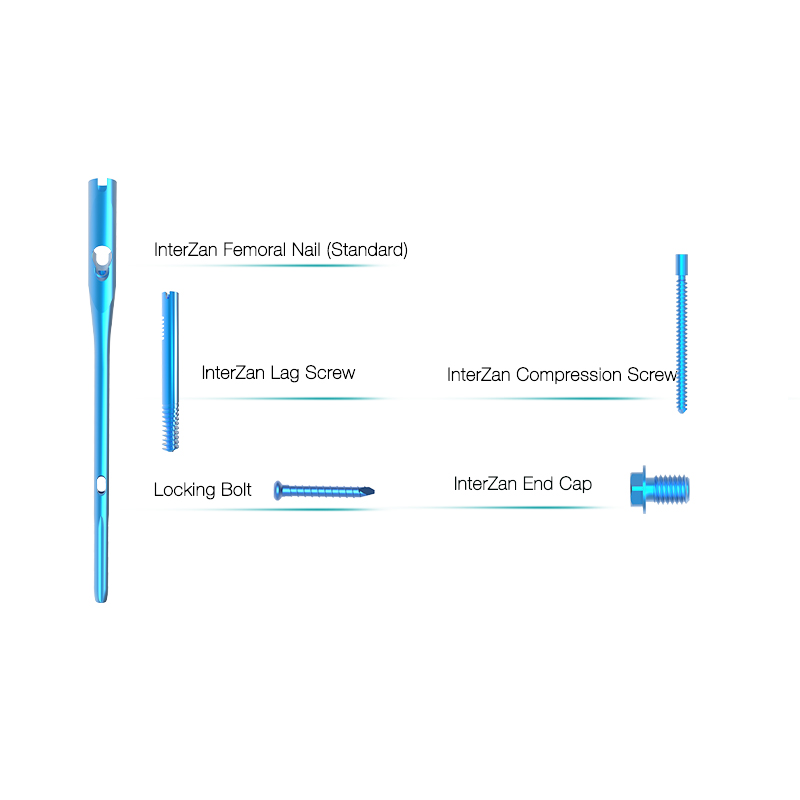

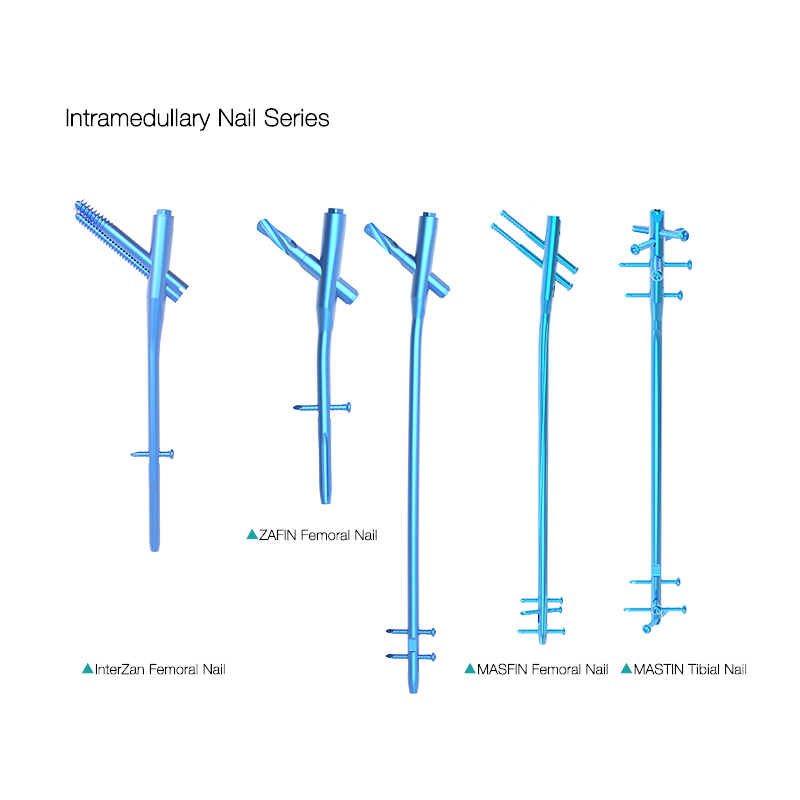

It consists of Femoral Nail, lag Screw, compression screw, end cap, locking bolt.
Intramedullary nail is a surgical procedure for repairing fractures and maintaining their stability. The most common bones fixed in this way are the thigh, tibia, hip joint, and upper arm. A permanent nail or rod is placed at the center of the bone. It will help you put weight on the bones.
It consists of Femoral Nail, lag Screw, compression screw, end cap, locking bolt.
Indications & Clinical Application
The InterZan Femoral Nail is indicated for fractures of the femur including simple shaft fractures, comminuted shaft fractures, spiral shaft fractures, long oblique shaft fractures and segmental shaft fractures; subtrochanteric fractures; intertrochanteric fractures; ipsilateral femoral shaft/neck fractures; intracapsular fractures; nonunions and malunions; polytrauma and multiple fractures; prophylactic nailing of impending pathologic fractures; reconstruction, following tumor resection and grafting; bone lengthening and shortening.

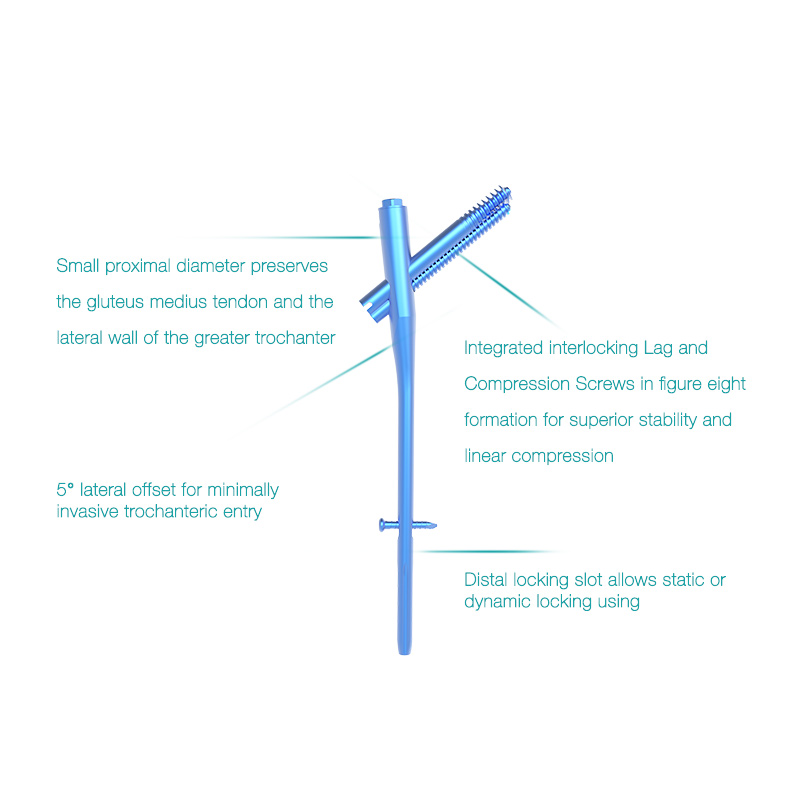

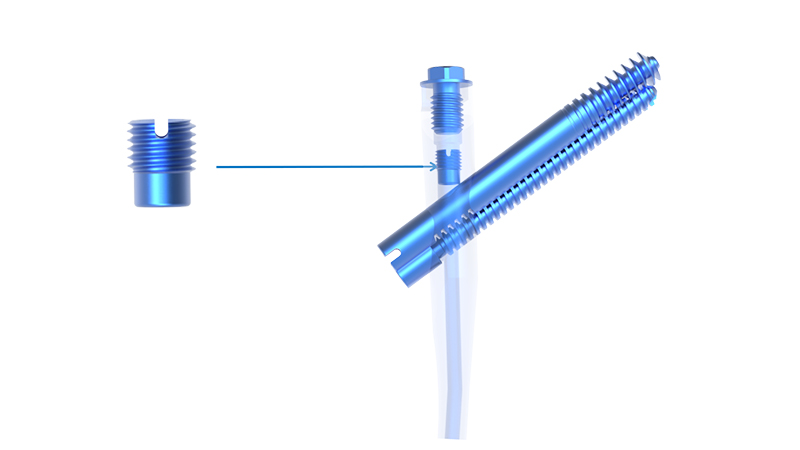

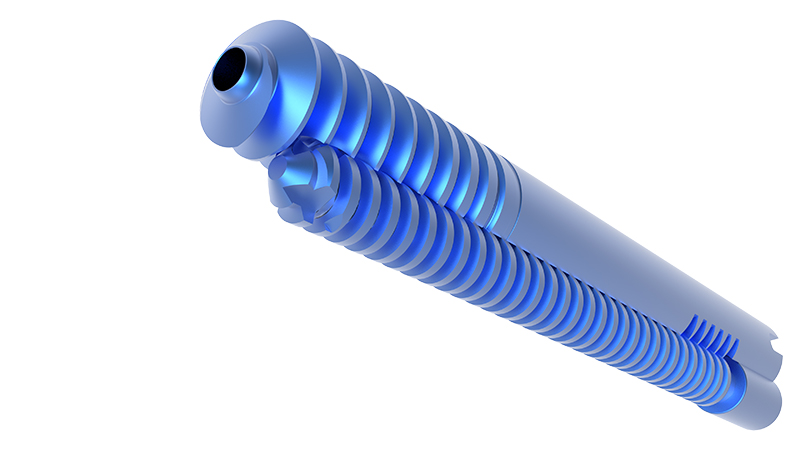

Mechanical Advantage: Preloaded Cannulated Set Screw allows for creation of a fixed angle device or facilitates postoperative sliding. The integrated compression screw and lag screw thread together to generate push/pull forces that hold compression after instruments are removed and eliminate Z-effect.
Product Specifications & Component Details
InterZan Femur Intramedullary Nail |
Φ9.0 x 180 mm, Φ9.0 x 200 mm, Φ9.0 x 240 mm Φ10.0 x 180 mm, Φ10.0 x 200 mm, Φ10.0 x 240 mm Φ11.0 x 180 mm, Φ11.0 x 200 mm, Φ11.0 x 240 mm Φ12.0 x 180 mm, Φ12.0 x 200 mm, Φ12.0 x 240 mm |
|---|---|
InterZan Lag Screw |
Φ11.0 x 70 mm, Φ11.0 x 75 mm, Φ11.0 x 80 mm, Φ11.0 x 85 mm Φ11.0 x 90 mm, Φ11.0 x 95 mm, Φ11.0 x 100 mm, Φ11.0 x 105 mm Φ11.0 x 110 mm, Φ11.0 x 115 mm, Φ11.0 x 120 mm |
InterZan Compression Screw |
Φ7.0 x 65 mm, Φ7.0 x 70 mm, Φ7.0 x 75 mm, Φ7.0 x 80 mm Φ7.0 x 85 mm, Φ7.0 x 90 mm, Φ7.0 x 95 mm, Φ7.0 x 100 mm Φ7.0 x 105 mm, Φ7.0 x 110 mm, Φ7.0 x 115 mm |
Locking Bolt |
Φ4.9 x 28 mm, Φ4.9 x 30 mm, Φ4.9 x 32 mm, Φ4.9 x 34 mm Φ4.9 x 36 mm, Φ4.9 x 38 mm, Φ4.9 x 40 mm, Φ4.9 x 42 mm Φ4.9 x 44 mm, Φ4.9 x 46 mm, Φ4.9 x 48 mm, Φ4.9 x 50 mm Φ4.9 x 52 mm, Φ4.9 x 54 mm, Φ4.9 x 56 mm, Φ4.9 x 58 mm |
InterZan End Cap |
+0 mm, +5 mm, +10 mm |
| Material | Titanium Alloy |
| Surface Treatment | Micro-arc Oxidation |
| Qualification | ISO13485 / NMPA |
| Package | Sterile Packaging 1pcs/package |
| MOQ | 1 Pcs |
| Supply Ability | 1000+ Pieces per Month |
Frequently Asked Questions (FAQ)
What is the primary material used for the InterZan Nail System?
The system is manufactured using high-grade Titanium Alloy with a Micro-arc Oxidation surface treatment to enhance durability, biocompatibility, and biomechanical fixation.
How does the system prevent the "Z-effect"?

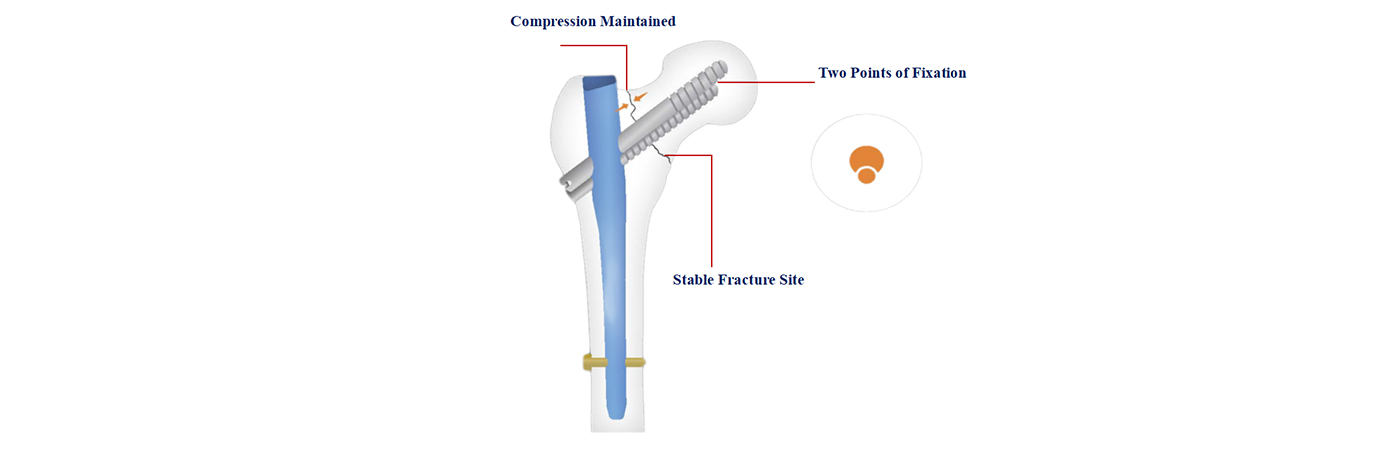

The integrated compression screw and lag screw thread together to generate coordinated push/pull forces. This mechanism maintains active compression after instruments are removed, effectively preventing screw migration and the Z-effect.
What clinical indications is this femoral nail designed for?
It is indicated for a wide range of femoral fractures including simple, comminuted, spiral, and segmental shaft fractures; subtrochanteric and intertrochanteric fractures; ipsilateral femoral shaft/neck fractures; intracapsular fractures; nonunions, malunions, and prophylactic nailing of pathologic fractures.
What are the packaging and sterilization standards?
Each implant comes in individual sterile packaging (1 piece per package), compliant with ISO13485 and NMPA medical device manufacturing qualifications.
What is the minimum order quantity (MOQ) and production capacity?
The MOQ is 1 piece, with a stable monthly supply ability exceeding 1,000 pieces per month to meet both urgent clinical needs and volume distribution.
