Best Proximal Medial Tibia Locking Compression Plate I Pricelist, Product
Product Description

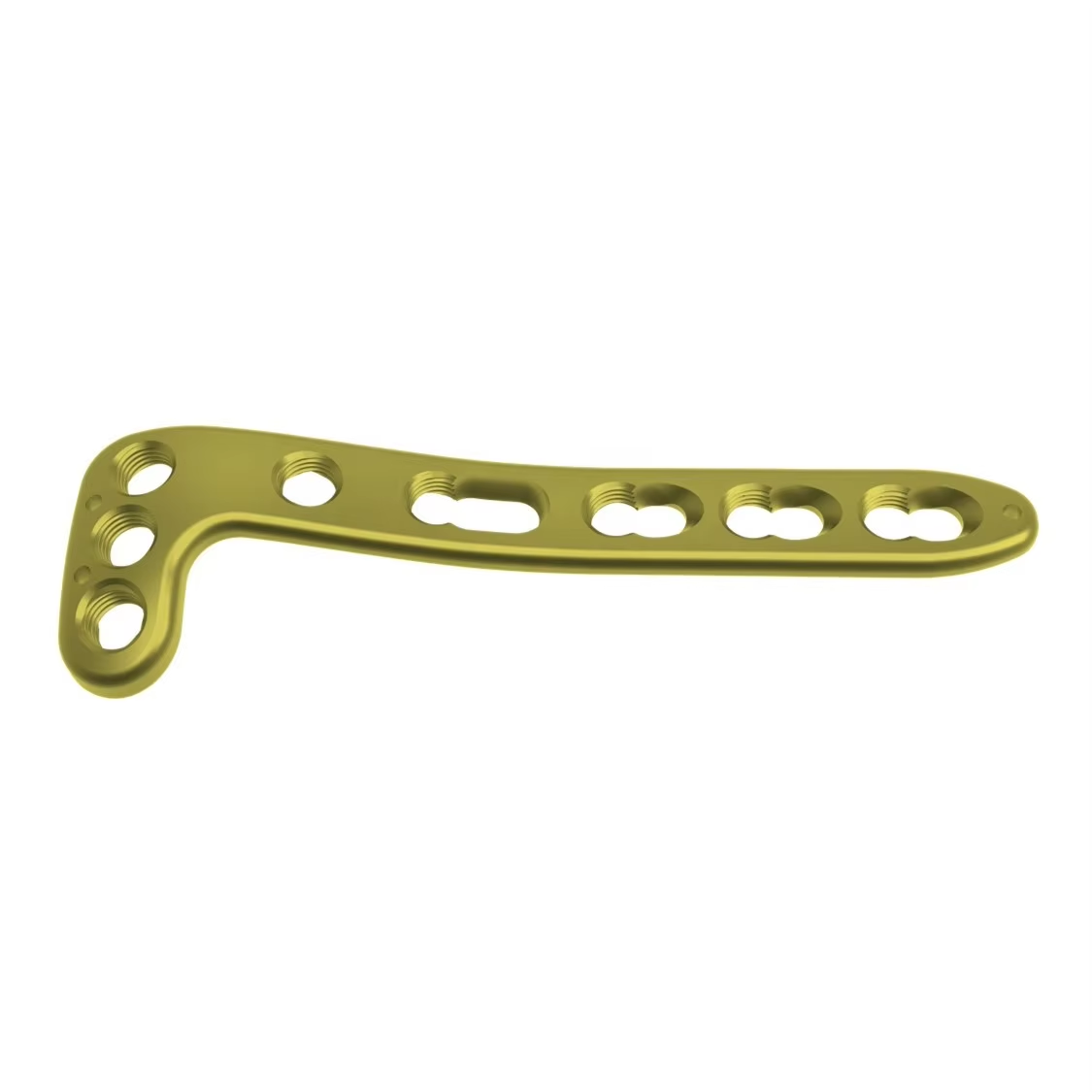

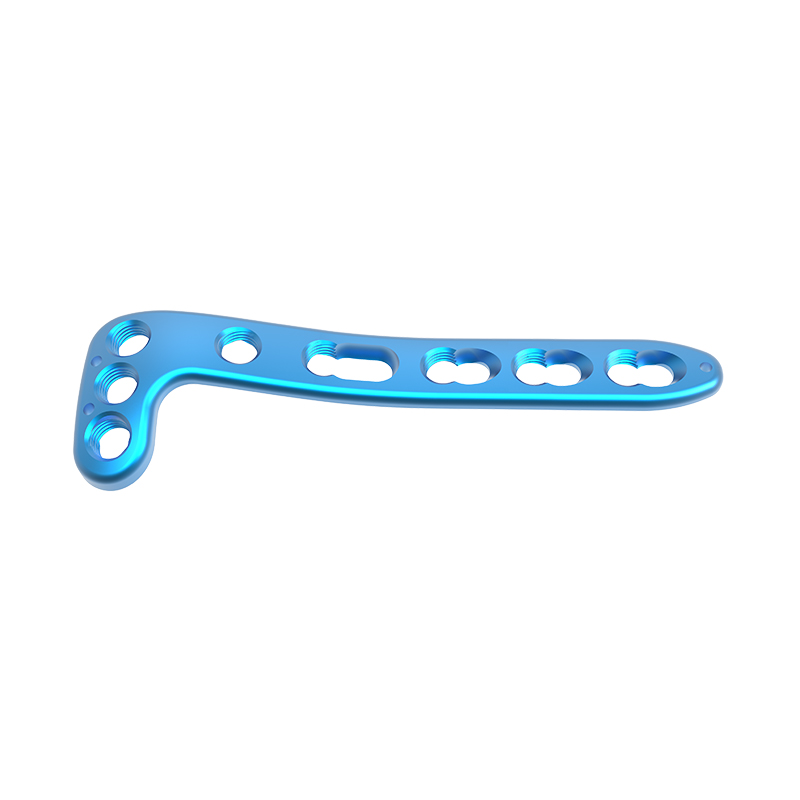

The Proximal Medial Tibia Locking Compression Plate is a surgical implant used in the treatment of fractures of the proximal medial tibia (shinbone). It is specifically designed to provide stability and compression to the fractured bone, allowing for proper healing.
Indications: Indicated for buttress metaphyseal fractures of the medial tibial plateau, split-type fractures of the medial tibial plateau, medial split fractures with associated depressions and split or depression fractures of the medial tibial plateau.
- Anatomically contoured to approximate the anteromedial proximal tibia
- Limited-contact shaft profile
- Left and right plates
- Available sterile-packed
Product Specifications & Parameters
| Product Name | Proximal Medial Tibia Locking Compression Plate I |
| Specifications (Left) |
5 holes x 107mm (Left) 7 holes x 133mm (Left) 9 holes x 159mm (Left) 11 holes x 185mm (Left) 13 holes x 211mm (Left) |
| Specifications (Right) |
5 holes x 107mm (Right) 7 holes x 133mm (Right) 9 holes x 159mm (Right) 11 holes x 185mm (Right) 13 holes x 211mm (Right) |
| Width | 11.5mm |
| Thickness | 3.6mm |
| Matching Screw | 3.5 Locking Screw / 3.5 Cortical Screw / 4.0 Cancellous Screw |
| Material | Titanium |
| Surface Treatment | Micro-arc Oxidation |
| Qualification | CE / ISO13485 / NMPA |
| Package | Sterile Packaging 1pcs/package |
| MOQ | 1 Pcs |
| Supply Ability | 1000+ Pieces per Month |
Design Characteristics & Fixation Technology
For articulated tension device.
Two 2.0 mm holes for preliminary fixation with Kirschner wires, or meniscal repair with sutures.
The two angled locking holes distal to the plate head to secure the plate position. The hole angles allow the locking screws to converge and support the three screws in the plate head.
The tibia locking plate combines a dynamic compression hole with a locking screw hole, which provides the flexibility of axial compression and locking capability throughout the length of the plate shaft.

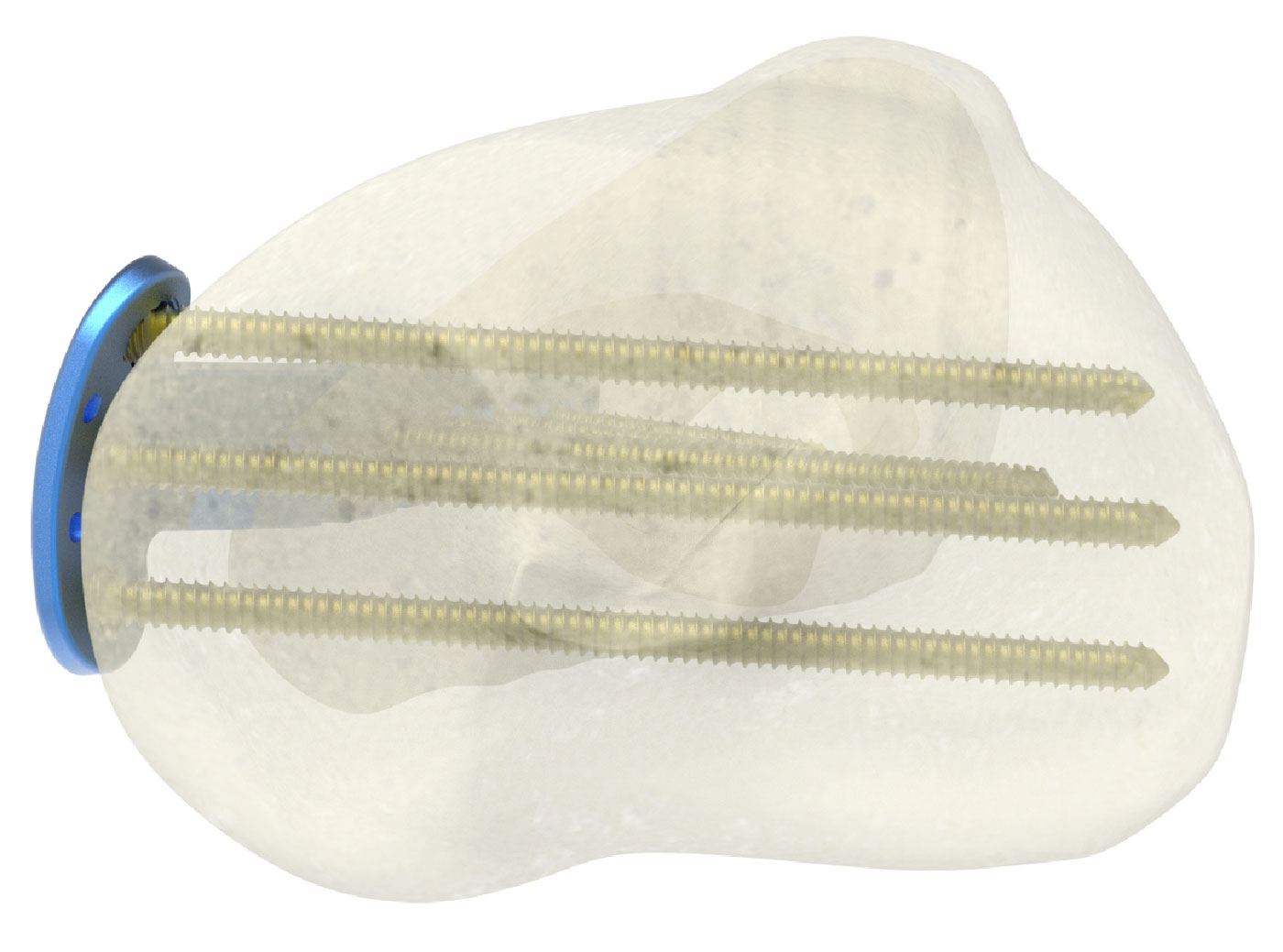

The screw hole pattern allows a raft of subchondral locking screws to buttress and maintain reduction of the articular surface. This provides fixed-angle support to the tibial plateau.
Frequently Asked Questions (FAQ)
What are the main clinical indications for this plate?
It is indicated for buttress metaphyseal fractures of the medial tibial plateau, split-type fractures of the medial tibial plateau, medial split fractures with associated depressions, and split or depression fractures of the medial tibial plateau.
What material and surface treatment are used for the plate?
The plate is manufactured from medical-grade Titanium and processed with Micro-arc Oxidation surface treatment to optimize biocompatibility and mechanical performance.
Which screws are compatible with this locking compression plate?
It accommodates 3.5 Locking Screws, 3.5 Cortical Screws, and 4.0 Cancellous Screws.
What sizes and side options are available?
The plates are available in distinct Left and Right anatomical configurations, with lengths ranging from 5 holes (107mm) up to 13 holes (211mm), with a uniform width of 11.5mm and thickness of 3.6mm.
How does the plate achieve fixed-angle articular support?
The screw hole pattern allows a raft of subchondral locking screws to buttress and maintain reduction of the articular surface, offering reliable fixed-angle support to the tibial plateau.
What quality certifications and packaging standards apply?
The implant meets CE, ISO13485, and NMPA standards, and is supplied individually in sterile packaging (1 pcs/package).
