Product Description
What is the ZAFIN Femoral Nail Instrument Set
ZAFIN femoral nail instrument is a surgical tool specifically designed for fixing femoral fractures. This innovative instrument is essential for orthopedic surgeons, providing them with the tools necessary for accurate and effective minimally invasive surgery.
One highlight of the ZAFIN instrument set is its comprehensive tool set, including intramedullary nails of various sizes, locking screws, and specialized instruments for placement and operation. This versatility enables surgeons to customize treatment plans based on the specific needs of each patient, ensuring that personalized treatment plans achieve better results.

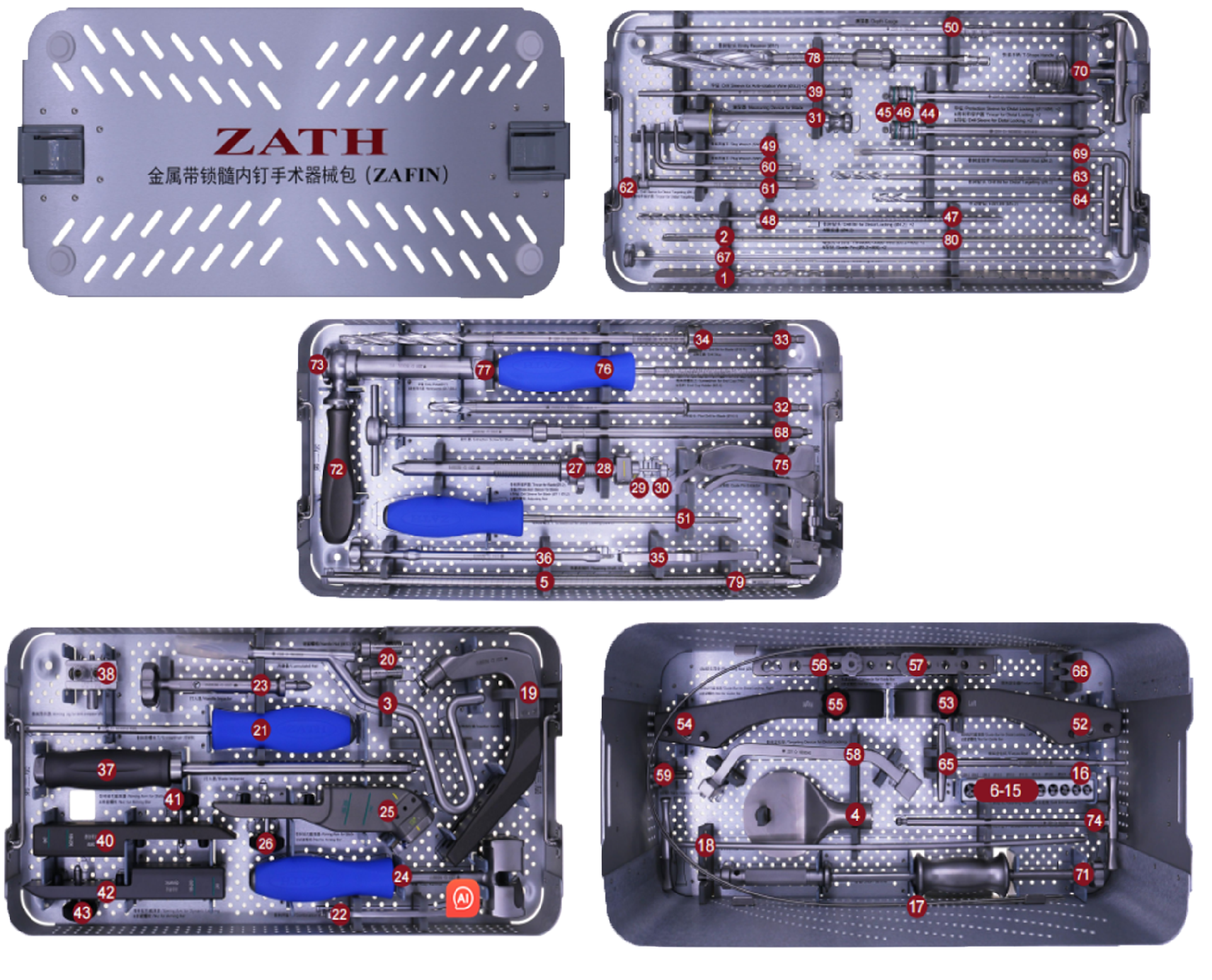

Femoral Nail Instrument Set (ZAFIN)

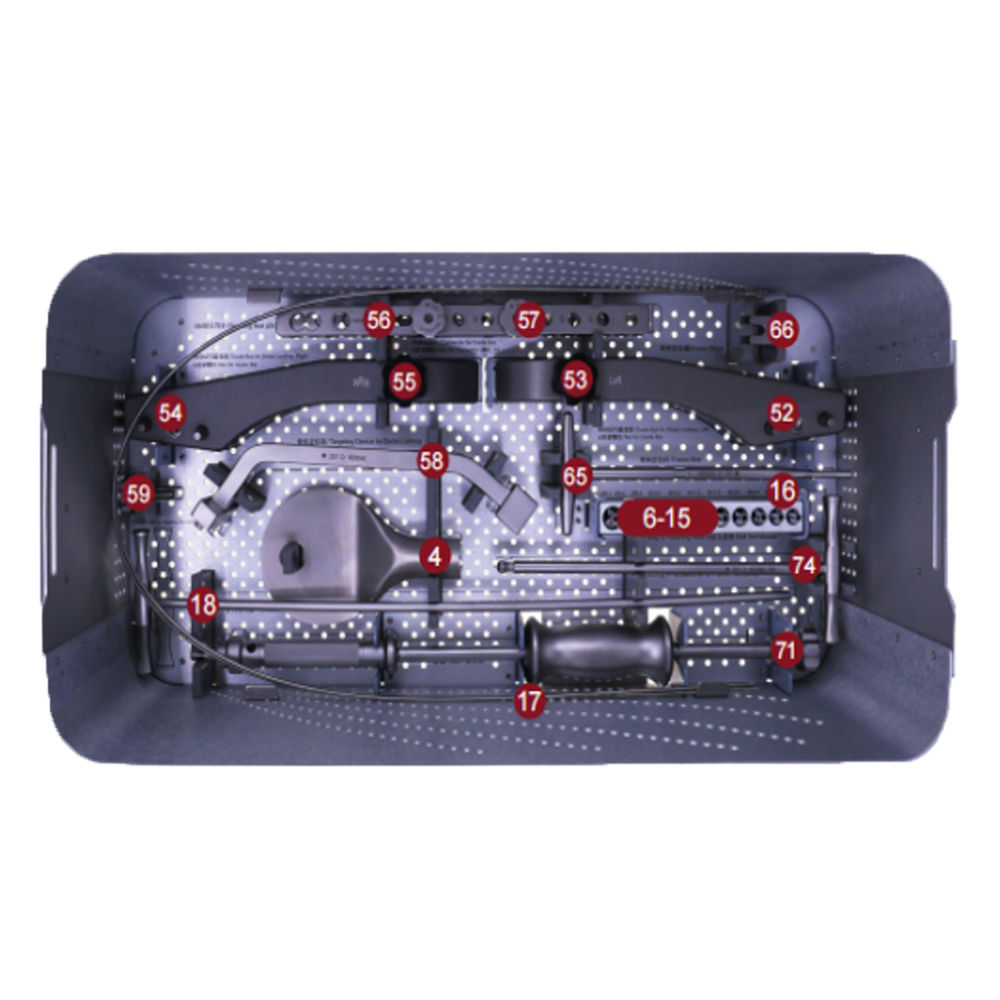

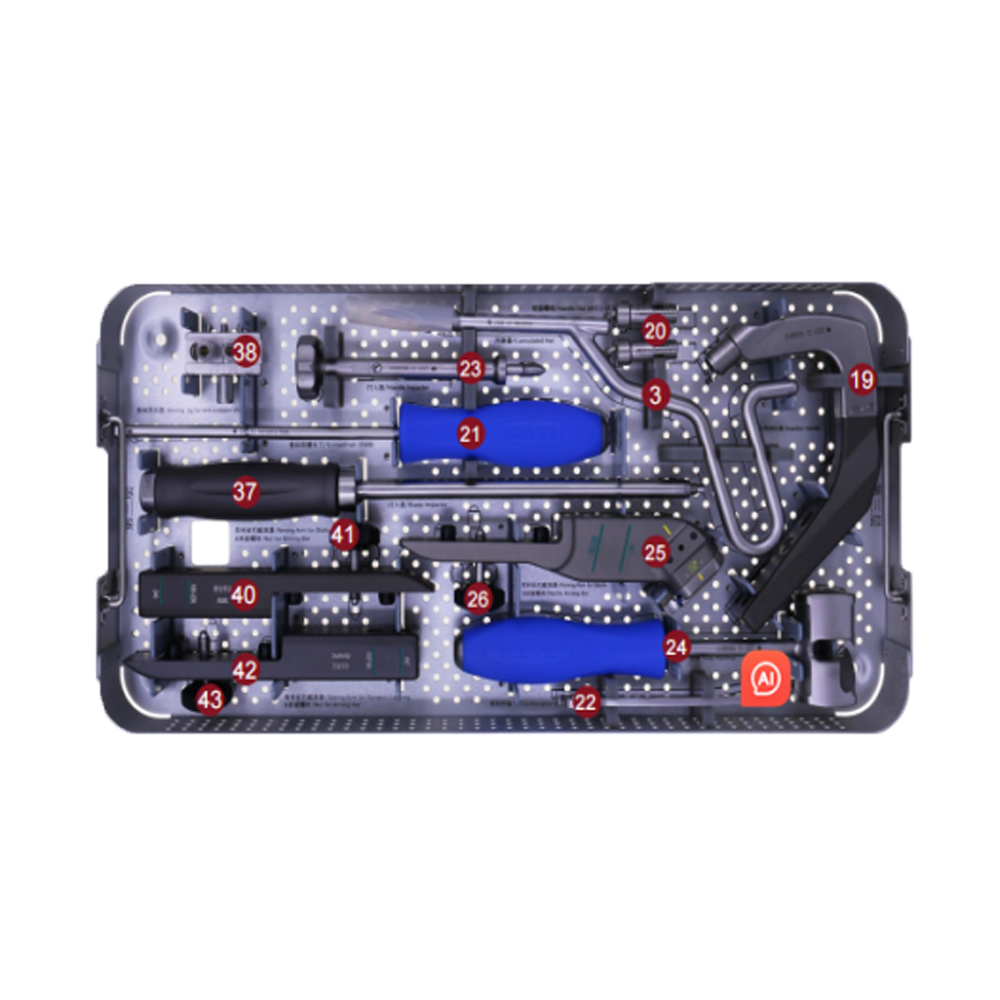

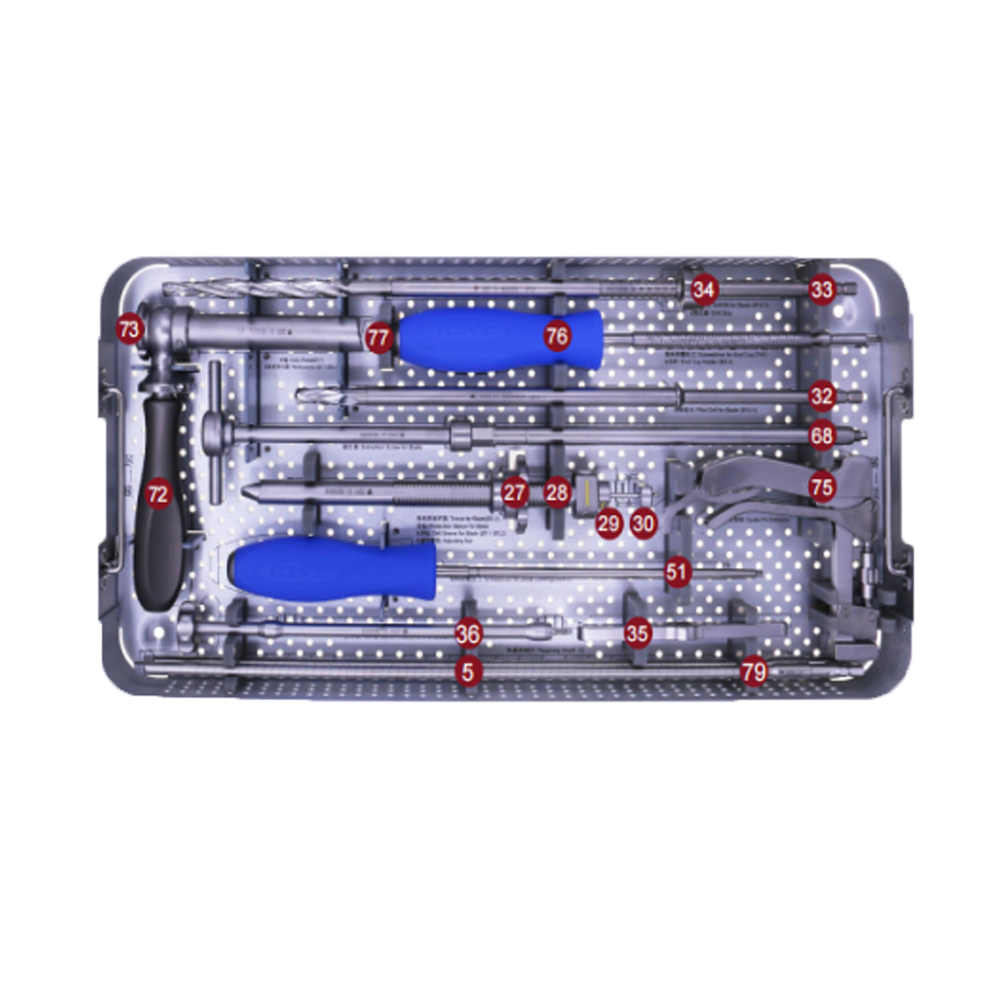

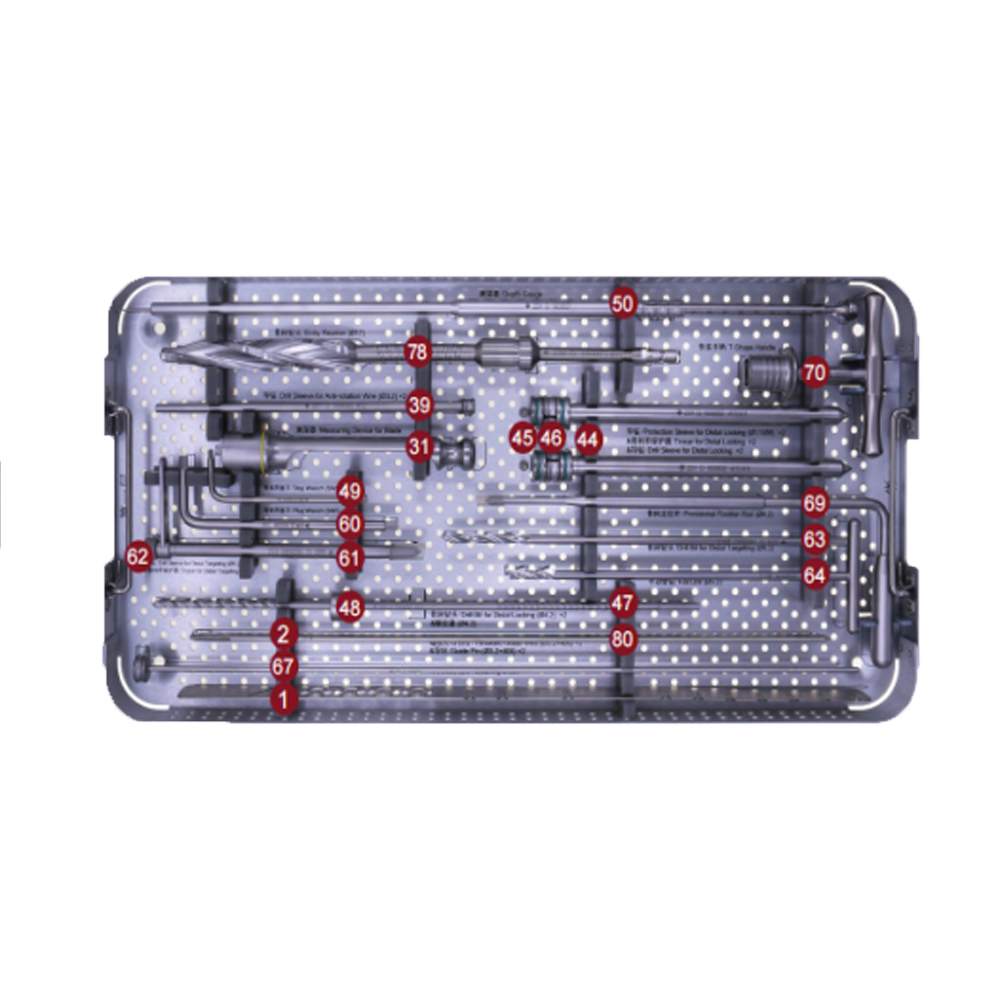

| Serial No. | English Name | Product Code | Specification | Quantity |
|---|---|---|---|---|
| 1 | Radiographic Ruler | 16030001 | 1 | |
| 2 | Threaded Guide Wire | 16030002 | Ф3.2*400mm | 2 |
| 3 | Cannulated Awl | 16030005 | 1 | |
| 4 | Tissue Protector | 16030006 | 1 | |
| 5 | Reaming Shaft | 16030008 | 1 | |
| 6 | Reaming Head | 16030009-01 | Ф8.5 | 1 |
| 7 | Reaming Head | 16030009-02 | Ф9.0 | 1 |
| 8 | Reaming Head | 16030009-03 | Ф9.5 | 1 |
| 9 | Reaming Head | 16030009-04 | Ф10.0 | 1 |
| 10 | Reaming Head | 16030009-05 | Ф10.5 | 1 |
| 11 | Reaming Head | 16030009-06 | Ф11.0 | 1 |
| 12 | Reaming Head | 16030009-07 | Ф11.5 | 1 |
| 13 | Reaming Head | 16030009-08 | Ф12.0 | 1 |
| 14 | Reaming Head | 16030009-09 | Ф12.5 | 1 |
| 15 | Reaming Head | 16030009-10 | Ф13.0 | 1 |
| 16 | Reaming Module | 16030009-11 | 1 | |
| 17 | Reaming Rod | 16030011 | Φ4.0 | 2 |
| 18 | Reaming Rod Guider | 16030012 | 1 | |
| 19 | Insertion Handle | 16030013 | 1 | |
| 20 | Handle Nut | 16030013-01 | M12 | 2 |
| 21 | Screwdriver | 16030014 | SW8.0 | 1 |
| 22 | Combination Wrench | 16030015 | SW11 | 1 |
| 23 | Handle Impactor | 16030016 | 1 | |
| 24 | Slap Hammer | 16030017 | 1 | |
| 25 | Aiming Arm for Blade | 16030018 | 1 | |
| 26 | Nut for Aiming Bar | 16030072 | 1 | |
| 27 | Adjusting Nut | 16030019-01 | 1 | |
| 28 | Protection Sleeve for Blade | 16030019 | 1 | |
| 29 | Drill Sleeve for Blade | 16030020 | Ф11/Ф3.2 | 1 |
| 30 | Trocar for Blade | 16030021 | Ф3.2 | 1 |
| 31 | Measuring Device for Blade | 16030022 | 1 | |
| 32 | Pilot Drill for Blade | 16030023 | Ф10.5 | 1 |
| 33 | Drill Bit for Blade | 16030024 | Ф10.5 | 1 |
| 34 | Drill Stop | 16030024-01 | 1 | |
| 35 | Key for Blade | 16030025 | 1 | |
| 36 | Compression Instrument for Blade | 16030026 | 1 | |
| 37 | Blade Impactor | 16030027 | 1 | |
| 38 | Aiming Jig for Anti-rotation Wire | 16030028 | 1 | |
| 39 | Drill Sleeve for Anti-rotation Wire | 16030029 | Ф3.2 | 2 |
| 40 | Aiming Arm for Static Locking | 16030030 | 1 | |
| 41 | Nut for Aiming Bar | 16030072 | 1 | |
| 42 | Aiming Arm for Dynamic Locking | 16030031 | 1 | |
| 43 | Nut for Aiming Bar | 16030072 | 1 | |
| 44 | Protection Sleeve for Distal Locking | 16030032 | Ф11/Ф8 | 2 |
| 45 | Trocar for Distal Locking | 16030033 | Ф4.2 | 2 |
| 46 | Drill Sleeve for Distal Locking | 16030034 | Ф4.2 | 2 |
| 47 | Drill Bit for Distal Locking | 16030035 | Ф4.2 | 2 |
| 48 | Drill Stop | 16030035-01 | Ф4.2 | 1 |
| 49 | Stop Wrench | 16030036 | SW3 | 1 |
| 50 | Depth Gauge | 16030037 | 1 | |
| 51 | Screwdriver for Distal Locking | 16030038 | SW4.0 | 1 |
| 52 | Guide Bar for Distal Locking, Left | 16030040 | L | 1 |
| 53 | Nut for Guide Bar | 16030073 | 1 | |
| 54 | Guide Bar for Distal Locking, Right | 16030041 | R | 1 |
| 55 | Nut for Guide Bar | 16030073 | 1 | |
| 56 | Connector for Guide Bar | 16030042 | 1 | |
| 57 | Nut for Connector | 16030042-01 | M8 | 2 |
| 58 | Targeting Device for Distal Locking | 16030043 | 1 | |
| 59 | Nut for Targeting Device | 16030043-01 | M8 | 1 |
| 60 | Plug Wrench | 16030044 | SW5 | 1 |
| 61 | Drill Sleeve for Distal Targeting | 16030045 | Ф5.2 | 1 |
| 62 | Trocar for Distal Targeting | 16030046 | Ф5.2 | 1 |
| 63 | Drill Bit for Distal Targeting | 16030047 | Ф5.2 | 1 |
| 64 | Flat Drill | 16030048 | Ф5.2 | 1 |
| 65 | Fixture Rod | 16030049 | 1 | |
| 66 | Fixture Block | 16030050 | 1 | |
| 67 | Cleaning Brush | 16030054 | 1 | |
| 68 | Extraction Screw for Blade | 16030055 | 1 | |
| 69 | Provisional Fixation Rod | 16030057 | Ф4.2 | 1 |
| 70 | T-Shape Handle | 16030058 | 1 | |
| 71 | Slide Hammer | 16030061 | 1 | |
| 72 | Entry Portal | 16030062 | Ф17 | 1 |
| 73 | Drill Sleeve | 16030063 | Ф17/Ф3.2 | 1 |
| 74 | Screwdriver for Handle Nut | 16030066 | SW8 | 1 |
| 75 | Guide Pin Extractor | 16030068 | 1 | |
| 76 | Screwdriver for End Cap | 16030070 | T40 | 1 |
| 77 | End Cap Holder | 16030070-01 | M3.5 | 1 |
| 78 | Entry Reamer | 16030071 | Ф17 | 1 |
| 79 | Reaming Shaft | 16030074 | 1 | |
| 80 | Guide Wire | 16030077 | Ф3.2x400 | 2 |

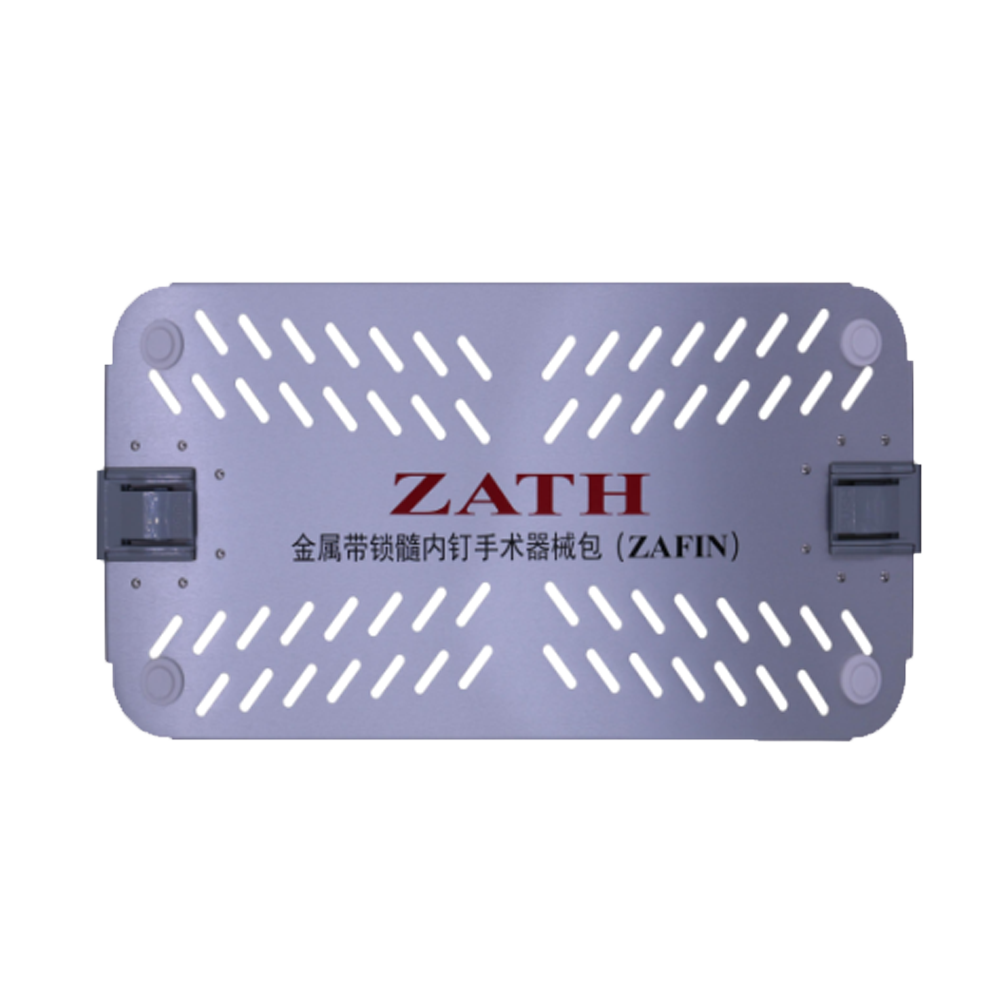

| 81 | Instrument Box | 16030064 | 1 |
Frequently Asked Questions
What clinical procedures is the ZAFIN Femoral Nail Instrument Set designed for?
It is engineered specifically for fixing a broad range of femoral fractures, providing orthopedic surgeons with precision tools to perform minimally invasive intramedullary nailing.
What range of reaming head sizes are included in this set?
The instrument set provides a comprehensive selection of reaming heads ranging from diameter Ф8.5 mm up to Ф13.0 mm in incremental steps to allow progressive and controlled canal preparation.
Does the set support both static and dynamic locking options?
Yes, the set contains specialized aiming arms for both static locking and dynamic locking configurations, allowing surgeons flexibility based on fracture stability and healing requirements.
Are specific guide bars included for both left and right femur anatomies?
Yes, the set includes dedicated distal locking guide bars marked for left (L) and right (R) sides to facilitate exact anatomical alignment during insertion and screw targeting.
How are the components stored and organized for surgery?
All 81 surgical instruments are organized within a dedicated, high-grade instrument box (Product Code 16030064) tailored for efficient organization, transport, and standard surgical sterilization workflows.
