Product Description
What is the MASFIN Femoral Nail Instrument Set?
The MASFIN femoral nail instrument is a surgical kit specifically designed for fixing femoral fractures. This innovative instrument kit is essential for orthopedic surgeons to perform intramedullary nail surgery, which is commonly used to treat femoral fractures, especially those that are complex or unstable.

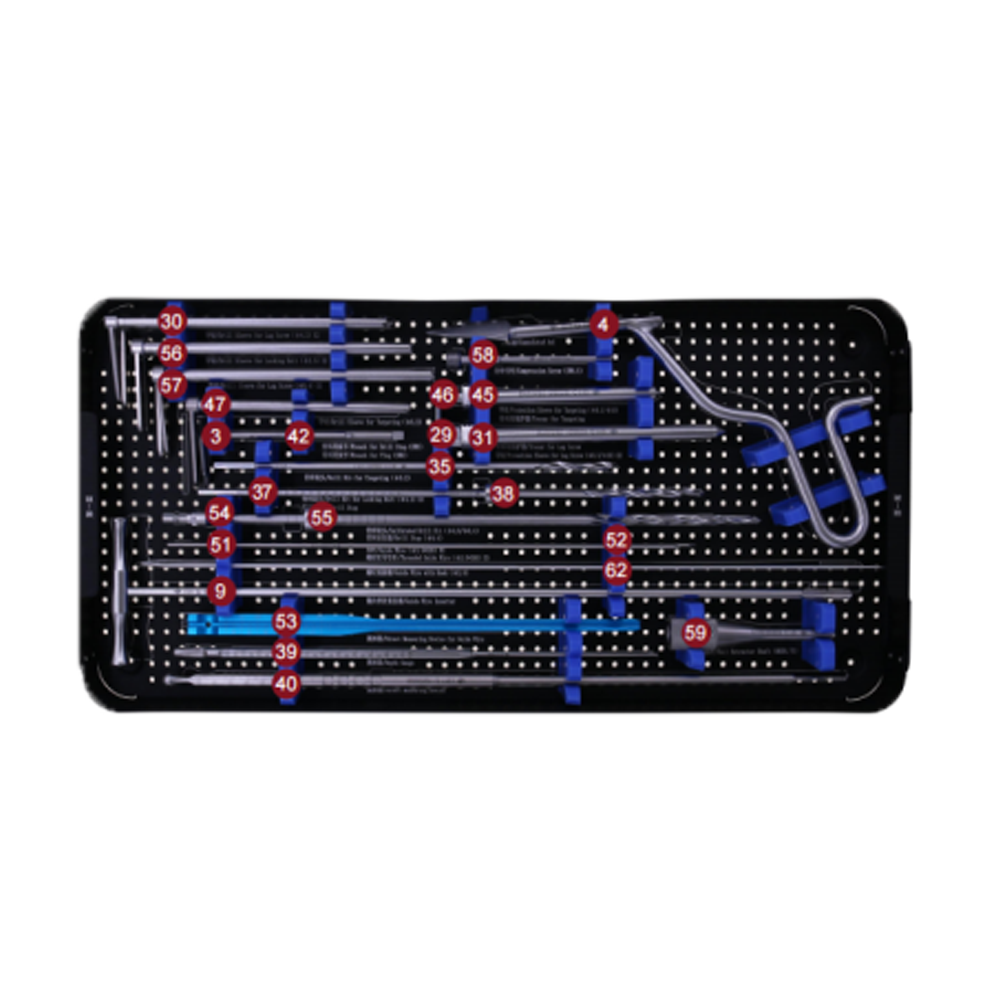

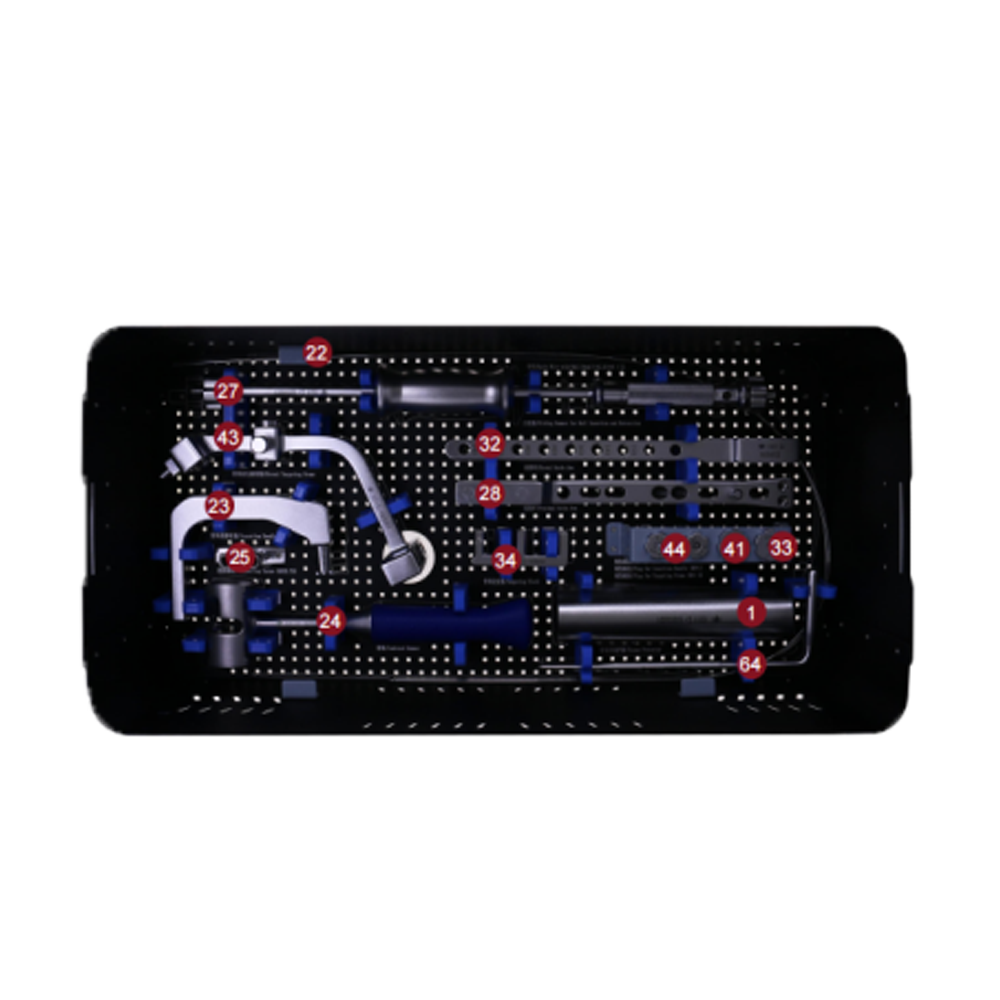

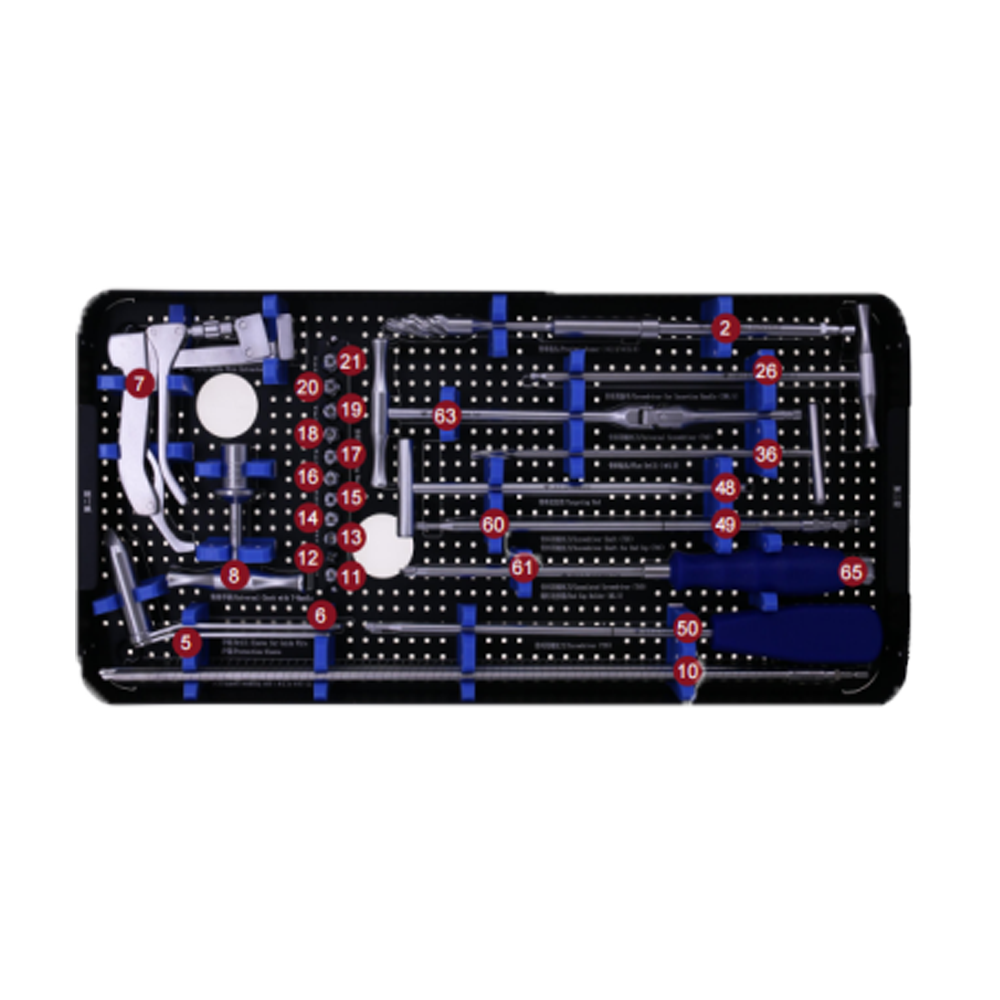

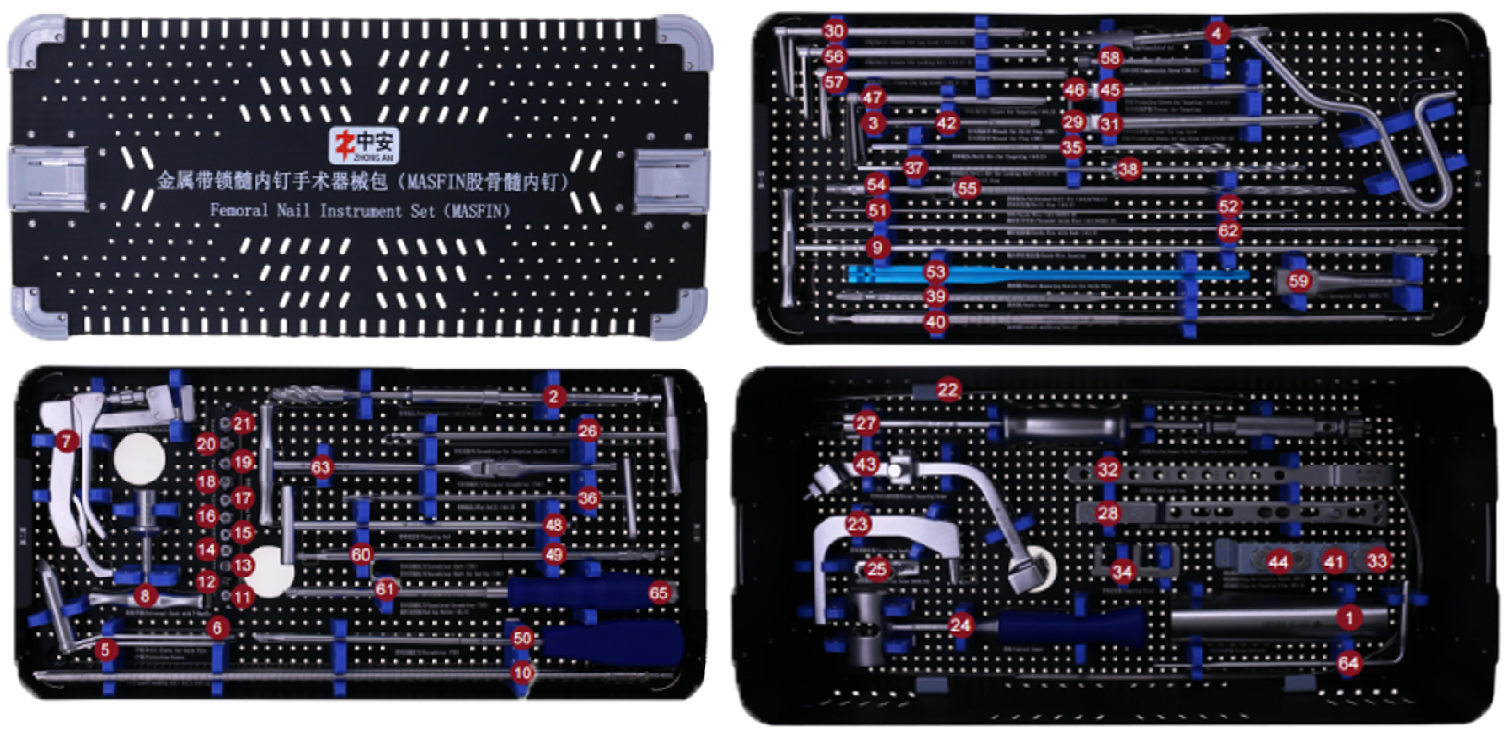

Femoral Nail Instrument Set (MASFIN) Component Specifications
| Serial No. | English Name | Product Code | Specification | Quantity |
|---|---|---|---|---|
| 1 | Tissue Protector | 16050001 | — | 1 |
| 2 | Proximal Reamer | 16050002 | ∅2.5/∅13.8 | 1 |
| 3 | Wrench for Drill Stop | 16050003 | SW3 | 1 |
| 4 | Cannulated Awl | 16050004 | — | 1 |
| 5 | Drill Sleeve for Guide Wire | 16050005 | — | 1 |
| 6 | Protection Sleeve | 16050006 | — | 1 |
| 7 | Guide Wire Extractor | 16050007 | — | 1 |
| 8 | Universal Chuck with T-Handle | 16050008 | — | 1 |
| 9 | Guide Wire Inserter | 16050009 | — | 1 |
| 10 | Reaming Rod | 16050010 | φ2.5/φ8 | 2 |
| 11 | Reamer Drill Bit | 16050011 | ∅8 | 1 |
| 12 | Reamer Drill Bit | 16050012 | ∅8.5 | 1 |
| 13 | Reamer Drill Bit | 16050013 | ∅9 | 1 |
| 14 | Reamer Drill Bit | 16050014 | ∅9.5 | 1 |
| 15 | Reamer Drill Bit | 16050015 | ∅10 | 1 |
| 16 | Reamer Drill Bit | 16050016 | ∅10.5 | 1 |
| 17 | Reamer Drill Bit | 16050017 | ∅11 | 1 |
| 18 | Reamer Drill Bit | 16050018 | ∅11.5 | 1 |
| 19 | Reamer Drill Bit | 16050019 | ∅12 | 1 |
| 20 | Reamer Drill Bit | 16050020 | ∅12.5 | 1 |
| 21 | Reamer Drill Bit | 16050021 | ∅13 | 1 |
| 22 | Guide Wire with Ball Head | 16050022 | ∅2.5/∅4 | 2 |
| 23 | Insertion Handle | 16050023 | — | 1 |
| 24 | Combined Hammer | 16050024 | — | 1 |
| 25 | Connecting Screw | 16050025 | M8X0.75 | 2 |
| 26 | Screwdriver for Insertion Handle | 16050026 | SW6.5 | 1 |
| 27 | Sliding Hammer for Nail Insertion and Extraction | 16050027 | — | 1 |
| 28 | Proximal Guide Arm | 16050028 | — | 1 |
| 29 | Trocar for Lag Screw | 16050029 | — | 1 |
| 30 | Drill Sleeve for Lag Screw | 16050030 | ∅4.2 | 2 |
| 31 | Protection Sleeve for Lag Screw | 16050031 | ∅8.3/∅10 | 2 |
| 32 | Distal Guide Arm | 16050032 | — | 1 |
| 33 | Nut for Guide Arm | 16050033 | M8*1 | 1 |
| 34 | Targeting Block | 16050034 | — | 1 |
| 35 | Drill Bit for Targeting | 16050035 | ∅5.2 | 1 |
| 36 | Flat Drill | 16050036 | ∅5.2 | 1 |
| 37 | Drill Bit for Locking Bolt | 16050037 | ∅4.2 | 3 |
| 38 | Drill Stop | 16050038 | — | 1 |
| 39 | Depth Gauge | 16050039 | — | 1 |
| 40 | Direct Measuring Device | 16050040 | — | 1 |
| 41 | Plug for Insertion Handle | 16050041 | M8*1 | 1 |
| 42 | Wrench for Plug | 16050042 | SW5 | 1 |
| 43 | Distal Targeting Frame | 16050043 | — | 1 |
| 44 | Plug for Targeting Frame | 16050044 | M6 | 2 |
| 45 | Protection Sleeve for Targeting | 16050045 | ∅8.1/∅10 | 1 |
| 46 | Trocar for Targeting | 16050046 | — | 1 |
| 47 | Drill Sleeve for Targeting | 16050047 | ∅5.2 | 1 |
| 48 | Targeting Rod | 16050048 | — | 1 |
| 49 | Screwdriver Shaft | 16050049 | T25 | 1 |
| 50 | Screwdriver | 16050050 | T25 | 1 |
| 51 | Guide Wire | 16050051 | ∅2.5*320 | 3 |
| 52 | Threaded Guide Wire | 16050052 | ∅2.5*320 | 3 |
| 53 | Direct Measuring Device for Guide Wire | 16050053 | — | 1 |
| 54 | Calibrated Drill Bit | 16050054 | ∅4.6/∅6.4 | 1 |
| 55 | Drill Stop | 16050055 | ∅6.4 | 1 |
| 56 | Drill Sleeve for Locking Bolt | 16050056 | ∅2.5 | 2 |
| 57 | Drill Sleeve for Lag Screw | 16050057 | ∅6.4 | 2 |
| 58 | Compression Screw | 16050058 | SW6.5 | 1 |
| 59 | Nail Extractor Shaft | 16050059 | M8X0.75 | 1 |
| 60 | Screwdriver Shaft for End Cap | 16050060 | T40 | 1 |
| 61 | Cannulated Screwdriver | 16050061 | T40 | 1 |
| 62 | Guide Wire with Hook | 16050062 | φ2.8 | 1 |
| 63 | Universal Screwdriver | 16050063 | T40 | 1 |
| 64 | Provisional Fixation Rod | 16050064 | φ4.2 | 1 |
| 65 | End Cap Holder | 16050065 | M3.5 | 1 |
| 66 | Instrument Box | 16050066 | — | 1 |
Frequently Asked Questions
Q1What clinical indications is the MASFIN Femoral Nail Instrument Set designed for?
The set is engineered for surgical treatment of various femoral fractures, including shaft fractures, subtrochanteric fractures, ipsilateral neck/shaft fractures, and comminuted or unstable fractures requiring intramedullary fixation.
Q2What reaming sizes are included in the reamer drill bit inventory?
The kit provides an incremental range of reamer drill bits starting from ∅8 mm up to ∅13 mm in 0.5 mm steps, allowing surgeons to achieve precise canal preparation for optimal intramedullary nail fit.
Q3How does the set facilitate accurate proximal and distal locking?
The set contains specialized alignment arms including the Proximal Guide Arm, Distal Guide Arm, Distal Targeting Frame, and corresponding drill/protection sleeves, ensuring high-precision screw placement under fluoroscopic control.
Q4Does the kit support nail extraction in revision surgeries?
Yes, dedicated extraction components such as the Sliding Hammer for Insertion and Extraction and the Nail Extractor Shaft (M8X0.75) are integrated into the kit to facilitate controlled removal of existing hardware.
Q5How are the instruments organized and sterilized?

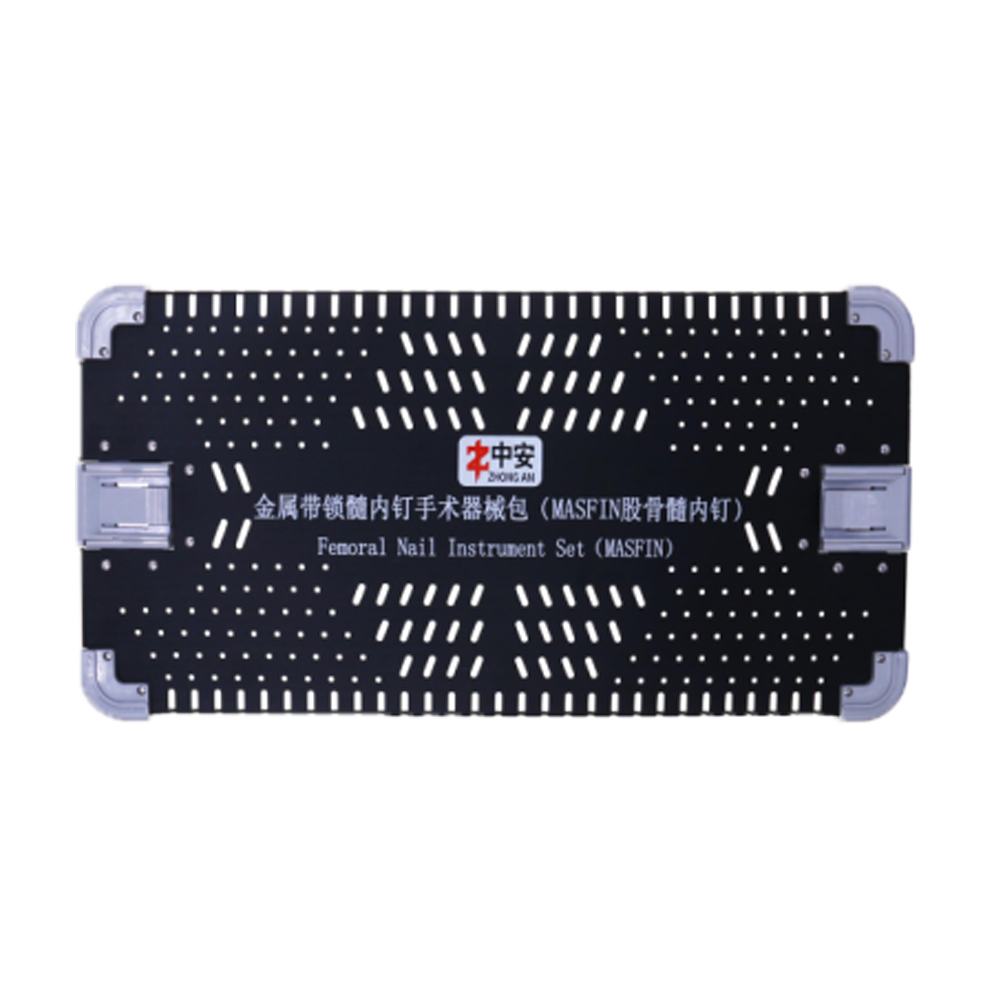

All 66 components are housed within an engineered, hospital-grade Instrument Box designed for organized layout, rapid intraoperative selection, and standard autoclave steam sterilization.
