Product Description
Product Specifications

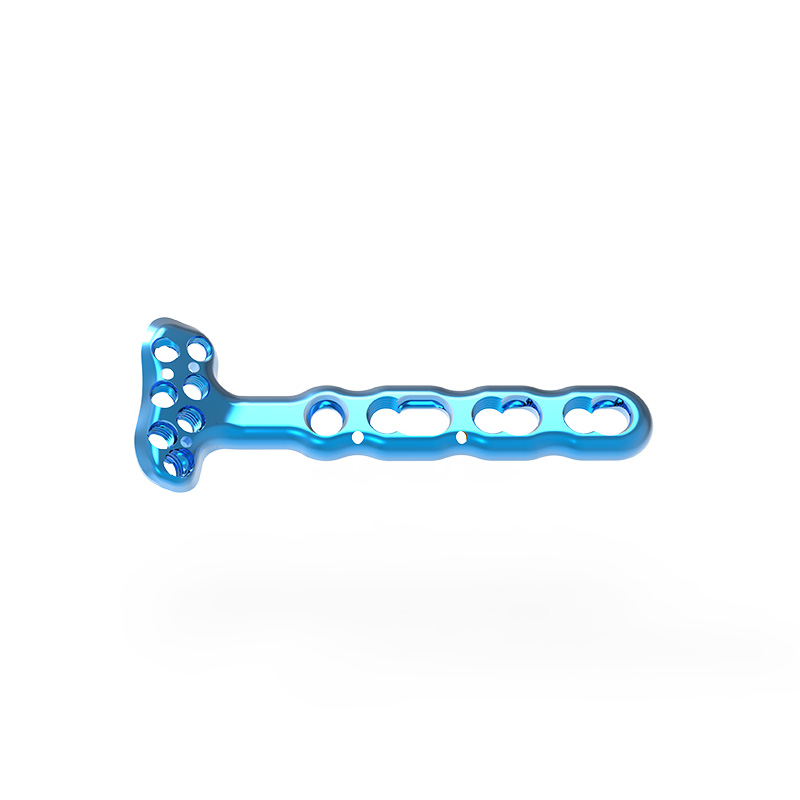

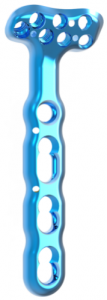

DVR Locking Compression Plate
|
3 holes x 55.7 mm (Left) |
| 4 holes x 67.7 mm (Left) | |
| 5 holes x 79.7 mm (Left) | |
| 6 holes x 91.7 mm (Left) | |
| 7 holes x 103.7 mm (Left) | |
| 3 holes x 55.7 mm (Right) | |
| 4 holes x 67.7 mm (Right) | |
| 5 holes x 79.7 mm (Right) | |
| 6 holes x 91.7 mm (Right) | |
| 7 holes x 103.7 mm (Right) | |
| Width | 11.0 mm |
| Thickness | 2.5 mm |
| Matching Screw | 2.7 mm Locking Screw for Distal Part 3.5 mm Locking Screw / 3.5 mm Cortical Screw for Shaft Part |
| Material | Titanium |
| Surface Treatment | Micro-arc Oxidation |
| Qualification | CE / ISO13485 / NMPA |
| Package | Sterile Packaging 1pcs/package |
| MOQ | 1 Pcs |
| Supply Ability | 1000+ Pieces per Month |
Detailed Product Overview
The distal end of the DVR Locking Compression Plate is meticulously contoured to perfectly match the anatomical features of the distal volar radius. This innovative design ensures a precise fit, allowing for optimum load distribution and improved patient outcomes. By conforming to the watershed line and topographic surface of the radius, our plate minimizes stress concentrations, reducing the risk of complications such as implant failure and postoperative pain.
One of the standout features of the DVR Locking Compression Plate is the distal fixed angle k-wire hole. This unique hole serves as a reference point, facilitating accurate plate positioning when utilizing the distal first technique. By providing a secure anchor for the k-wire, our plate enables precise alignment during surgery, minimizing the risk of malalignment and maximizing surgical success.
In addition to its groundbreaking design features, the DVR Locking Compression Plate incorporates advanced locking compression technology. The combination of locking and compression screws provides exceptional stability, promoting rapid healing and early mobilization. The locking screws prevent implant loosening while the compression screws promote bone-to-plate contact, fostering optimal fracture healing.
Furthermore, the DVR Locking Compression Plate is manufactured using top-quality materials to ensure superior strength and durability. Rigorously tested to meet the highest industry standards, our plate guarantees reliable performance and long-lasting results.
Ultimately, the DVR Locking Compression Plate represents a significant advancement in distal radius fracture fixation. With its anatomically contoured design, distal fixed angle k-wire hole, and advanced locking compression technology, this product is poised to become the gold standard in wrist fracture treatment. Experience the difference with the DVR Locking Compression Plate and revolutionize your approach to distal radius fracture fixation.
Key Design Highlights
Clinical Indications & Features
Anatomically contoured profile designed to follow the watershed line.
Intended for the fixation of fractures and osteotomies involving the distal radius.

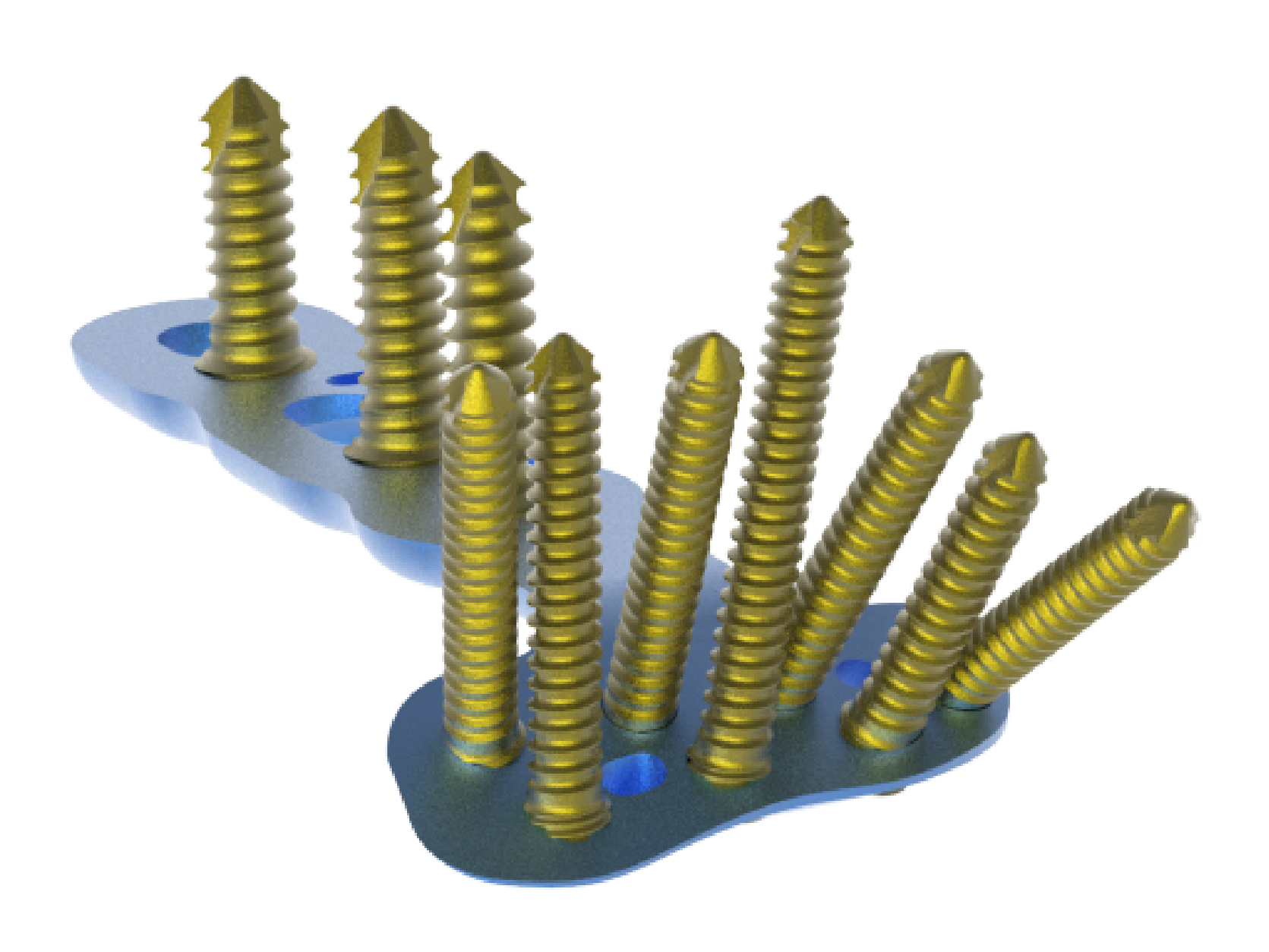

Proprietary divergent and converging rows of screws provide 3 dimensional scaffold for maximum subchondral support.
Frequently Asked Questions (FAQ)
The system is specifically intended for the fixation of fractures and osteotomies involving the distal radius, providing maximum buttress for volar marginal fragments.
The plate matches with 2.7 mm locking screws for the distal part, and 3.5 mm locking screws or 3.5 mm cortical screws for the shaft part.
The DVR Locking Compression Plate is manufactured from high-grade Titanium and undergoes micro-arc oxidation surface treatment for enhanced biocompatibility and durability.
The distal fixed angle K-wire hole provides an accurate reference point for positioning during distal first technique, while the ulnar proximal hole aids standard technique alignment and predicts screw distribution.
The product is fully certified under CE, ISO13485, and NMPA standards, ensuring top-tier surgical performance and safety compliance.
Plates are individually supplied in sterile packaging (1 piece per package), with a minimum order quantity (MOQ) of 1 piece and a supply capacity exceeding 1,000 pieces per month.
