Product Description
- 1-hole and 2-hole plates with 130º CDA
- Left and right plates
- Available sterile-packed
| Component / Parameter | Image Reference | Available Specifications |
|---|---|---|
| FNAS Plate |
|
1 hole, 2 holes |
| FNAS Bolt |
|
75mm, 80mm, 85mm, 90mm, 95mm, 100mm, 105mm, 110mm, 115mm, 120mm |

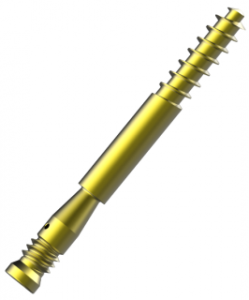

| FNAS Antirotation Screw |
|
75mm, 80mm, 85mm, 90mm, 95mm, 100mm, 105mm, 110mm, 115mm, 120mm |
| Width | 12.7mm | |
| Thickness | 5.5mm | |
| Matching Screw | 5.0 Locking Screw | |
| Material | Titanium | |
| Surface Treatment | Micro-arc Oxidation | |
| Qualification | CE / ISO13485 / NMPA | |
| Package | Sterile Packaging 1pcs/package | |
| MOQ | 1 Pcs | |
| Supply Ability | 1000+ Pieces per Month | |
- Pertrochanteric fractures
- Intertrochanteric fractures
- Subtrochanteric fractures
FNAS is indicated for femoral neck fractures, including basilar, transcervical, and subcapital fractures, in adults and adolescents (aged 12–21) in which the growth plates have fused or will not be crossed.
Specific contraindications for the Femoral Neck Antirotation System include pertrochanteric fractures, intertrochanteric fractures, and subtrochanteric fractures.

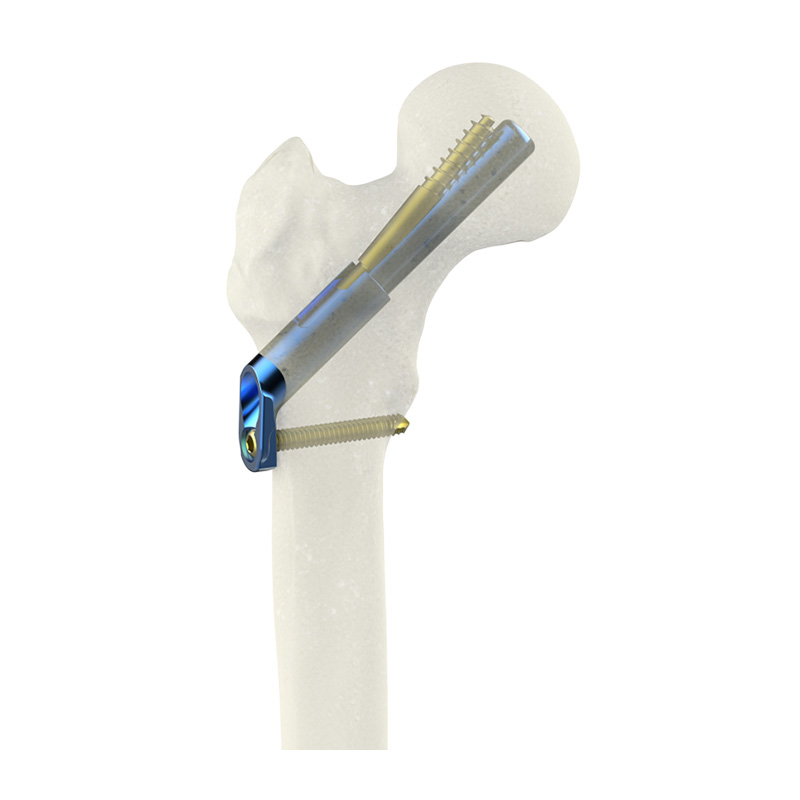

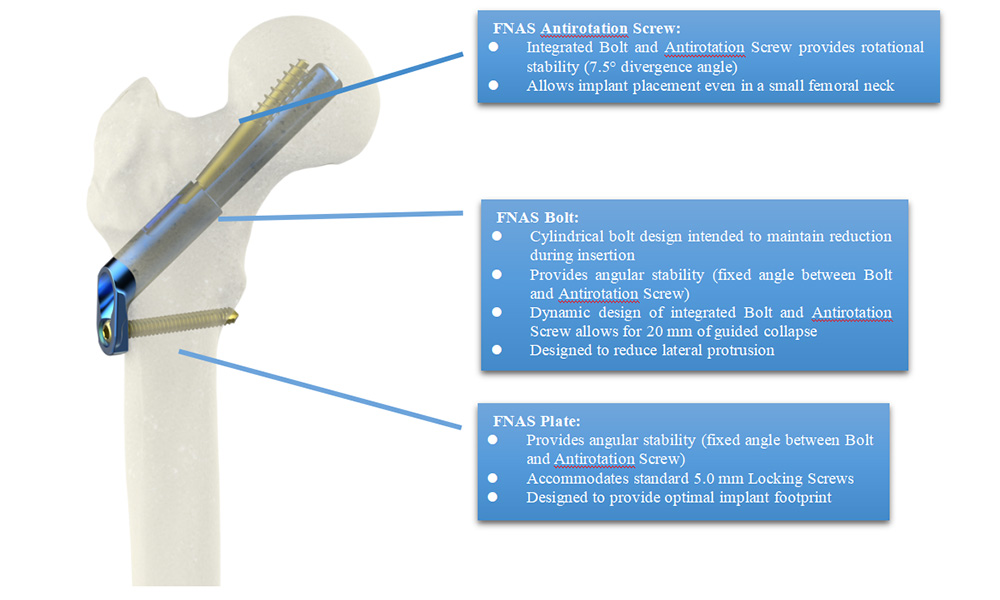

Rotational stability is achieved via the integrated Bolt and Antirotation Screw design with a 7.5° divergence angle, alongside a fixed angle between the Bolt and Antirotation Screw that maintains reduction and structural reliability.
The system is constructed from high-grade Titanium and undergoes Micro-arc Oxidation surface treatment to enhance durability and biocompatibility.
Plates are offered in 1-hole and 2-hole versions (with 130º CDA, left and right orientations), while both FNAS Bolts and Antirotation Screws range from 75mm to 120mm lengths in 5mm increments.
The product is certified under CE, ISO13485, and NMPA standards, supplied in sterile packaging (1 piece per pack) with a minimum order quantity (MOQ) of 1 piece.
