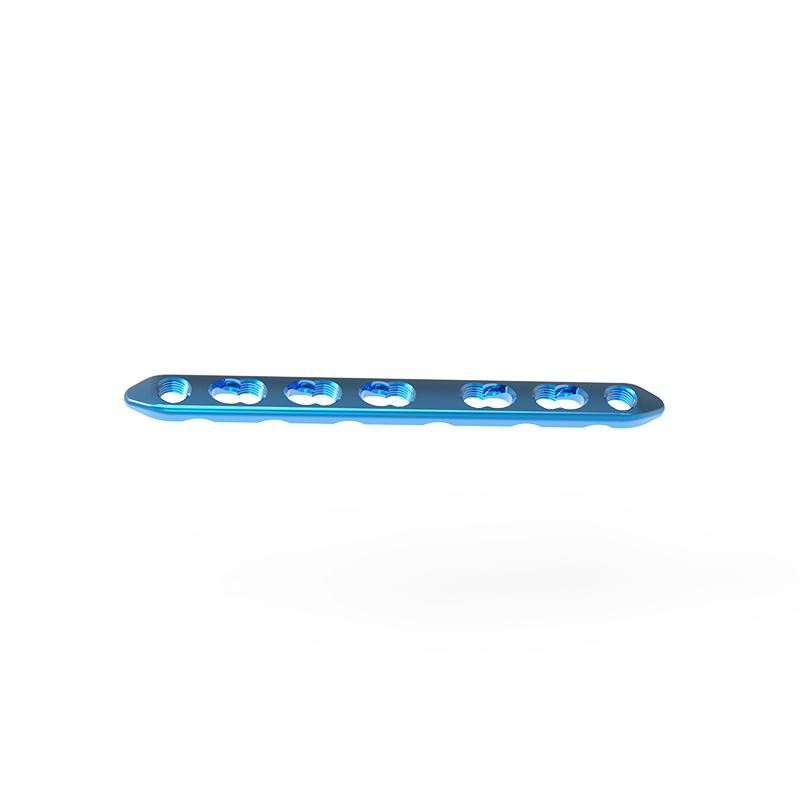

Custom Radius-Ulna Limited Contact Locking Compression Plate Factory, Exporter
Product Description
Key Product Highlights
Angular stable support of fragments
Reduced risk of primary and secondary loss of reduction under high dynamic loading
Limited plate-periosteum contact design
Locking screws provide secure hold in osteoporotic bone and multi-fragment fractures
Available sterile-packed for optimal safety
Functional Design & Technology
The locking screws used with this plate have a unique threading pattern that engages with the plate, creating a fixed-angle construct. This construct provides additional stability and prevents any screw-backout, reducing the risk of implant failure.
The limited contact aspect of the plate refers to the intentional design that minimizes contact between the plate and the underlying bone. This design aims to preserve the blood supply to the bone, promoting better healing and reducing the risk of complications such as necrosis.
The Radius-Ulna Limited Contact Locking Compression Plate is commonly used in the treatment of forearm fractures, including both acute fractures and non-unions (fractures that fail to heal). Its design and features aim to provide stability, compression, and an optimal environment for bone healing, ultimately facilitating the patient's recovery.
Technical Specifications

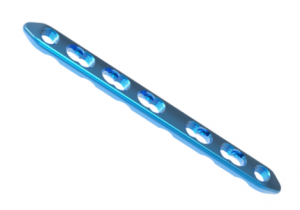

| Product Name | Radius/Ulna Limited Contact Locking Compression Plate |
| Available Dimensions | 4 holes x 57mm | 5 holes x 70mm | 6 holes x 83mm | 7 holes x 96mm | 8 holes x 109mm | 10 holes x 135mm | 12 holes x 161mm |
| Width | 9.5mm |
| Thickness | 3.0mm |
| Matching Screws | 3.5 Locking Screw / 3.5 Cortical Screw / 4.0 Cancellous Screw |
| Material | Titanium |
| Surface Treatment | Micro-arc Oxidation |
| Certifications / Qualification | CE / ISO13485 / NMPA |
| Package | Sterile Packaging 1pcs/package |
| MOQ | 1 Pcs |
| Supply Ability | 1000+ Pieces per Month |
Frequently Asked Questions
What are the primary clinical indications for this plate?
This plate is indicated for the fixation of fractures, malunions, and nonunions of the ulna and radius, covering both acute forearm trauma and non-union cases.
How does the limited contact design support bone healing?
The intentional limited contact design reduces the footprint between the plate and the underlying periosteum, protecting local vascularity and blood supply to lower necrosis risks and accelerate healing.
Why are locking screws beneficial in this construct?
Locking screws engage with the plate threading to form a fixed-angle construct. This prevents screw-backout, avoids implant failure, and maintains solid purchase even in osteoporotic or comminuted fractures.
What screw types are compatible with the plate?
The system matches with 3.5 Locking Screws, 3.5 Cortical Screws, and 4.0 Cancellous Screws.
What material and surface finishing are applied?
The plate is manufactured from medical-grade Titanium and treated with Micro-arc Oxidation for superior biocompatibility and wear resistance.
What certifications and packaging options are provided?
The product holds CE, ISO13485, and NMPA certifications and is delivered in sterile packaging (1 pcs/package) with an MOQ of 1 piece.
