ODM New design quality guaranteed total knee joint instruments Manufacturer, Exporter
Product Description
The knee joint instrument kit is a set of surgical instruments specifically designed for knee joint surgery. These kits are essential in orthopedic surgery, especially in knee replacement surgery, arthroscopy, and other interventions to treat knee joint injuries or degenerative diseases. The instruments in the knee joint kit are carefully crafted to ensure the accuracy, safety, and efficiency of the surgery.

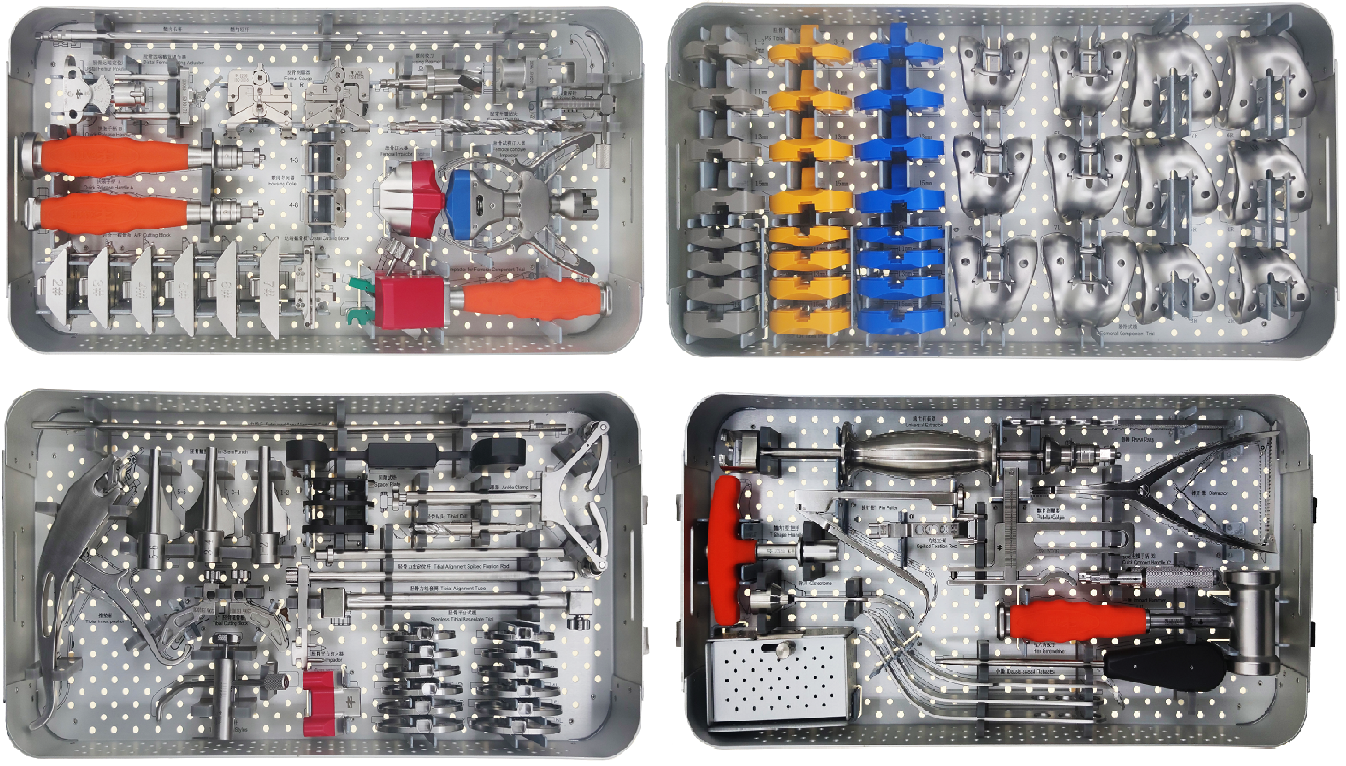

Typically, a knee instrument kit contains a variety of tools, such as drill bit, Housing Reamer Dome, Distractor etc and specialized cutting instruments. Each tool has a specific purpose, allowing surgeons to easily complete complex surgeries. For example, cutting instruments are used to remove damaged cartilage or bone, while retractors help to stabilize tissue, providing better visualization and access to the surgical site.
The design and composition of a knee instrument kit will vary depending on the specific procedure. Some kits may contain instruments customized for total knee replacement, while others may focus on minimally invasive techniques. The choice of instrument is critical as it can significantly impact the outcome of the procedure and the patient’s recovery process.
In addition to the physical tools, knee instrument often come with detailed instructions and guidelines to ensure the surgical team is adequately prepared. Proper sterilization and maintenance of these instruments are also critical to preventing infection and complications during surgery.
In summary, knee replacement instruments set are an indispensable resource in orthopedic surgery, providing surgeons with the tools they need to perform complex knee surgeries. Understanding the components and functions of these instruments is essential for medical professionals involved in knee surgery, ultimately helping to improve patient outcomes and increase surgical success rates.

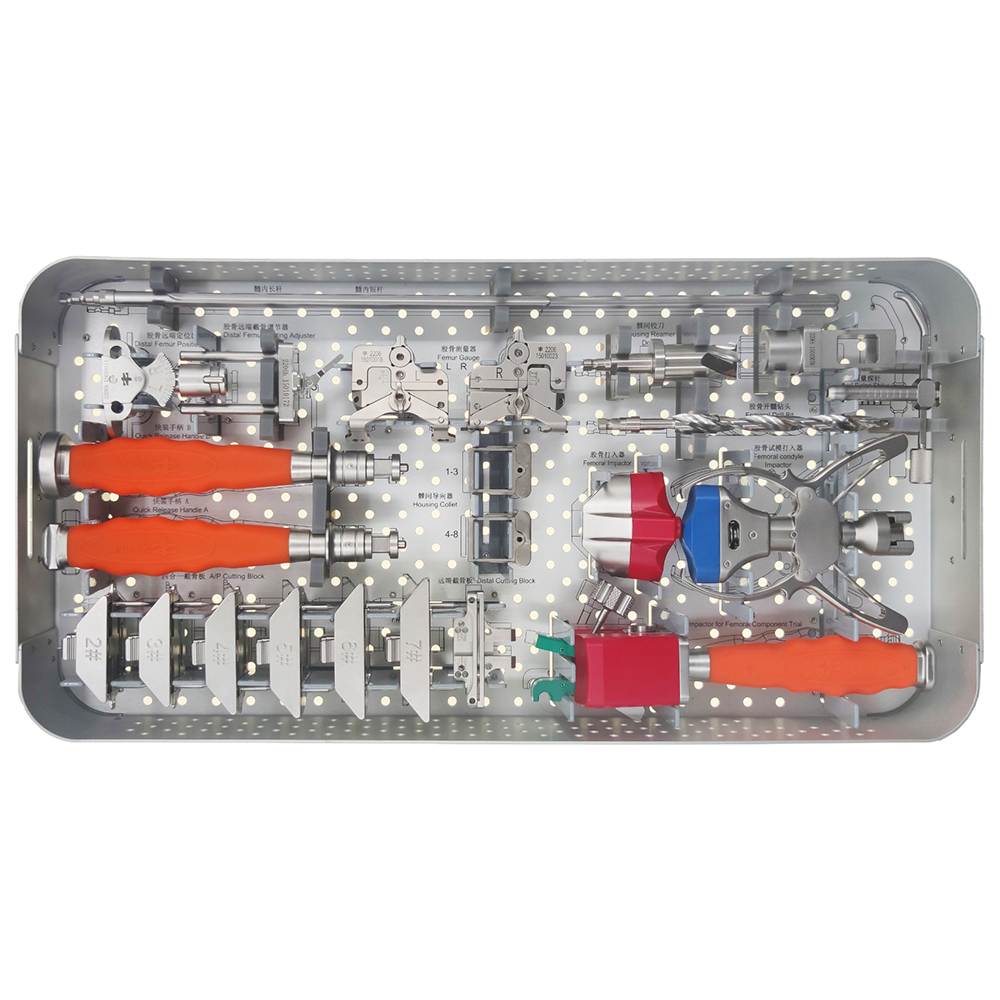

| Sr No. | Product Code | English Name | Quantity |
|---|---|---|---|
| 1 | 15010003 | Femoral Drill Bit | 1 |
| 2 | 15010004 | Intramedullary Long Rod | 1 |
| 3 | 15010008 | Distal Cutting Block | 1 |
| 4 | 15010171 | Distal Femur Locator | 1 |
| 5 | 15010172 | Distal Femoral Osteotomy Adjuster | 1 |
| 6 | 15010018 | Sizing Guide Left | 1 |
| 7 | 15010023 | Sizing Guide Right | 1 |
| 8 | 15010017 | Femoral Sizing Stylus | 1 |
| 9 | 15010009 | A/P Cutting Block 7# | 1 |
| 10 | 15010010 | A/P Cutting Block 2# | 1 |
| 11 | 15010011 | A/P Cutting Block 3# | 1 |
| 12 | 15010012 | A/P Cutting Block 4# | 1 |
| 13 | 15010013 | A/P Cutting Block 5# | 1 |
| 14 | 15010014 | A/P Cutting Block 6# | 1 |
| 15 | 15010020 | Femoral Impactor | 1 |
| 16 | 15010068 | Housing Collet | 1 |
| 17 | 15010069 | Housing Collet | 1 |
| 18 | 15010073 | Intramedullary Short Rod | 1 |
| 19 | 15010076 | Housing Box Chisel | 1 |
| 20 | 15010130 | Impactor for Femoral Component Trial | 1 |
| 21 | 15010074 | Housing Reamer Dome | 1 |
| 22 | 15010174 | Impactor B for Femoral Component Trial | 1 |
| 23 | 15010175 | Quick-coupling Handle A | 1 |
| 24 | 15010176 | Quick-coupling Handle B | 1 |

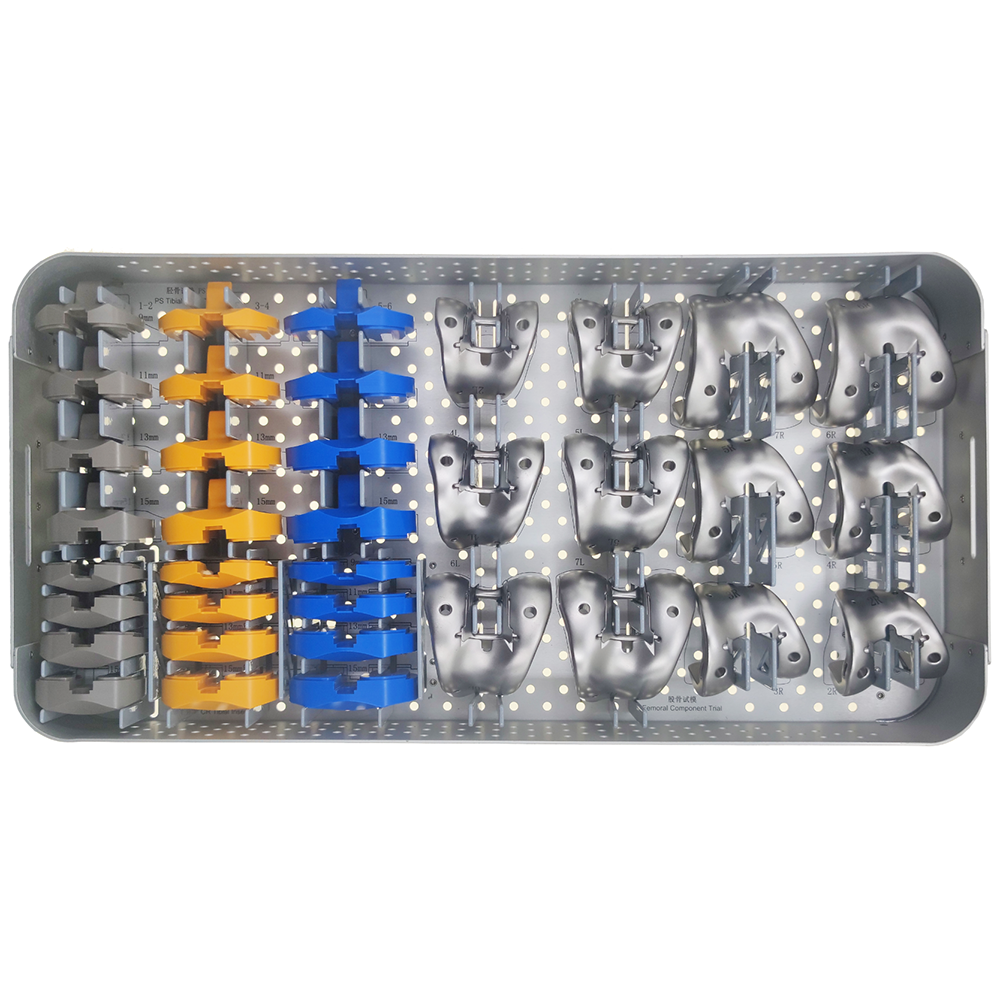

| Sr No. | Product Code | English Name | Quantity |
|---|---|---|---|
| 1 | 15010079 | Femoral Component Trial 7L | 1 |
| 2 | 15010080 | Femoral Component Trial 2L | 1 |
| 3 | 15010081 | Femoral Component Trial 3L | 1 |
| 4 | 15010082 | Femoral Component Trial 4L | 1 |
| 5 | 15010083 | Femoral Component Trial 5L | 1 |
| 6 | 15010084 | Femoral Component Trial 6L | 1 |
| 7 | 15010085 | Femoral Component Trial 7R | 1 |
| 8 | 15010086 | Femoral Component Trial 2R | 1 |
| 9 | 15010087 | Femoral Component Trial 3R | 1 |
| 10 | 15010088 | Femoral Component Trial 4R | 1 |
| 11 | 15010089 | Femoral Component Trial 5R | 1 |
| 12 | 15010090 | Femoral Component Trial 6R | 1 |
| 13 | 15010091 | PS Tibia Insert Trial | 1 |
| 14 | 15010092 | PS Tibia Insert Trial | 1 |
| 15 | 15010093 | PS Tibia Insert Trial | 1 |
| 16 | 15010094 | PS Tibia Insert Trial | 1 |
| 17 | 15010095 | PS Tibia Insert Trial | 1 |
| 18 | 15010096 | PS Tibia Insert Trial | 1 |
| 19 | 15010097 | PS Tibia Insert Trial | 1 |
| 20 | 15010098 | PS Tibia Insert Trial | 1 |
| 21 | 15010099 | PS Tibia Insert Trial | 1 |
| 22 | 15010100 | PS Tibia Insert Trial | 1 |
| 23 | 15010101 | PS Tibia Insert Trial | 1 |
| 24 | 15010102 | PS Tibia Insert Trial | 1 |
| 25 | 15010132 | Femoral Intercondylar Module 2# | 1 |
| 26 | 15010133 | Femoral Intercondylar Module 3# | 1 |
| 27 | 15010134 | Femoral Intercondylar Module 4# | 1 |
| 28 | 15010135 | Femoral Intercondylar Module 5# | 1 |
| 29 | 15010136 | Femoral Intercondylar Module 6# | 1 |
| 30 | 15010137 | Femoral Intercondylar Module 7# | 1 |
| 31 | 15010138 | CR Tibia Insert Trial | 1 |
| 32 | 15010139 | CR Tibia Insert Trial | 1 |
| 33 | 15010140 | CR Tibia Insert Trial | 1 |
| 34 | 15010141 | CR Tibia Insert Trial | 1 |
| 35 | 15010142 | CR Tibia Insert Trial | 1 |
| 36 | 15010143 | CR Tibia Insert Trial | 1 |
| 37 | 15010144 | CR Tibia Insert Trial | 1 |
| 38 | 15010145 | CR Tibia Insert Trial | 1 |
| 39 | 15010146 | CR Tibia Insert Trial | 1 |
| 40 | 15010147 | CR Tibia Insert Trial | 1 |
| 41 | 15010148 | CR Tibia Insert Trial | 1 |
| 42 | 15010149 | CR Tibia Insert Trial | 1 |

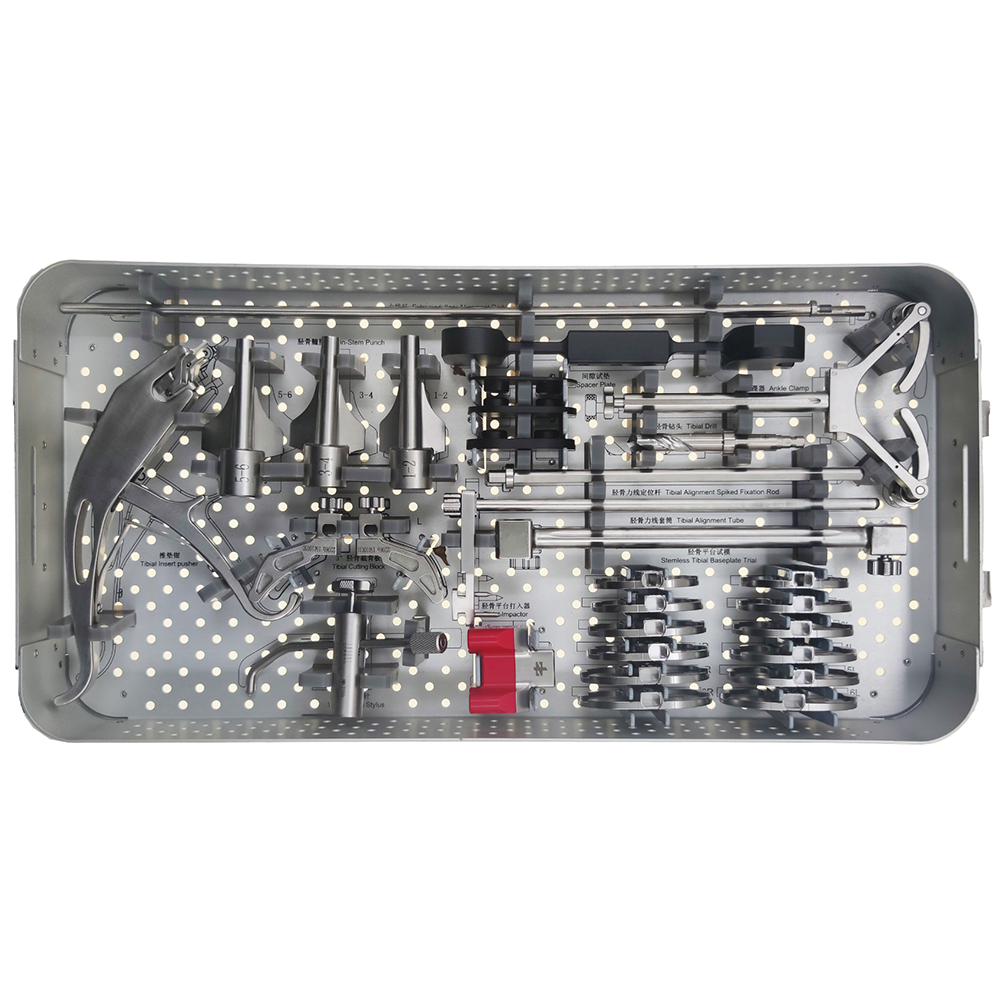

| Sr No. | Product Code | English Name | Quantity |
|---|---|---|---|
| 1 | 15010001 | Extramedullary Alignment Rod | 2 |
| 2 | 15010028 | Tibial Drill | 1 |
| 3 | 15010029 | Tibial Alignment Spiked Fixation Rod | 1 |
| 4 | 15010030 | 3° Tibial Cutting Block R | 1 |
| 5 | 15010031 | 3° Tibial Cutting Block L | 1 |
| 6 | 15010032 | Tibial Sizing Stylus | 1 |
| 7 | 15010033 | Angle Clamp | 1 |
| 8 | 15010034 | Tibial Alignment Tube | 1 |
| 9 | 15010050 | Fin-Stem Punch 1-2 | 1 |
| 10 | 15010051 | Fin-Stem Punch 3-4 | 1 |
| 11 | 15010052 | Fin-Stem Punch 5-6 | 1 |
| 12 | 15010053 | Tibial Impactor | 1 |
| 13 | 15010056 | Spacer Block | 1 |
| 14 | 15010057 | Spacer Plate 11mm | 1 |
| 15 | 15010058 | Spacer Plate 13mm | 1 |
| 16 | 15010059 | Spacer Plate 15mm | 1 |
| 17 | 15010163 | Tibial Alignment Spiked Fixation Rod B | 1 |
| 18 | 15010126 | Tibial Insert Pusher | 1 |
| 19 | 15010038 | Stemless Tibial Baseplate Trial 1L | 1 |
| 20 | 15010039 | Stemless Tibial Baseplate Trial 2L | 1 |
| 21 | 15010040 | Stemless Tibial Baseplate Trial 3L | 1 |
| 22 | 15010041 | Stemless Tibial Baseplate Trial 4L | 1 |
| 23 | 15010042 | Stemless Tibial Baseplate Trial 5L | 1 |
| 24 | 15010043 | Stemless Tibial Baseplate Trial 6L | 1 |
| 25 | 15010044 | Stemless Tibial Baseplate Trial 1R | 1 |
| 26 | 15010045 | Stemless Tibial Baseplate Trial 2R | 1 |
| 27 | 15010046 | Stemless Tibial Baseplate Trial 3R | 1 |
| 28 | 15010047 | Stemless Tibial Baseplate Trial 4R | 1 |
| 29 | 15010048 | Stemless Tibial Baseplate Trial 5R | 1 |
| 30 | 15010049 | Stemless Tibial Baseplate Trial 6R | 1 |

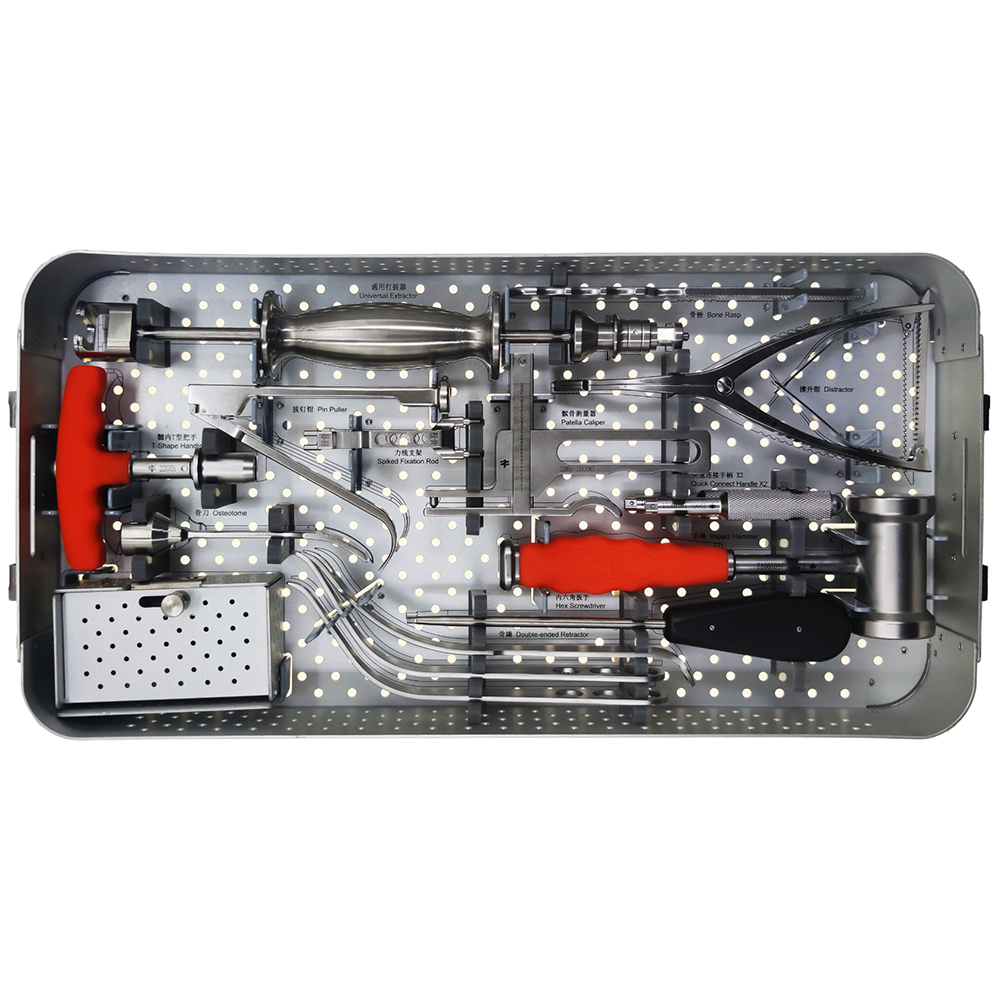

| Sr No. | Product Code | English Name | Quantity |
|---|---|---|---|
| 1 | 15010000 | Distractor | 1 |
| 2 | 15010002 | T-Shape Handle | 1 |
| 3 | 15010021 | Quick Connect Handle | 2 |
| 4 | 15010054 | Hex Wrench | 1 |
| 5 | 15010055 | Universal Extractor | 1 |
| 6 | 15010067 | Patella Caliper | 1 |
| 7 | 15010070 | Osteotome | 1 |
| 8 | 15010071 | Bone Rasp | 1 |
| 9 | 15010072 | Impact Hammer | 1 |
| 10 | 15010114 | Single-ended Retractor | 2 |
| 11 | 15010127 | Pin Puller | 1 |
| 12 | 15010131 | Double-ended Retractor | 1 |
| 13 | 15010154 | Femoral Alignment Spiked Fixation Rod | 1 |
| 14 | 15010161 | Quick-coupling Handle | 1 |
| 15 | 15010162 | Threaded Screw | 4 |
| 16 | 15010025 | Drill Bit | 1 |
| 17 | 15010077 | 3mm Drill Bit | 2 |
| 18 | 15010113 | Screw Holder | 1 |
| 19 | 15010022 | Resection Check | 1 |
| 20 | 15010026 | Short Pin | 4 |
| 21 | 15010027 | Long Pin | 6 |
What is the primary function of a knee instrument set?
A knee instrument set provides orthopedic surgeons with specialized tools designed to perform precise bone resections, correct joint alignment, evaluate trial components, and securely place implants during total or partial knee arthroplasty.
What is the difference between CR and PS trials in a knee instrument kit?
CR (Cruciate-Retaining) components are designed for procedures where the posterior cruciate ligament is preserved, whereas PS (Posterior-Stabilized) sets include trials and intercondylar reaming tools to substitute for a resected posterior cruciate ligament.
Why are sizing guides and trial components necessary?
Trial baseplates, inserts, and femoral modules allow the surgical team to verify joint balance, range of motion, and implant stability before committing to and cementing permanent implants.
How are knee surgical instruments cleaned and maintained?
Knee instruments undergo thorough decontamination, ultrasonic cleaning, lubrication of moving parts, and hospital-grade autoclaving (steam sterilization) according to medical device manufacturer guidelines to ensure sterility and long-term durability.
Are knee instrument kits compatible with both left and right knee surgeries?
Yes, comprehensive knee instrument sets include designated left (L) and right (R) anatomical instruments—such as sizing guides, cutting blocks, and femoral trials—to accommodate specific patient anatomy on either limb.
