Product Description
Recon plate segments allow contouring of plates to fit patient anatomy.
Tapered plate tip for submuscular insertion preserves tissue viability.
Low profile design prevents irritation to soft tissues.
| Specifications & Parameters | Details | |
|---|---|---|
Clavicle Reconstruction Locking Compression Plate
|
Left Orientation | 6 holes x 75mm (Left) |
| Left Orientation | 8 holes x 97mm (Left) | |
| Left Orientation | 10 holes x 119mm (Left) | |
| Left Orientation | 12 holes x 141mm (Left) | |
| Right Orientation | 6 holes x 75mm (Right) | |
| Right Orientation | 8 holes x 97mm (Right) | |
| Right Orientation | 10 holes x 119mm (Right) | |
| Right Orientation | 12 holes x 141mm (Right) | |
| Width | 10.0mm | |
| Thickness | 3.0mm | |
| Matching Screw | 3.5 Locking Screw / 3.5 Cortical Screw / 4.0 Cancellous Screw | |
| Material | Titanium | |
| Surface Treatment | Micro-arc Oxidation | |
| Qualification | CE / ISO13485 / NMPA | |
| Package | Sterile Packaging 1pcs/package | |
| MOQ | 1 Pcs | |
| Supply Ability | 1000+ Pieces per Month | |

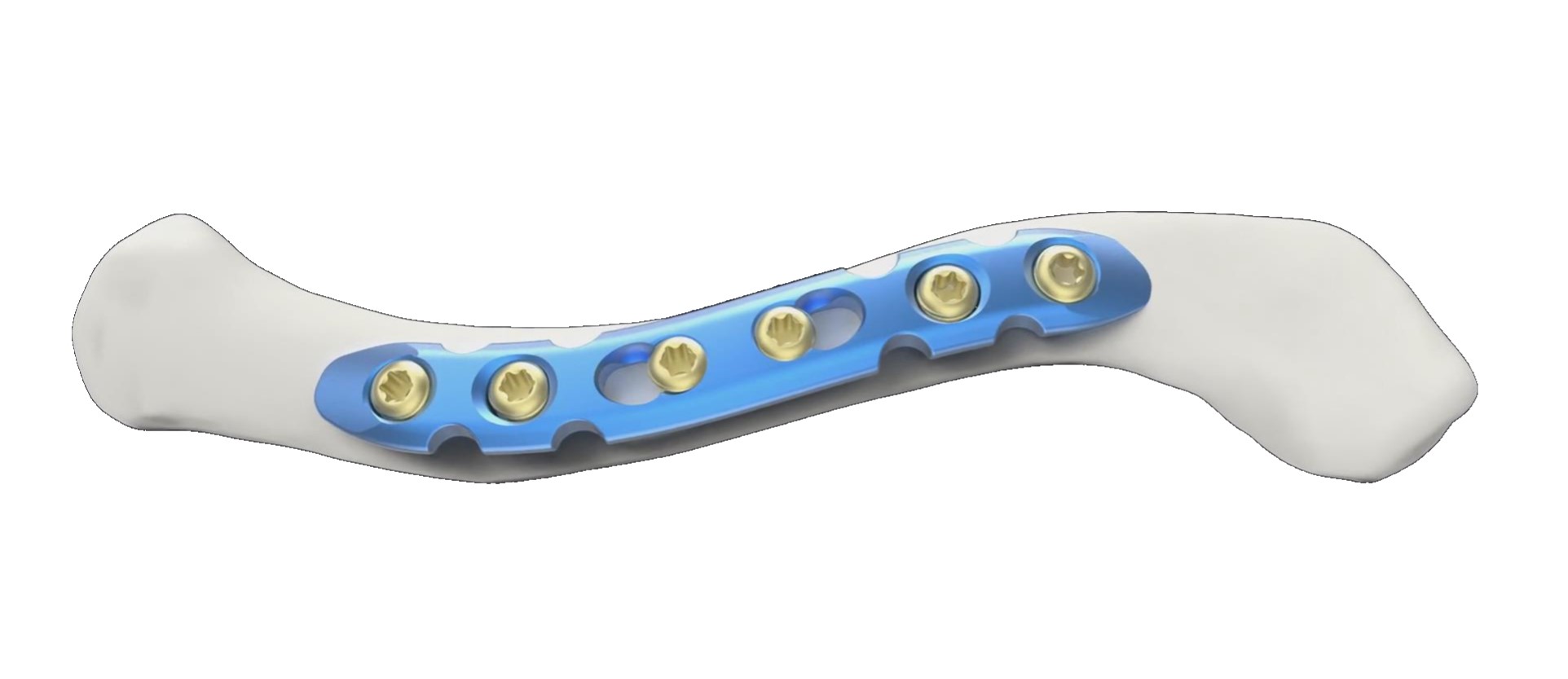

The Clavicle Reconstruction Locking Compression Plate (Clavicle LCP) is an actual surgical implant used for fixation of clavicle fractures. The design principles of the Clavicle LCP include the following:
It is important to note that implant design and specific features may vary among different manufacturers and models. Surgeons evaluate individual patient circumstances and select the most appropriate implant based on considerations such as fracture type, patient anatomy, stability requirements, and surgical technique.
It is indicated for the fixation of fractures, malunions, nonunions, and osteotomies of the clavicle.
The plate is compatible with 3.5 Locking Screws, 3.5 Cortical Screws, and 4.0 Cancellous Screws.
Both Left and Right configurations are available in 6 holes (75mm), 8 holes (97mm), 10 holes (119mm), and 12 holes (141mm), with a width of 10.0mm and thickness of 3.0mm.
The implant is made of Titanium (Titanium Alloy) with a Micro-arc Oxidation surface treatment to enhance durability, strength, and biocompatibility.
The combined holes permit fixation with locking screws for angular stability and cortical screws for intraoperative dynamic compression.
The product is certified under CE, ISO13485, and NMPA standards, supplied in individual sterile packaging (1 pcs/package) with an MOQ of 1 piece.
