Product Description
The lower limb locking plate instrument set is a surgical tool kit specifically designed for orthopedic surgeries involving the lower limbs. This instrument set is essential for surgeons to perform complex procedures fixing fractures or deformities of the femur, tibia, and fibula. The modern locking plate system represents a critical advancement in orthopedic surgery, providing enhanced biomechanical stability and consistent support for accelerated bone healing.

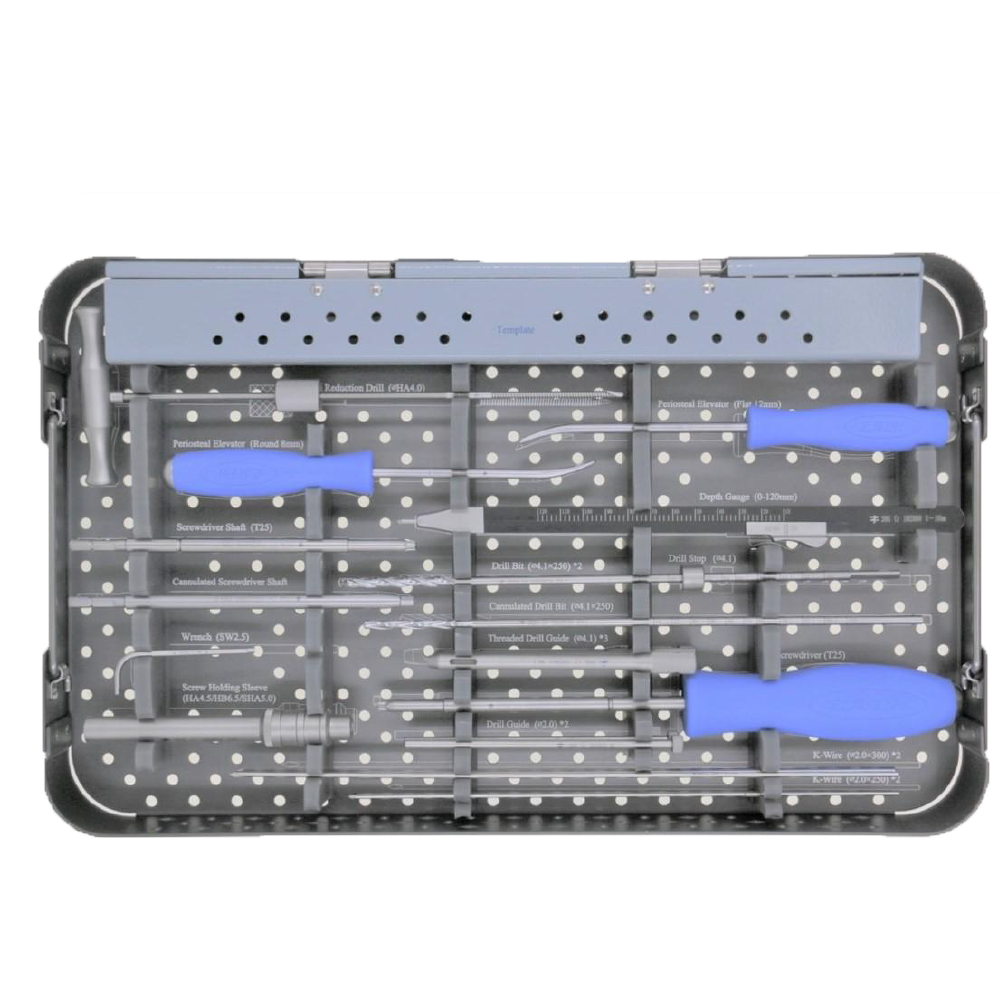

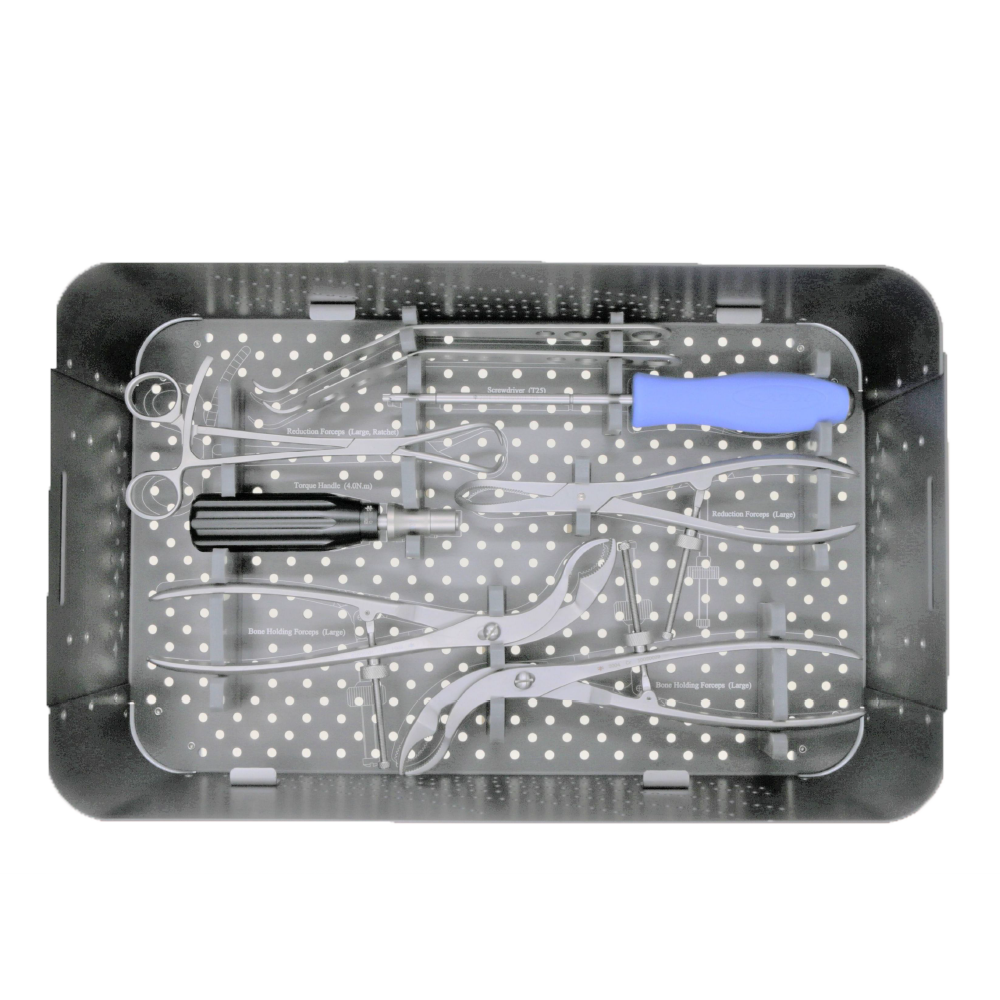

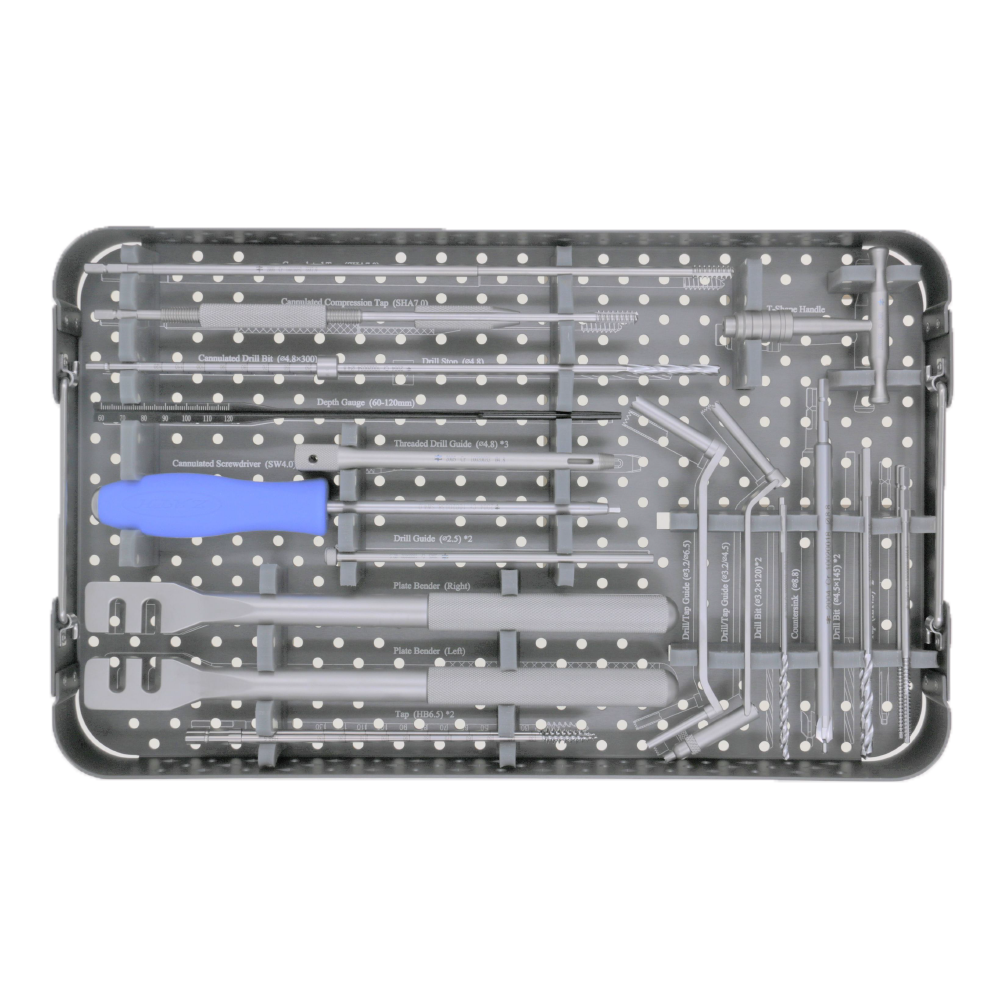

The locking plate instrument set systematically incorporates various locking plates, bone screws, and specialized precision instruments required for the complete surgical implantation process. The orthopedic locking plate adopts a unique mechanism to lock the screws securely into the plate holes, forming a rigid, fixed-angle construct. This advanced engineering is especially advantageous for managing complex or osteoporotic fractures where conventional compression plate fixation fails to supply sufficient mechanical anchorage. The fixed-angle locking mechanism preserves anatomical alignment of fragmented bones and significantly mitigates the risks of clinical malunion or non-union.
Rigid screw-to-plate locking prevents screw loosening and toggle, preserving bone reduction under physical load.
Dedicated instrumentation tailored for high-demand skeletal repair across the femur, tibia, and fibula.
Fully integrated with drills, guides, bone taps, reduction forceps, and torque handles for seamless procedures.

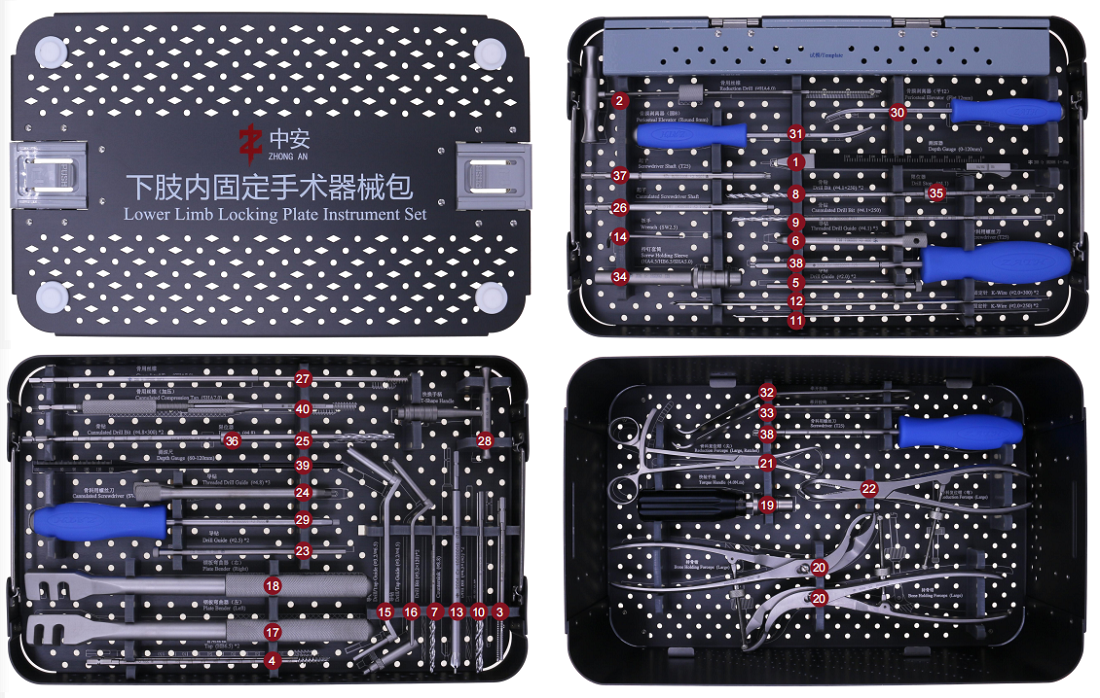

| No. | Production Code | English Name | Specification | Qty |
|---|---|---|---|---|
| 1 | 10020068 | Depth Gauge | 0～120mm | 1 |
| 2 | 10020006 | Reduction Tap | HA4.0 | 1 |
| 3 | 10020008 | Bone Tap | HA4.5 | 2 |
| 4 | 10020009 | Bone Tap | HB6.5 | 2 |
| 5 | 10020010 | Drill Guide | ∅2 | 2 |
| 6 | 10020011 | Threaded Drill Guide | ∅4.1 | 3 |
| 7 | 10020013 | Drill Bit | ∅3.2*120 | 2 |
| 8 | 10020014 | Drill Bit | ∅4.1*250 | 2 |
| 9 | 10020085 | Drill Bit (Cannulated) | ∅4.1*250 | 1 |
| 10 | 10020015 | Drill Bit | ∅4.5*145 | 2 |
| 11 | 10020016 | K-Wire | ∅2.0X250 | 2 |
| 12 | 10020017 | K-Wire | ∅2.5X300 | 3 |
| 13 | 10020018 | Countersink | ∅8.8 | 1 |
| 14 | 10020020 | Wrench | SW2.5 | 1 |
| 15 | 10020022 | Drill/Tap Guide | ∅3.2/∅6.5 | 1 |
| 16 | 10020023 | Drill/Tap Guide | ∅3.2/∅4.5 | 1 |
| 17 | 10020025 | Plate Bender | Left | 1 |
| 18 | 10020026 | Plate Bender | Right | 1 |
| 19 | 10020028 | Torque Handle | 4.0N.M | 1 |
| 20 | 10020029 | Bone Holding Forceps | Large | 2 |
| 21 | 10020030 | Reduction Forceps | Large, Ratchet | 1 |
| 22 | 10020031 | Reduction Forceps | Large | 1 |
| 23 | 10020032 | Drill Guide | ∅2.5 | 2 |
| 24 | 10020033 | Threaded Drill Guide | ∅4.8 | 3 |
| 25 | 10020034 | Cannulated Drill Bit | ∅4.8*300 | 2 |
| 26 | 10020087 | Cannulated Screwdriver Shaft | SW4.0 | 1 |
| 27 | 10020092 | Cannulated Bone Tap | SHA7.0 | 1 |
| 28 | 10020037 | T-Shape Handle | T-Shape | 1 |
| 29 | 10020038 | Cannulated Screwdriver | SW4.0 | 1 |
| 30 | 10020088 | Periosteal Elevator | Flat 12 | 1 |
| 31 | 10020040 | Periosteal Elevator | Round 8 | 1 |
| 32 | 10020041 | Retractor | 16mm | 1 |
| 33 | 10020042 | Retractor | 44mm | 1 |
| 34 | 10020043 | Screw Holding Sleeve | HA4.5/HB6.5 | 1 |
| 35 | 10020072 | Drill Stop | ∅4.1 | 1 |
| 36 | 10020073 | Drill Stop | ∅4.8 | 1 |
| 37 | 10020070 | Screwdriver Shaft | T25 | 1 |
| 38 | 10020071 | Screwdriver | T25 | 2 |
| 39 | 10020086 | Depth Gauge | 60-120mm | 1 |
| 40 | 10020089 | Compression Bone Tap | SHA7.0 | 1 |

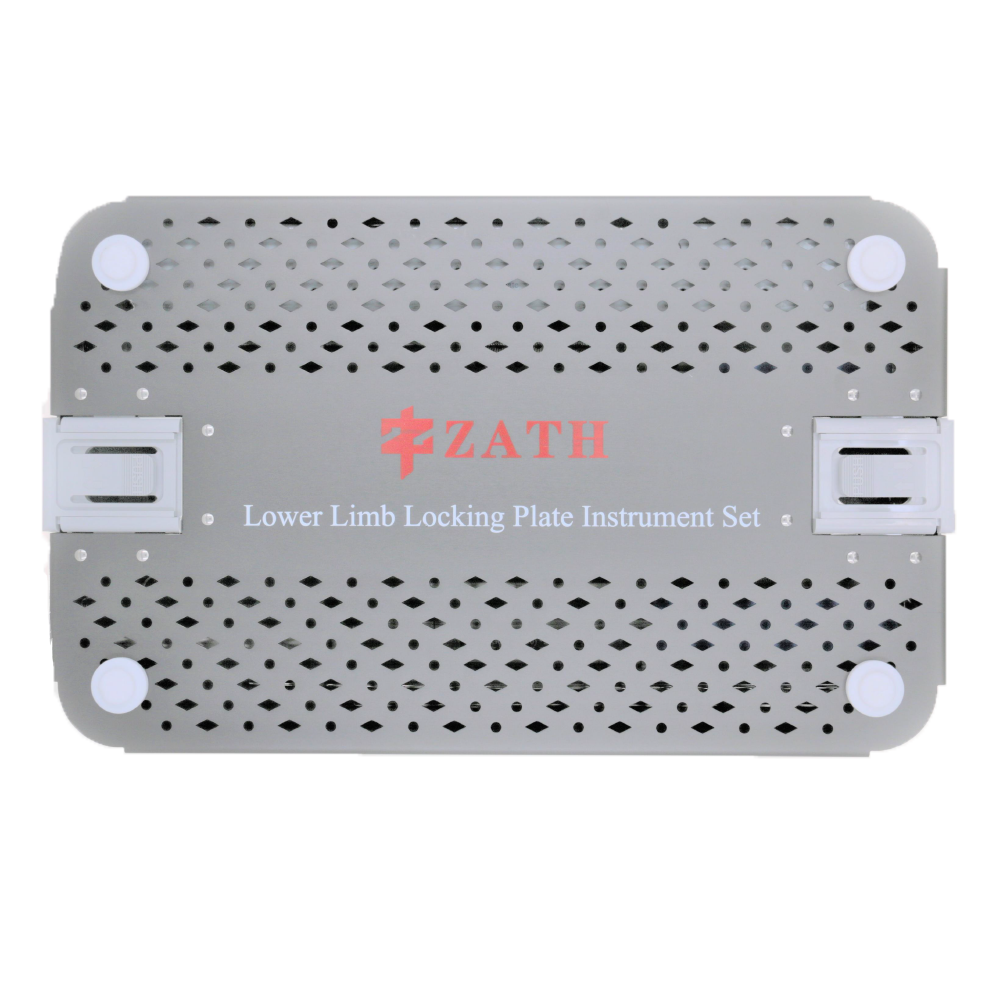

| 41 | 10020081 | Instrument Box | Standard | 1 |
