Product Description
Stable Fixation & Early Mobilization
The main function of the manual locking plate instrument set is to provide a stable structure for early mobilization of affected areas. The locking mechanism of the board ensures that the screws remain firmly fixed even under the pressure of movement. This is particularly beneficial for complex fractures where traditional fixation methods cannot provide sufficient stability.
Anatomical Precision & Efficiency
The orthopedic instrument locking plate includes locking plates of various sizes and shapes to accommodate different hand anatomical structures. Surgeons can choose appropriate locking plates based on the specific type of fracture and the patient’s anatomical structure. The complete set of tools includes drill bits, screwdrivers, depth gauges, etc., aimed at improving work efficiency and accuracy.
| Serial No. | Production Code | English Name | Specification | Quantity |
|---|---|---|---|---|
| 1 | 10010079 | Drill Bit | ∅1.4 | 2 |
| 2 | 10010077 | Tap | HA2.0 | 1 |
| 3 | 10010056 | Drill Guide | ∅1.4 | 2 |
| 4 | 10010058 | Drill Guide | ∅1.4/HA 2.0 | 1 |
| 5 | 10010059 | Depth Gauge | 0~30mm | 1 |
| 6 | 10010111 | Periosteal Elevator | — | 1 |
| 7 | 10010063 | Screwdriver | T6 | 1 |
| 8 | — | Box | — | 1 |
It is an orthopedic surgical toolkit specifically engineered for stabilizing and fixating small bone fractures in the hand and wrist, aligning bone fragments precisely to ensure optimal recovery.
The locking design fastens the screws securely into the plate, forming a fixed-angle construct that maintains stability under physiological load and permits safe, early postoperative mobilization.
Unlike conventional plates that depend on bone-plate friction, locking plates provide rigid internal fixation even in osteopenic bone or multifragmentary fractures, reducing the risk of primary or secondary reduction loss.

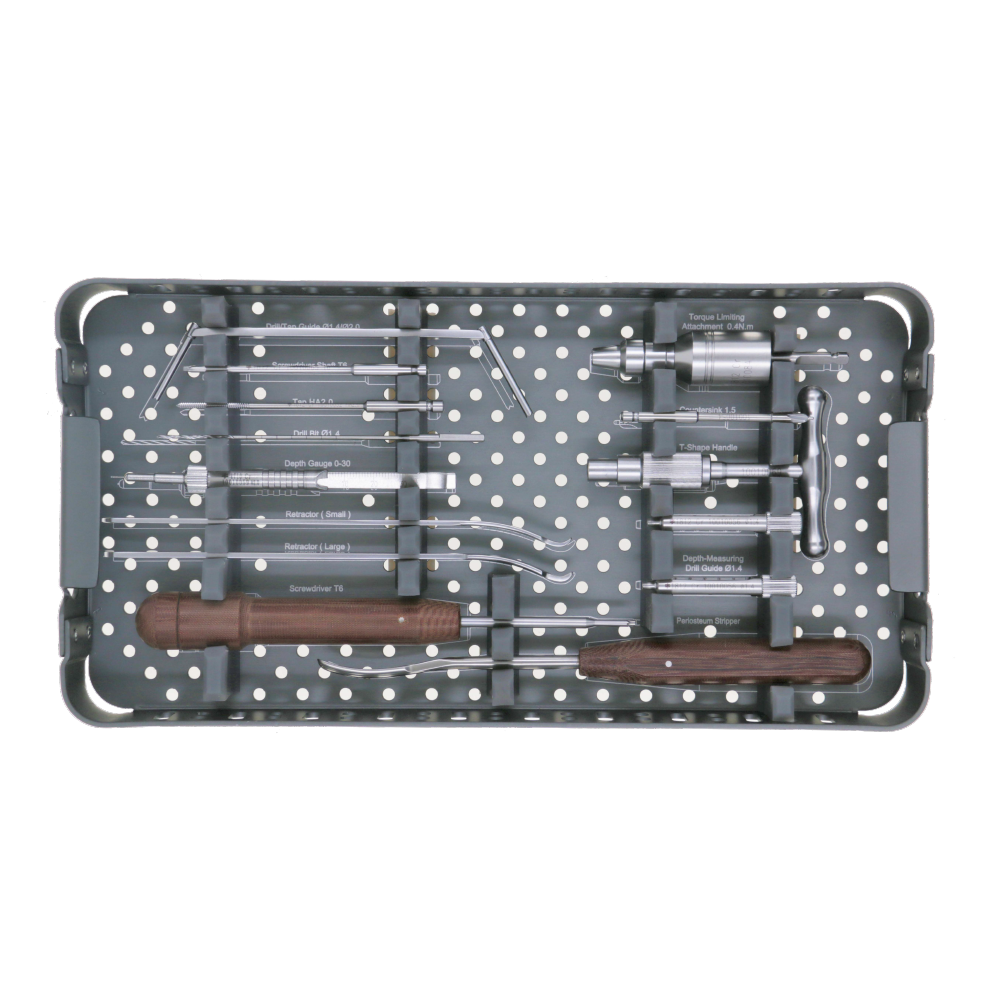

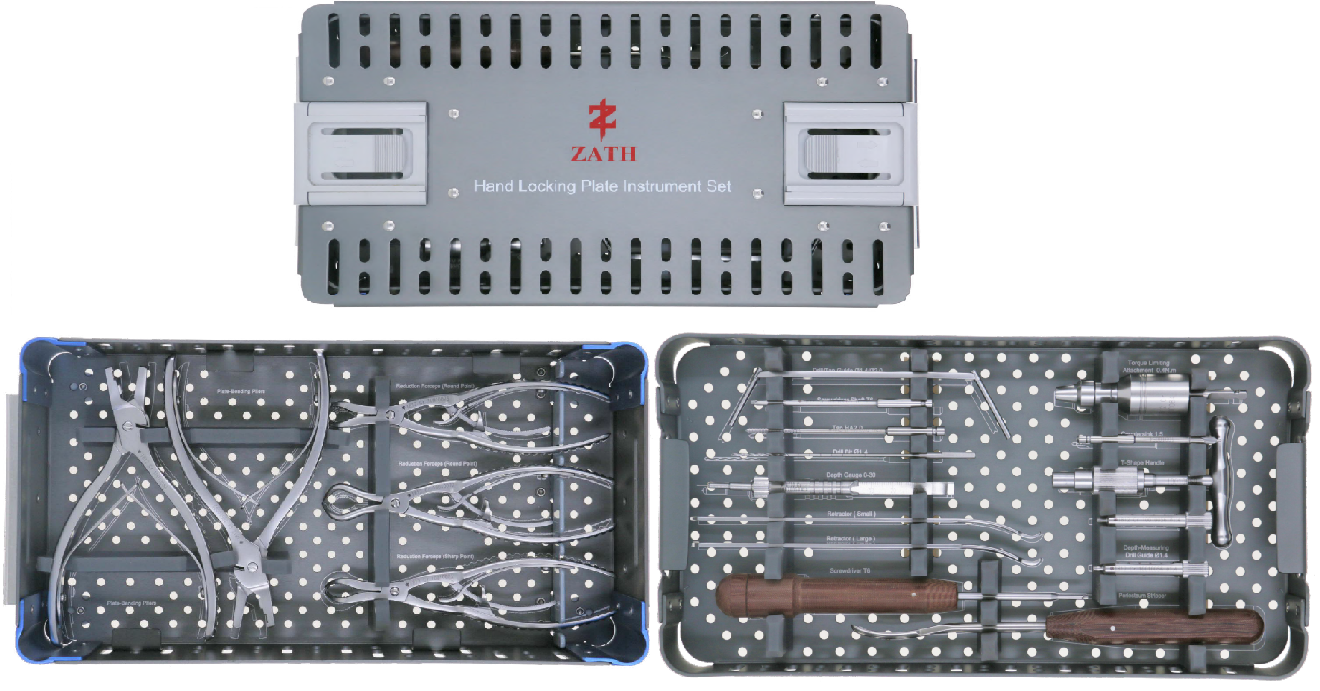

The Lite kit comes equipped with essential surgical instruments, including dedicated drill bits (∅1.4), taps (HA2.0), multiple drill guides, a depth gauge (0~30mm), a periosteal elevator, a T6 screwdriver, and a storage sterilization box.
Yes, the system includes plates in multiple shapes and configurations, allowing orthopedic surgeons to select the best match for individual skeletal structures and specific fracture patterns.
