Product Description
ZATH CE Approved Upper Limb Locking Plate Instrument Set
What is Cannulated Screw Instrument Set?
The Upper Limb Locking Plate Instrument Set is a specialized surgical tool designed for upper limb (including shoulder, arm, wrist) orthopedic surgery. This instrument is an essential tool for surgeons to perform upper limb fracture fixation, osteotomy, and other reconstruction surgeries.
The main components of the upper limb locking plate instrument include locking plates, screws, and various surgical instruments, which help with the precise placement and stability of these orthopedic implants.
Locking plate is particularly advantageous as they increase the stability and support of fractures, leading to better healing outcomes. The locking mechanism ensures that the screw can be firmly fixed in place even under dynamic loads, which is crucial for the movement and function of the upper limb.
In addition to locking plates and screws, the surgical instrument typically include tools such as drill bits, screwdrivers, and depth gauges. These instruments are designed to assist surgeons in accurately measuring, drilling, and securing steel plates onto bones. The ergonomic design of these tools enhances the surgeon's ability to accurately and control complex surgeries.

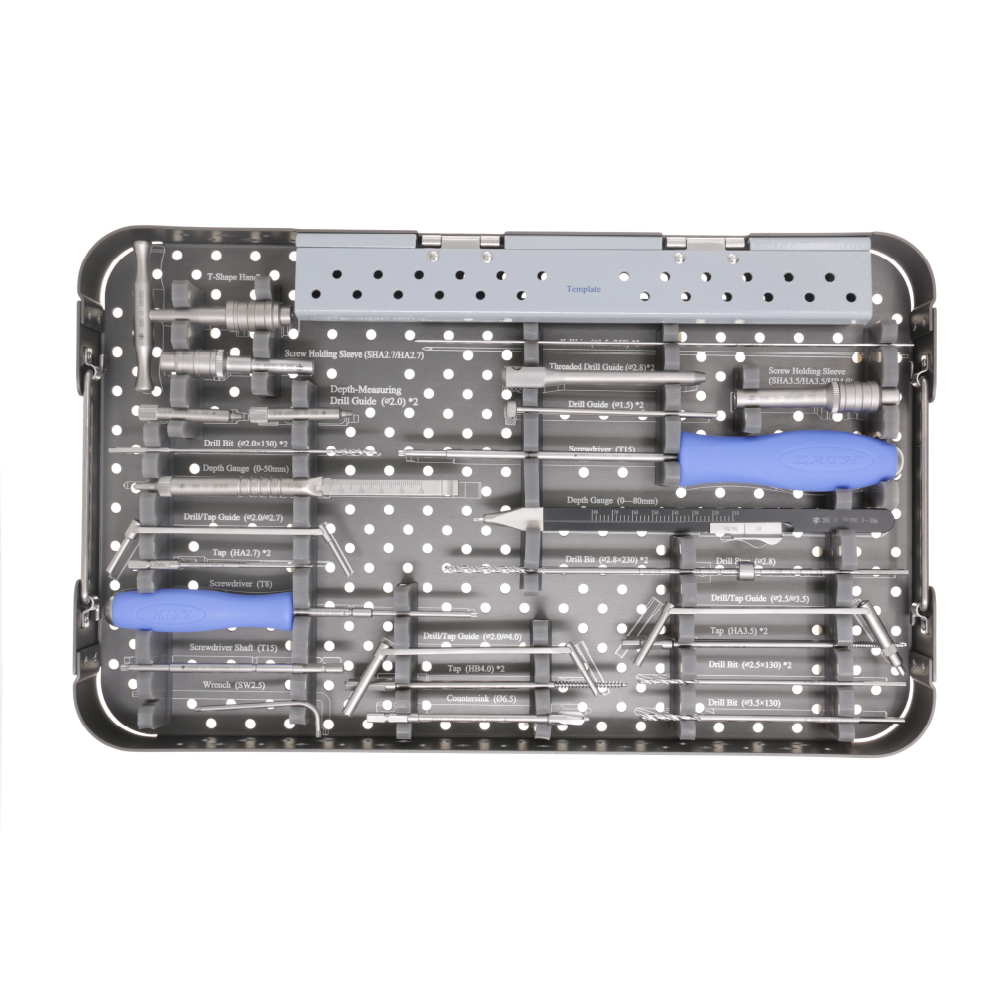

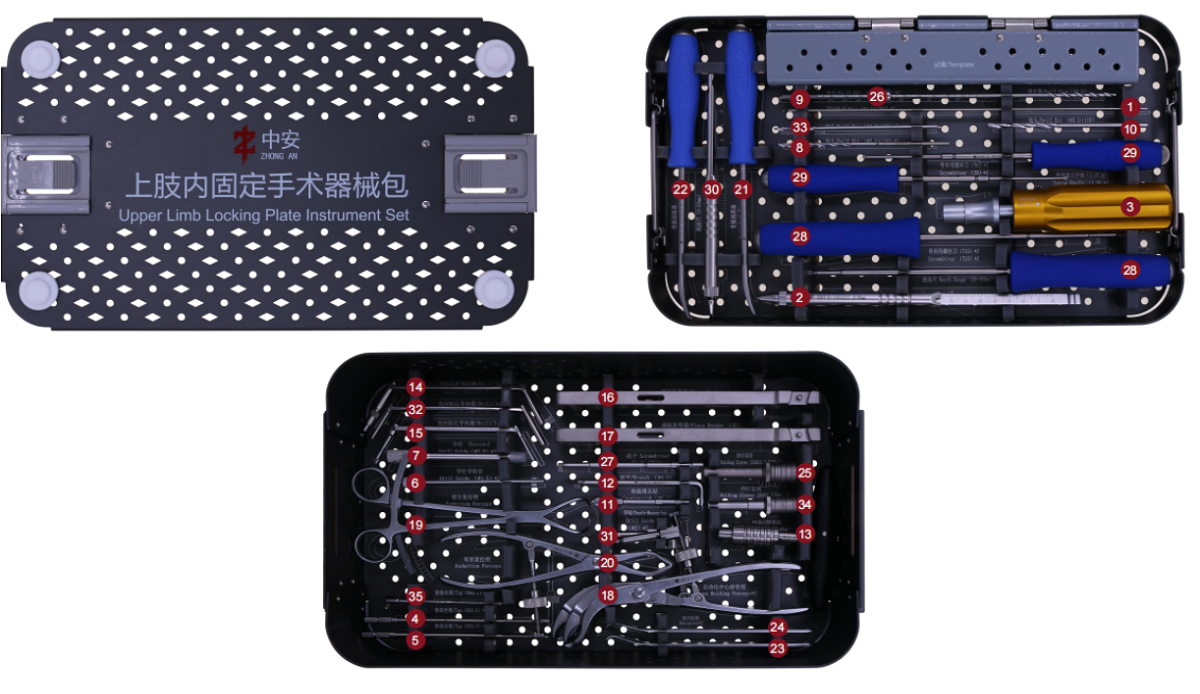

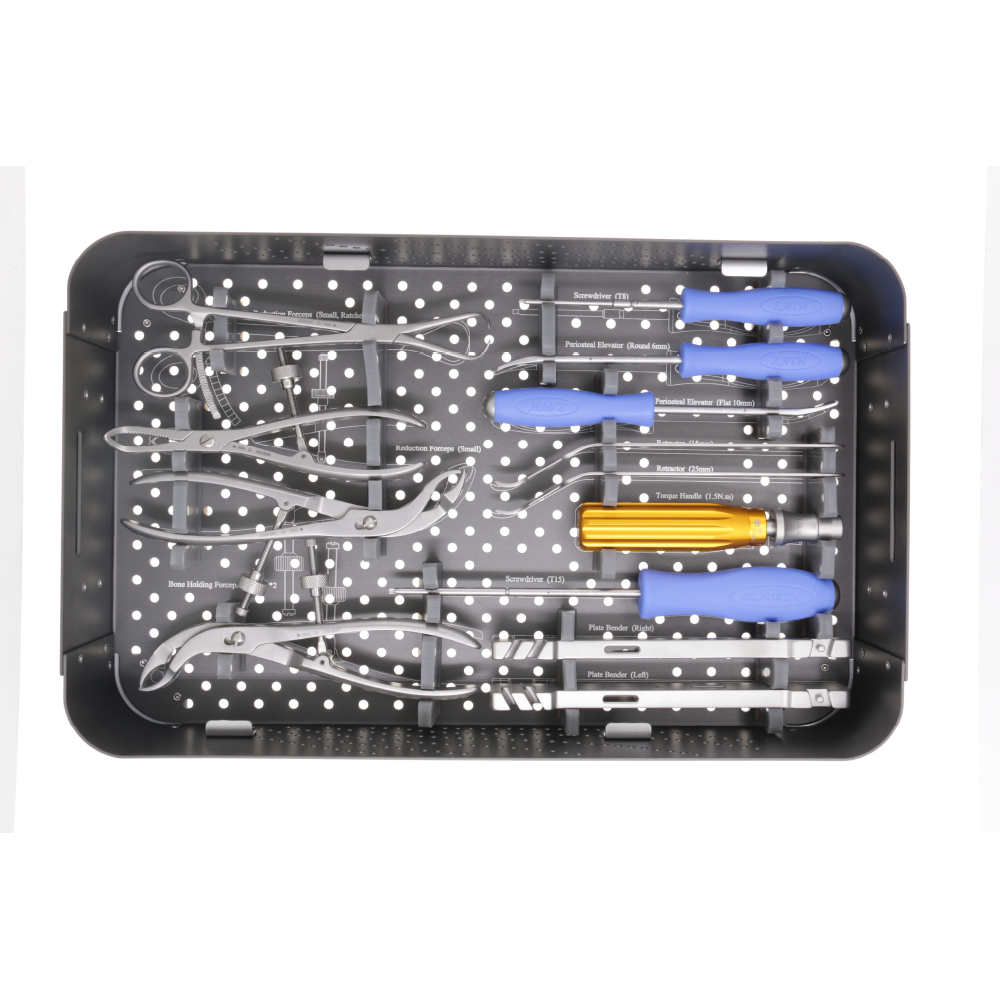

Set Configuration & Specifications
| Upper Limb Locking Plate Instrument Set | ||||
|---|---|---|---|---|
| Serial No. | Production Code | English Name | Specification | Quantity |
| 1 | 10010002 | K-wire | ∅1.5x250 | 3 |
| 2 | 10010093 / 10010117 | Depth Gauge | 0～80mm | 1 |
| 3 | 10010006 | Torque Handle | 1.5N·M | 1 |
| 4 | 10010008 | Tap | HA3.5 | 1 |
| 5 | 10010009 | Tap | HB4.0 | 1 |
| 6 | 10010010 | Drill Guide | ∅1.5 | 2 |
| 7 | 10010011 | Threaded Drill Guide | ∅2.8 | 2 |
| 8 | 10010014 | Drill Bit | Φ2.5*130 | 2 |
| 9 | 10010088 | Drill Bit | Φ2.8*230 | 2 |
| 10 | 10010016 | Drill Bit | Φ3.5*130 | 2 |
| 11 | 10010017 | Countersink | ∅6.5 | 1 |
| 12 | 10010019 | Wrench | SW2.5 | 1 |
| 13 | 10010021 | T-shape Handle | T-Shape | 1 |
| 14 | 10010023 | Drill/Tap Guide | ∅2.5/∅3.5 | 1 |
| 15 | 10010024 | Drill/Tap Guide | ∅2.0/∅4.0 | 1 |
| 16 | 10010104 | Plate Bender | Left | 1 |
| 17 | 10010105 | Plate Bender | Right | 1 |
| 18 | 10010027 | Bone Holding Forceps | Small | 2 |
| 19 | 10010028 | Reduction Forceps | Small, Ratchet | 1 |
| 20 | 10010029 | Reduction Forceps | Small | 1 |
| 21 | 10010031 | Periosteal Elevator | Round 6 | 1 |
| 22 | 10010108 | Periosteal Elevator | Flat 10 | 1 |
| 23 | 10010109 | Retractor | - | 1 |
| 24 | 10010032 | Retractor | - | 1 |
| 25 | 10010033 | Screw Holding Sleeve | SHA3.5/HA3.5/HB4.0 | 1 |
| 26 | 10010090 | Drill Stop | ∅2.8 | 1 |
| 27 | 10010046 | Screwdriver Shaft | T15 | 1 |
| 28 | 10010047 | Screwdriver | T15 | 2 |
| 29 | 10010062 | Screwdriver | T8 | 2 |
| 30 | 10010107 | Depth Gauge | 0-50mm | 1 |
| 31 | 10010057 | Depth-Measuring Drill Guide | ∅2 | 2 |
| 32 | 10010081 | Drill/Tap Guide | ∅2.0/2.7 | 1 |
| 33 | 10010080 | Drill Bit | ∅2×130 | 2 |
| 34 | 10010094 | Screw Holding Sleeve | SHA2.7/HA2.7 | 1 |
| 35 | 10010053 | Tap | HA2.7 | 1 |

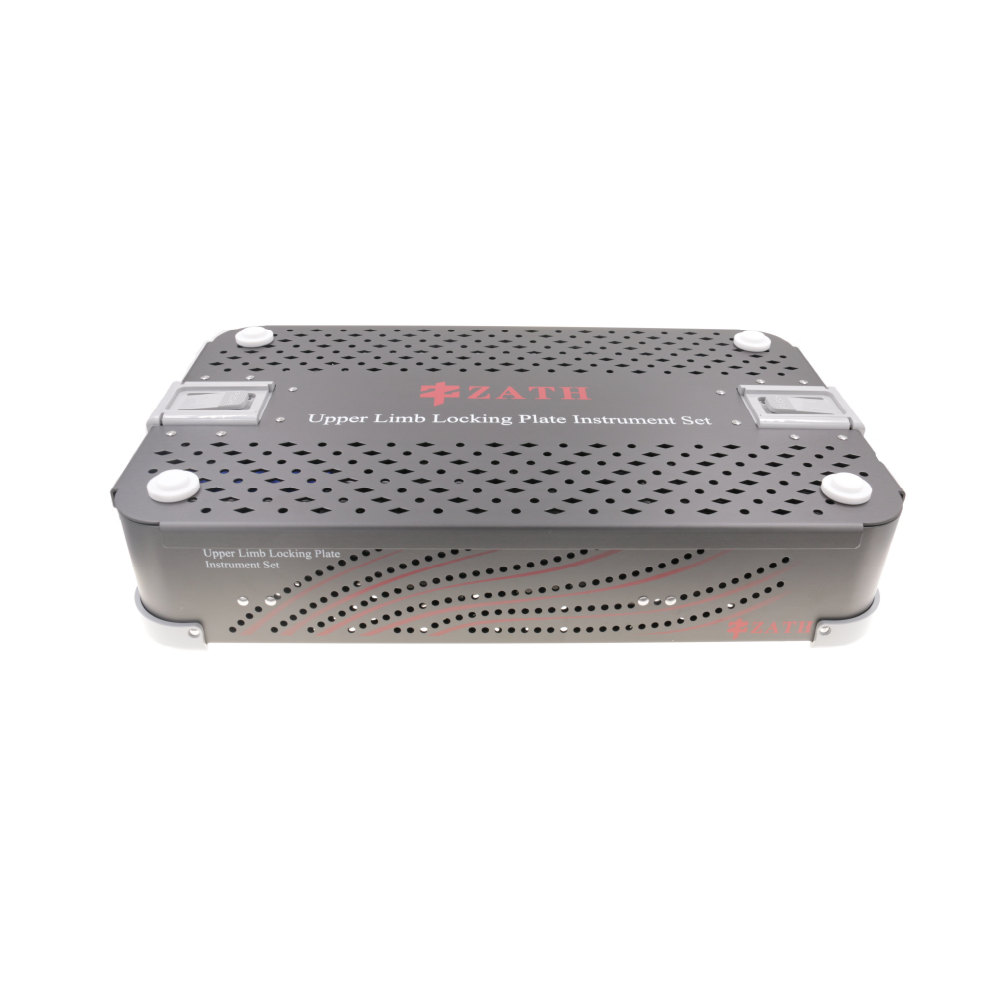

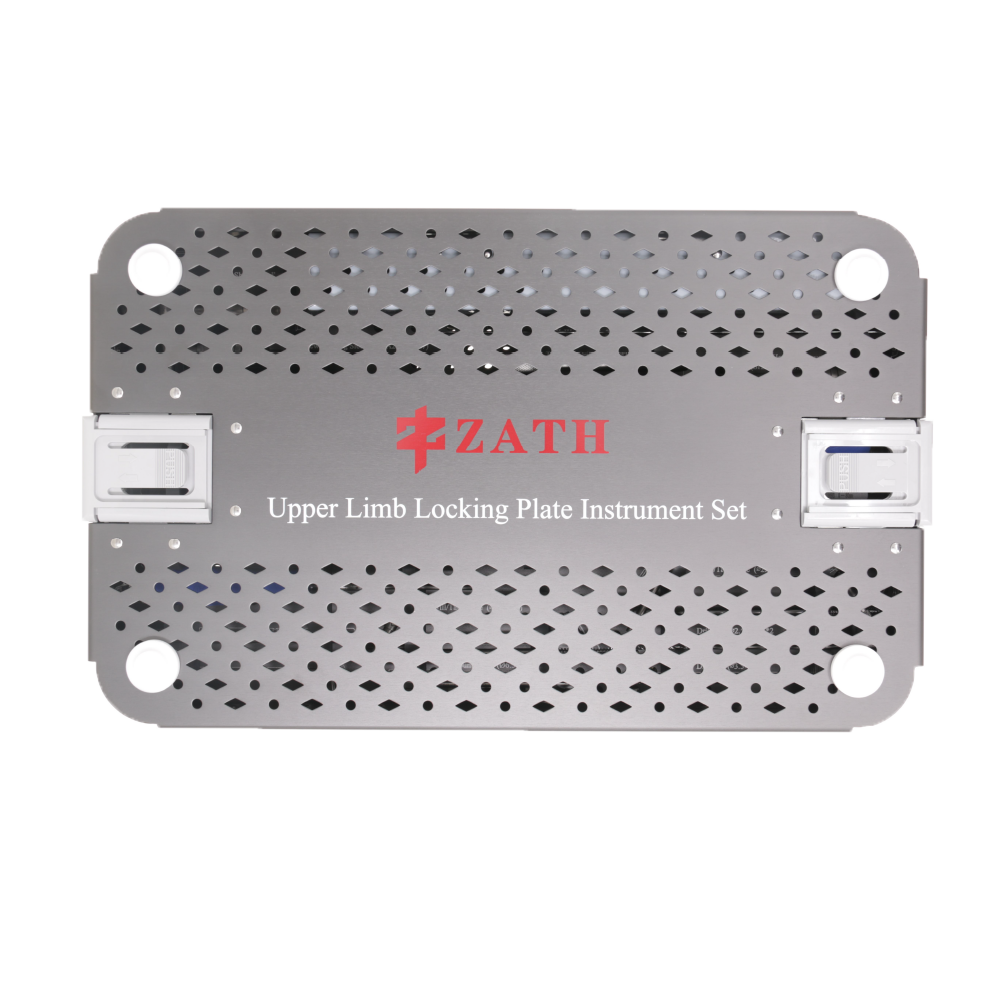

| 36 | 10010095 | Instrument Box | - | 1 |
Frequently Asked Questions (FAQ)
Q What procedures is this Upper Limb Locking Plate Set designed for?
The set is specifically configured for upper limb orthopedic surgeries covering the shoulder, arm, and wrist. Common applications include fracture fixation, osteotomy, and complex bone reconstruction surgeries.
Q Why are locking plates beneficial for upper limb fractures?
Locking plates provide superior structural stability and support compared to conventional systems. The fixed-angle construct ensures screws stay securely locked under dynamic loads, facilitating optimal bone healing and functional recovery.
Q What types of measurement and drilling instruments are included?
The set features various drill bits (ranging from Φ2.0 to Φ3.5), multiple drill guides, depth gauges (0-50mm and 0-80mm), countersinks, and specialized screw holding sleeves for precise intraoperative measurement and screw placement.
Q Are contouring and reduction tools supplied with the set?
Yes, the set includes dedicated plate benders (left and right), small bone holding forceps, ratchet reduction forceps, and periosteal elevators (round and flat) to assist with anatomical contouring and fracture reduction.
Q Is the instrument set compliant with international quality standards?
Yes, the ZATH Upper Limb Locking Plate Instrument Set is CE approved, meeting high clinical standards for medical devices and surgical safety.
