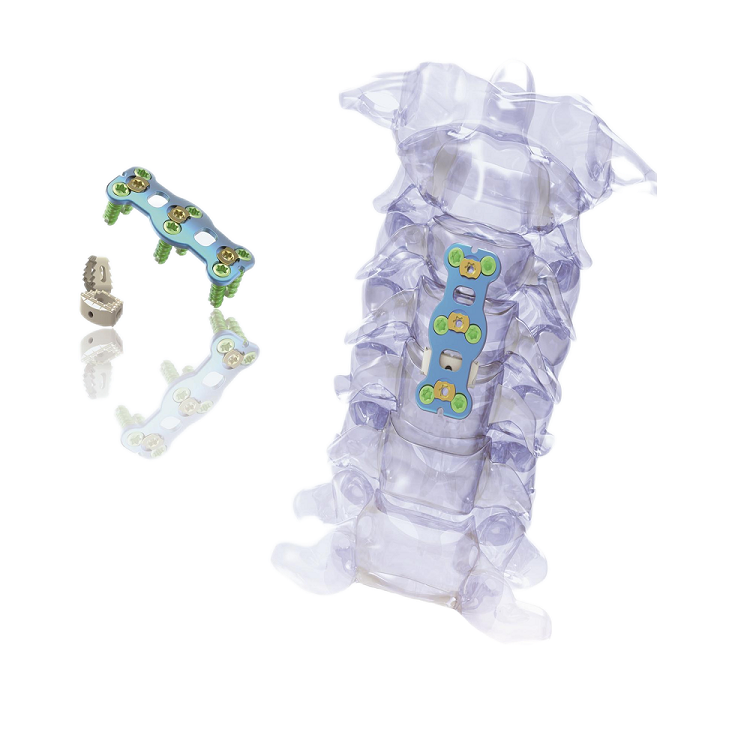

CE Certification High quality Orthopedic Cervical Shielder ACP Plate System Manufacturer, Suppliers
Product Description

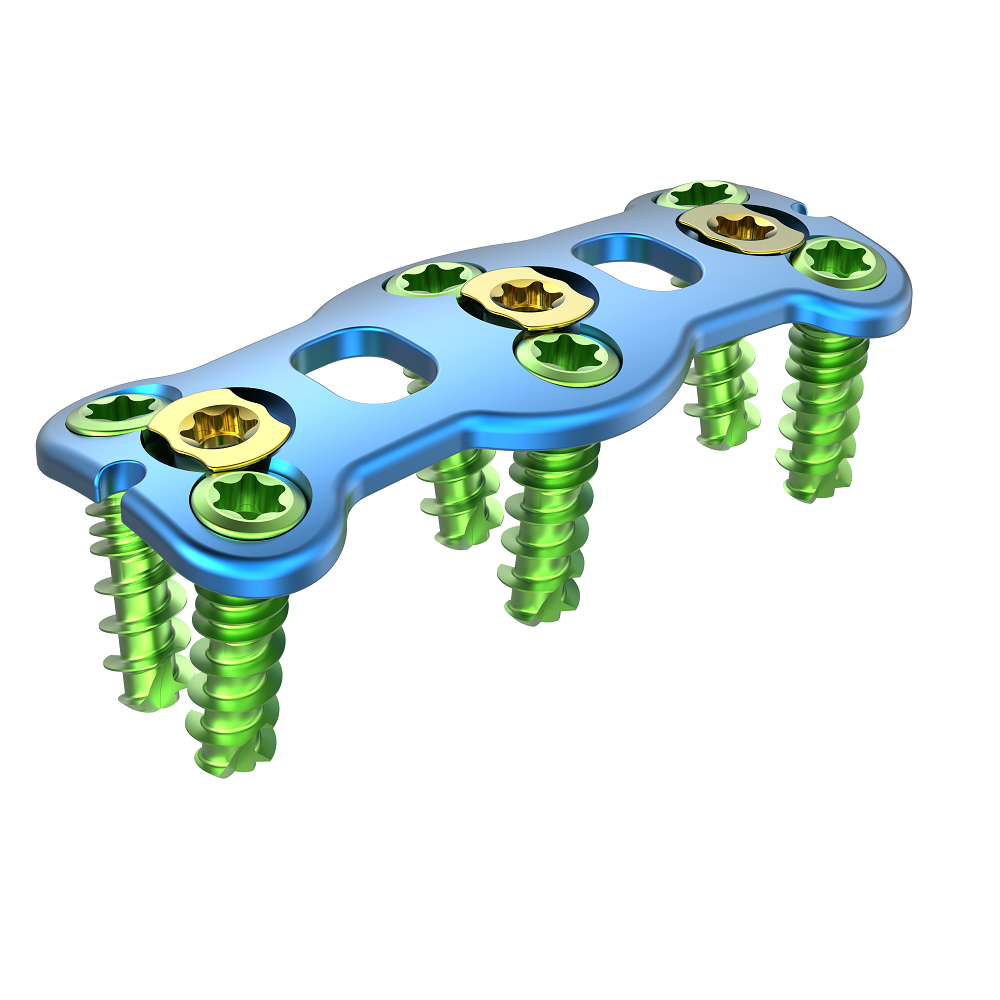

Cervical anterior plate (ACP) is a medical device used in spinal surgery specifically for stabilizing the cervical spine. The Spinal Anterior Cervical Plate is designed for implantation in the anterior part of the cervical spine, providing necessary support during the healing process after discectomy or spinal fusion surgery.

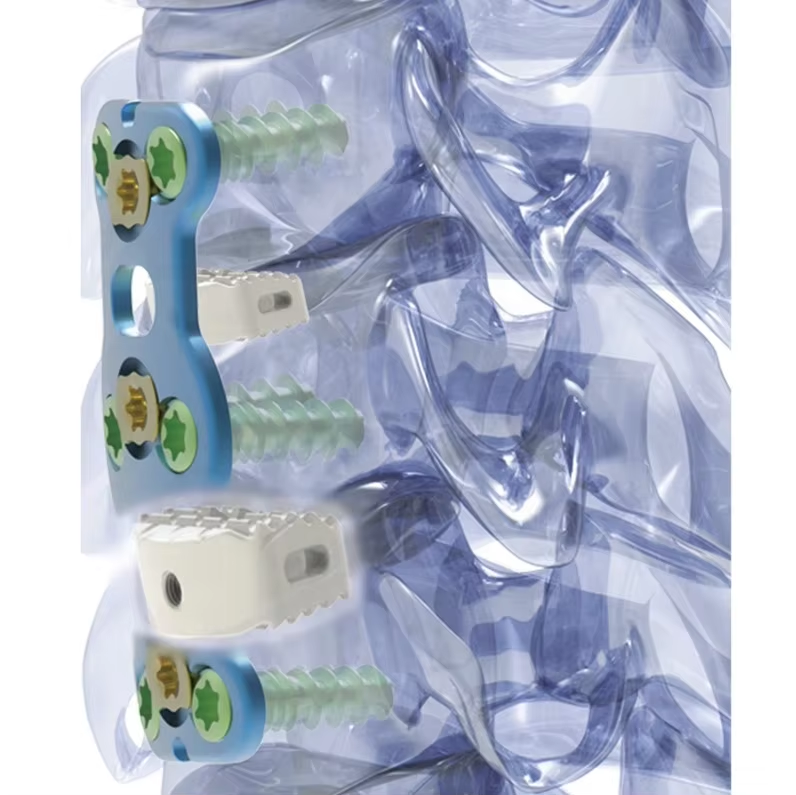

The main function of spinal cervical anterior plate is to enhance the stability of the cervical spine after surgery. When the intervertebral disc is removed or fused, the vertebrae may become unstable, leading to potential complications. The anterior cervical plate (ACP) is like a bridge that connects the vertebrae together, ensuring their correct alignment and promoting healing. It is usually made of biocompatible materials such as titanium or stainless steel to ensure good integration with the body and minimize the risk of rejection.
| Component / Parameter | Specification Details |
|---|---|

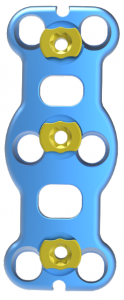

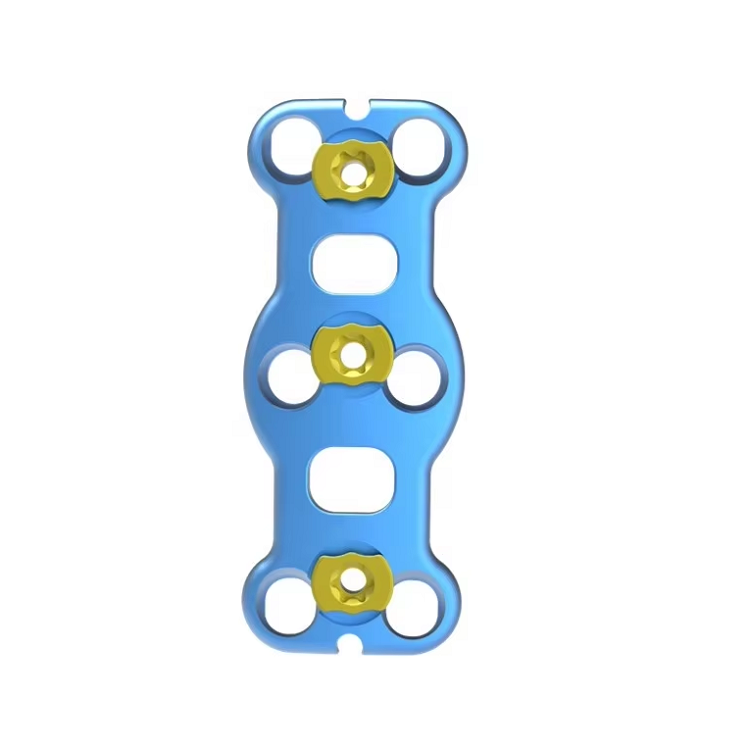

| Shielder ACP Plate | 4 holes: 19.0 mm, 21.0 mm, 23.0 mm, 25.0 mm, 27.5 mm, 30.0 mm length |
| 6 holes: 32.5 mm, 35.0 mm, 37.5 mm, 40.0 mm, 42.5 mm, 45.0 mm, 47.5 mm, 50.0 mm length | |
| 8 holes: 52.5 mm, 55.0 mm, 57.5 mm, 60.0 mm, 62.5 mm, 65.0 mm, 67.5 mm, 70.0 mm, 72.5 mm length | |
| 10 holes: 75.0 mm, 77.5 mm, 80.0 mm length | |
| Shielder Variable Angle Self-tapping Screw | Ф4.0 x 10 mm, 12 mm, 14 mm, 16 mm, 18 mm, 20 mm |
| Ф4.5 x 10 mm, 12 mm, 14 mm, 16 mm, 18 mm, 20 mm | |
| Shielder Variable Angle Self-drilling Screw | Ф4.0 x 10 mm, 12 mm, 14 mm, 16 mm, 18 mm, 20 mm |
| Material | Titanium Alloy |
| Surface Treatment | Micro-arc Oxidation |
| Qualification | CE / ISO13485 / NMPA |
| Package | Sterile Packaging 1pcs/package |
| MOQ | 1 Pcs |
| Supply Ability | 1000+ Pieces per Month |
Indicated for anterior interbody screw fixation from C2 to T1. The system is indicated for use in the temporary stabilization of the anterior spine during the development of cervical spinal fusions in patients with:
- Degenerative disc disease (as defined by neck pain of discogenic origin with degeneration of the disc confirmed by patient history and radiographic studies)
- Trauma (including fractures)
- Tumors
- Deformity (defined as kyphosis, lordosis, or scoliosis)
- Pseudarthrosis, and/or
- Failed previous fusions
- Reduce inflection rate, accelerate bone union, and shorten rehabilitation duration
- Save operative preparation time, especially for emergencies
- Guarantee 100% tracing back
- Increase stock turnover rate and reduce operating cost
- Aligned with the development trend of the orthopedic industry globally

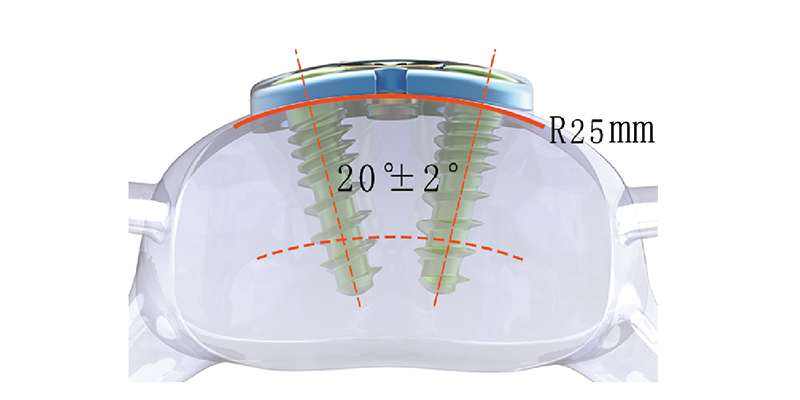

- The pre-bent anatomic design of radius 25 mm fits cervical physical structure.
- The unilateral adduction angle of 10 degree enhances the bone purchase.

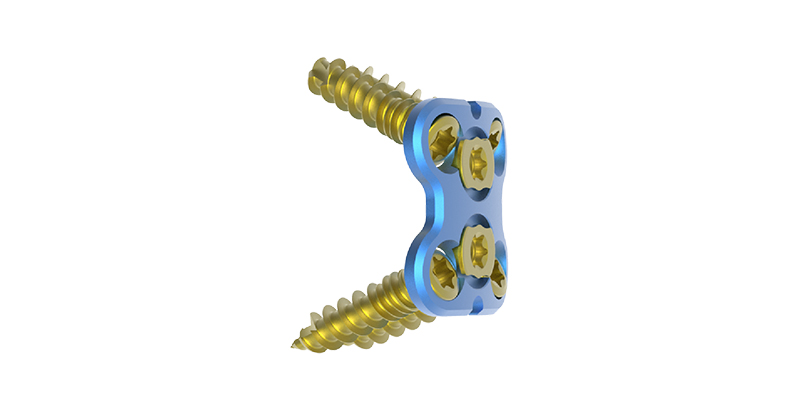

- Combination of short plate options and hyper screw angulations to avoid impingement on adjacent levels
- No profile on the interface of screw head and plate to avoid the esophageal damage and dysphagia

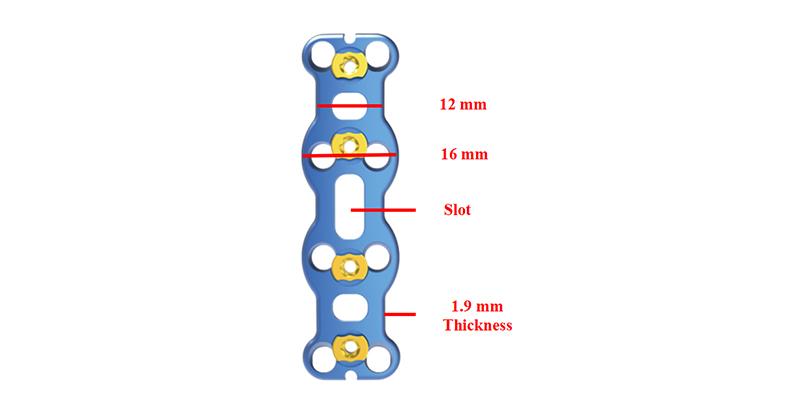

- Coarctate plate shaft: 12 mm; Gradually broadening screwing part: 16 mm

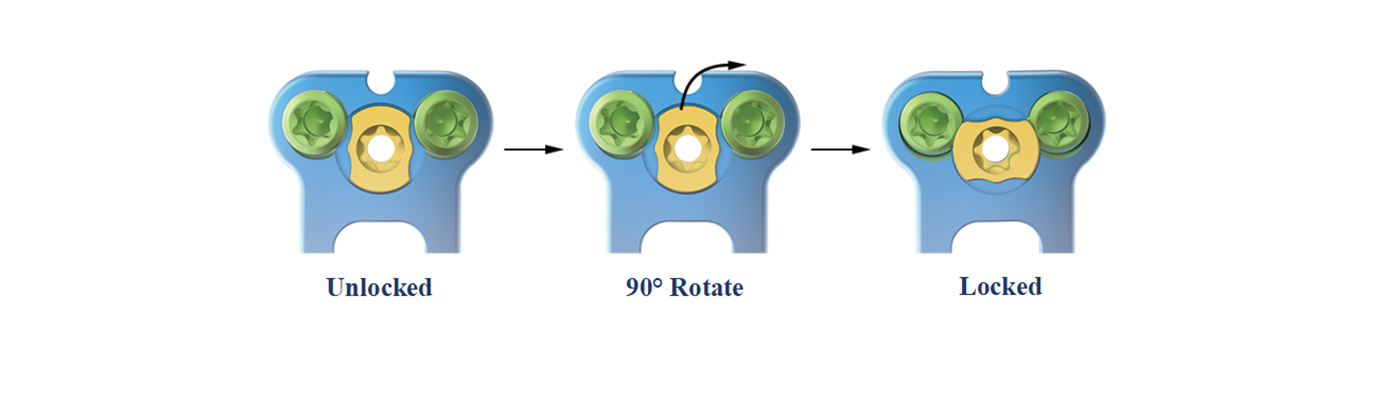

- Slots for additional screw fixation, and unique pre-fixation options
- Low-profile design to reduce the impingement on local anatomical structure, with the plate thickness of only 1.9 mm

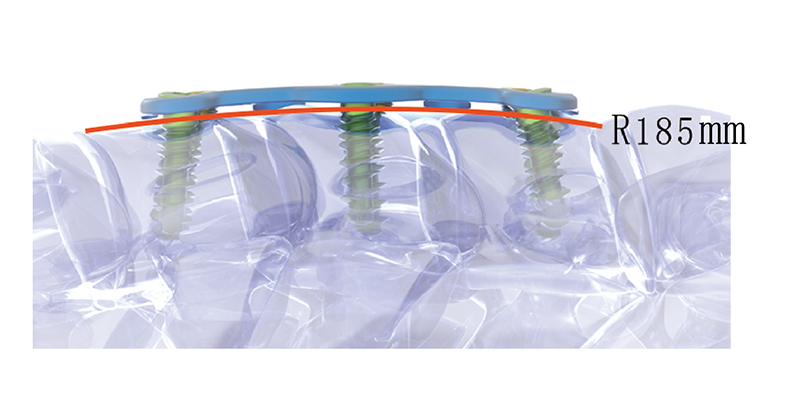

- The pre-bent anatomic design of radius 185 mm provides extra reduction to vertebrae.

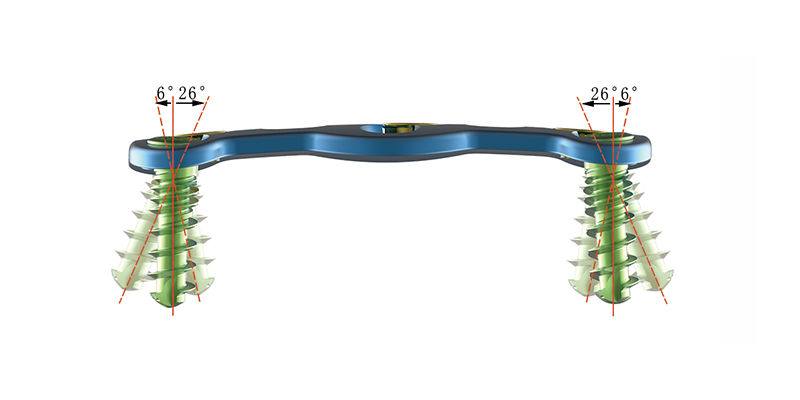

- The screwing technique of super-short plate and hyper screw angulations allows using longer screws, to increase the fixation strength.
- Hyper screw angulations reduces the anterior longitudinal ligament resection.
- Minimize the impingement on anterior longitudinal ligament and adjacent levels.
The system is indicated for temporary stabilization and anterior interbody screw fixation from C2 to T1 during spinal fusion, addressing degenerative disc disease, fractures/trauma, spinal deformities, tumors, pseudarthrosis, and revision of failed prior fusions.
The system is manufactured from high-grade titanium alloy with a micro-arc oxidation surface treatment, providing biocompatibility, excellent corrosion resistance, and high structural strength.
With an ultra-low profile thickness of only 1.9 mm and a seamless zero-profile interface between screw heads and the plate, it significantly lowers local anatomical impingement, protecting esophageal tissue and reducing the risk of postoperative dysphagia.

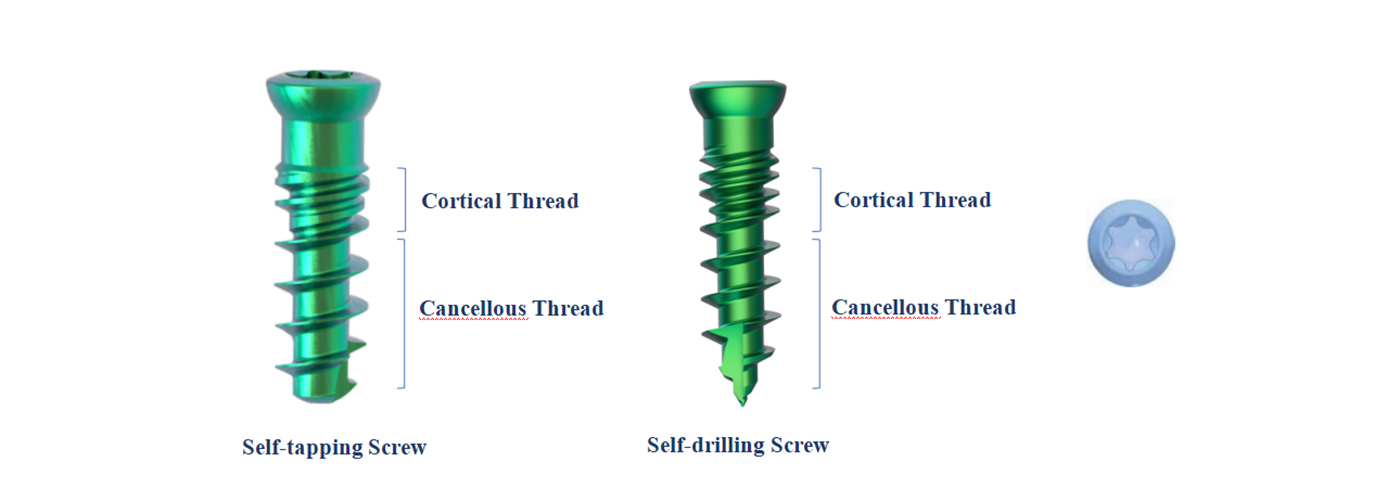

The system provides both Variable Angle Self-tapping Screws (diameters of Ф4.0 mm and Ф4.5 mm, lengths from 10 mm to 20 mm) and Variable Angle Self-drilling Screws (Ф4.0 mm, lengths from 10 mm to 20 mm).
The implants comply with international standards certified by CE, ISO13485, and NMPA. Each unit is delivered in sterile packaging (1 pcs/package) for immediate surgical readiness and complete traceability.
