Product Description
Product Overview & Clinical Application

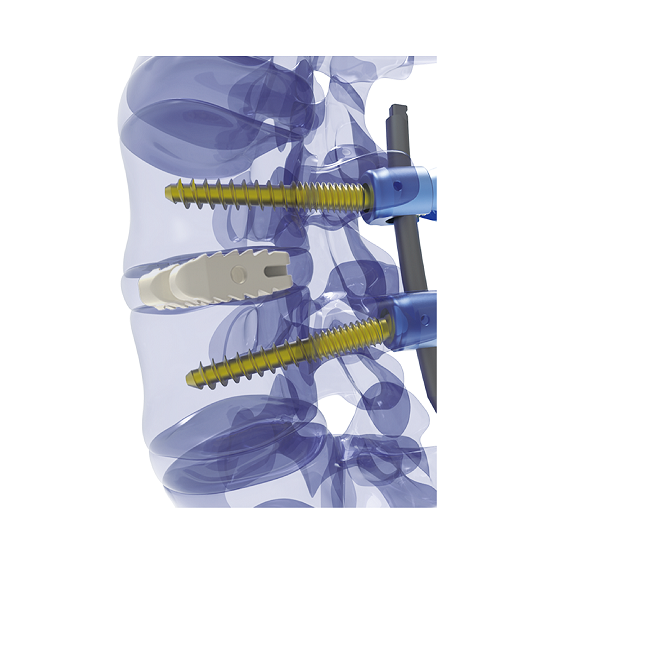

This device is specifically designed to be used in the thoracolumbar spine. It serves as a replacement for a diseased vertebral body that has been surgically removed due to tumors. The primary purpose of this implant is to provide anterior decompression of the spinal cord and neural tissues, relieving any pressure or compression. Additionally, it helps to restore the height of a collapsed vertebral body, ensuring proper alignment and stability in the spine. With its specialized design and functionality, it offers a reliable and effective solution for patients requiring treatment in this area of the spine.
Specifications & Parameters

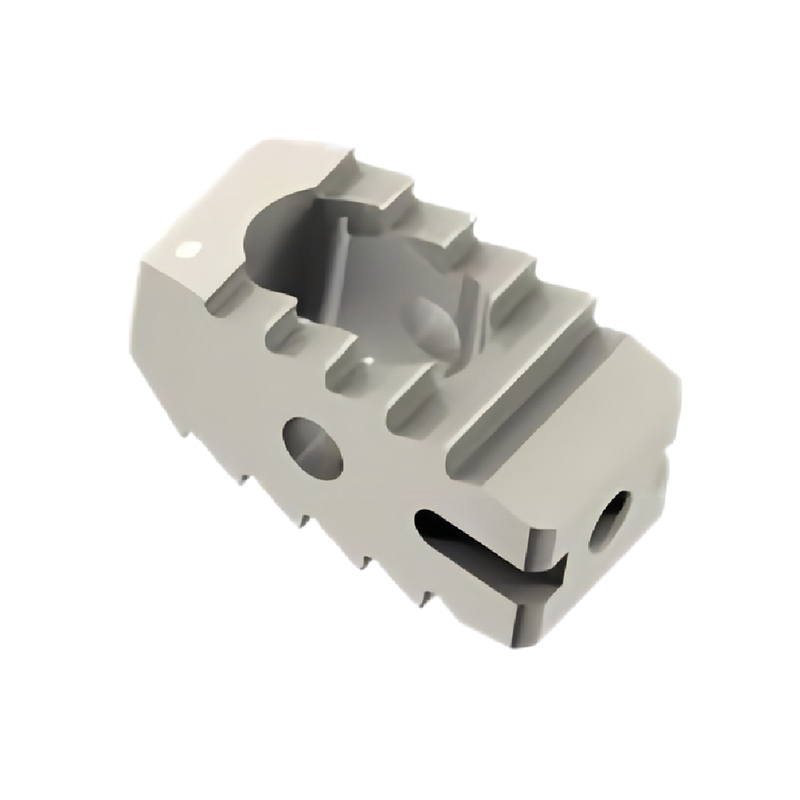

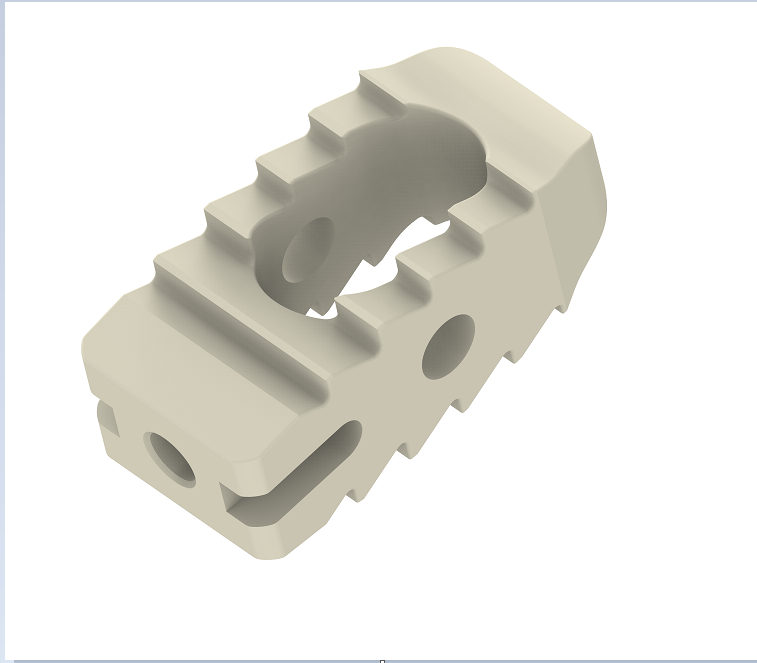

Thoracolumbar Interbody Cage (Straight)
|
8mm×22mm×11mm (H*L*W) |
| 8mm×26mm×11mm (H*L*W) | |
| 9mm×22mm×11mm (H*L*W) | |
| 9mm×26mm×11mm (H*L*W) | |
| 10mm×22mm×11mm (H*L*W) | |
| 10mm×26mm×11mm (H*L*W) | |
| 11mm×22mm×11mm (H*L*W) | |
| 11mm×26mm×11mm (H*L*W) | |
| 12mm×22mm×11mm (H*L*W) | |
| 12mm×26mm×11mm (H*L*W) | |
| 13mm×22mm×11mm (H*L*W) | |
| 13mm×26mm×11mm (H*L*W) | |
| 14mm×22mm×11mm (H*L*W) | |
| 14mm×26mm×11mm (H*L*W) | |
| Material | PEEK |
| Qualification | CE / ISO13485 / NMPA |
| Package | Sterile Packaging 1pcs/package |
| MOQ | 1 Pcs |
| Supply Ability | 1000+ Pieces per Month |

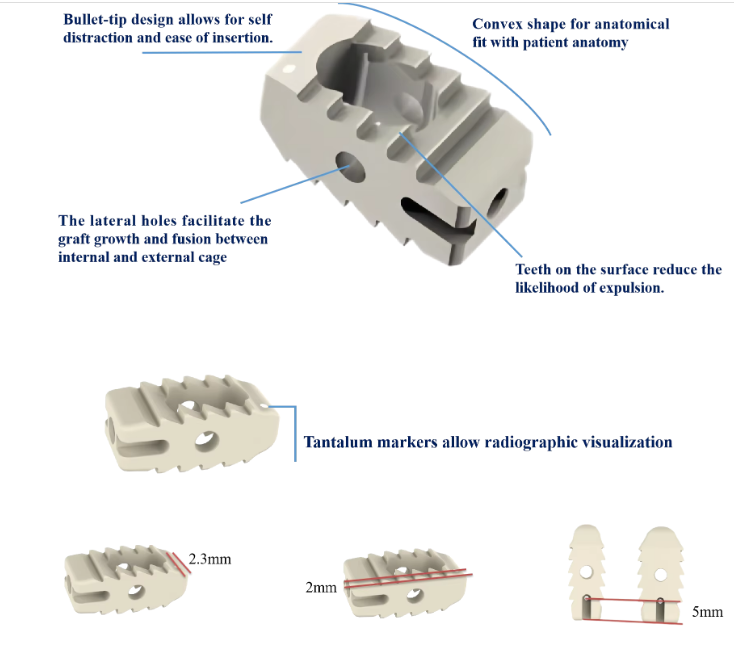

Key Design Features

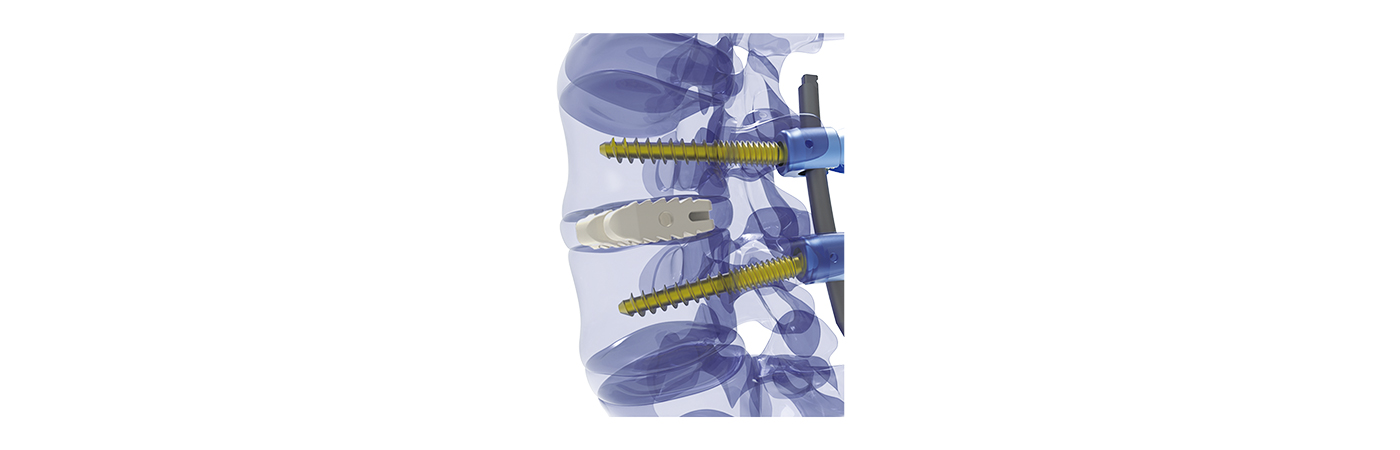

Anatomical Design: Convex shape for anatomical fit with patient anatomy
Stability & Fusion: Teeth on the surface reduce the likelihood of expulsion. The lateral holes facilitate graft growth and fusion between internal and external cage
Insertion Optimization: Bullet-tip design allows for self distraction and ease of insertion

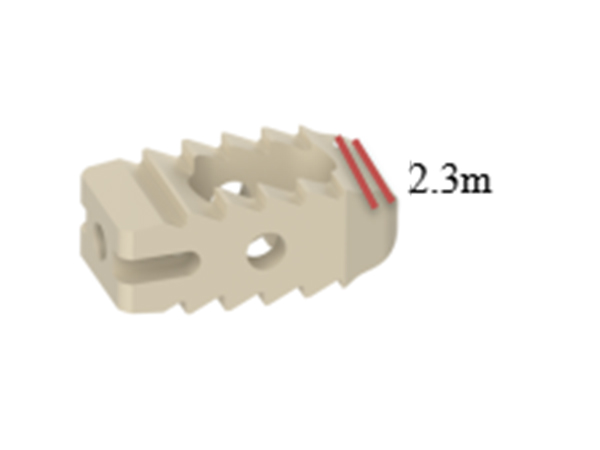

Visualization: Tantalum markers allow radiographic visualization
Surgical Instrumentation & Compatibility

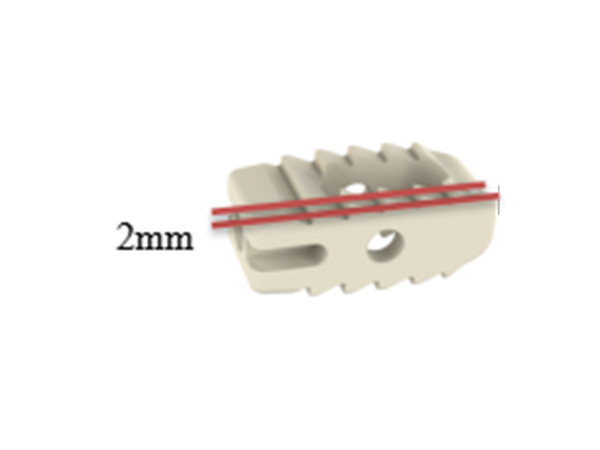

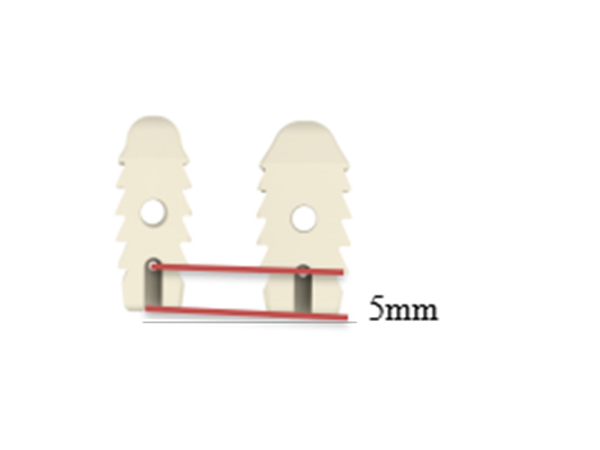

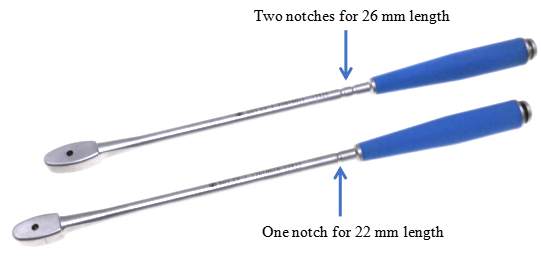

Perfect Connection: Cage and inserter matches perfectly. The holding structure provides enough strength during inserting.

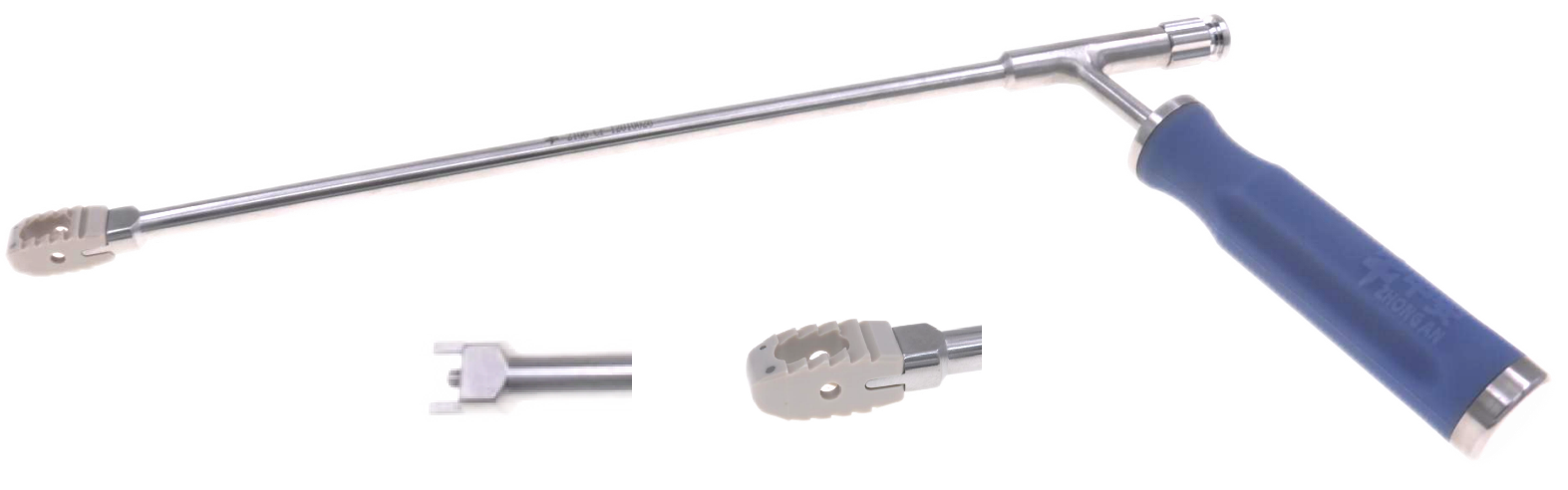

Distractor/Trials: Designed with bullet-tip shape for self-distraction and ease of insertion.
Accurate Sizing: Convex-shaped Trials are designed to fit patient anatomy and allow more accurate sizing.
Operation Accessibility: Slender shafts for visualization; compatible with open or mini-open procedures.
Frequently Asked Questions (FAQ)
What material is the Thoracolumbar Interbody Cage manufactured from?
The cage is made of medical-grade PEEK (Polyetheretherketone), which offers excellent biocompatibility, elasticity close to natural bone, and radiolucency. It is equipped with tantalum markers for clear radiographic visibility.
What are the primary clinical indications for this device?
It is designed for use in the thoracolumbar spine to replace diseased vertebral bodies resected due to tumors, achieve anterior decompression of the spinal cord and neural elements, and restore spinal height and stability.
How does the cage design support interbody bone fusion?
The implant features lateral holes that facilitate extensive bone graft contact and continuous bone growth between the internal and external cage compartments. Furthermore, surface teeth minimize the risk of device migration or expulsion.
What surgical approaches are supported by the instrumentation?
The instrument set features slender shafts for enhanced visualization and bullet-tip trials/distractors, making the system fully compatible with both traditional open and mini-open surgical techniques.
What quality certifications and packaging standards does this product meet?
The product is certified under CE, ISO 13485, and NMPA standards. Each cage is delivered individually in sterile packaging (1 piece/package) ready for operative room use.
What size variations are available for this system?
The cage is available in heights ranging from 8mm to 14mm (in 1mm increments), lengths of 22mm and 26mm, and a standard width of 11mm to provide a comprehensive anatomical fit.
