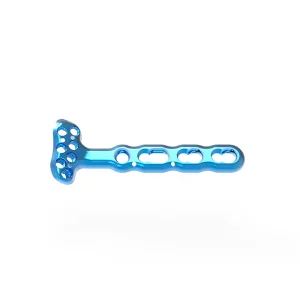

Cheap DVR Locking Compression Plate Factories, Company
Request Quote
Sports Anchor
Famous Titanium Alloy Orthopedic Suture Anchor Titanium Manufacturer Companies, Products
Request Quote
Market Dynamics & Industry Economics
The Global Commercial Landscape of Distal Tibia Osteosynthesis
Analyzing procurement price compression, shifting supply chains, and the engineering balance between affordability and biological fixation.
In contemporary orthopedic trauma surgery, fractures involving the distal third of the tibia—most notably high-energy pilon fractures (AO/OTA 43-A, 43-B, and 43-C) and distal metaphyseal extra-articular fractures—represent one of the most formidable clinical challenges. The anatomical envelope surrounding the distal tibia is notoriously unforgiving: subcutaneous anterior-medial soft tissues are thin, vascularity to the distal metaphyseal-diaphyseal junction is precarious, and mechanical loading during early weight-bearing is immense. Consequently, the advent of the Locking Compression Plate (LCP) Distal Tibia System fundamentally modernized internal fixation by substituting conventional friction-dependent plate compression with fixed-angle, subperiosteal bridge plating.
Historically, global healthcare facilities and national insurance tenders paid astronomical premiums for Western Tier-1 multinational brands. A single pre-contoured anatomical titanium distal tibia locking plate often retailed between $1,200 and $2,800 USD, excluding locking peg screws and specialized insertion guide sleeves. However, macroeconomic shifts over the past decade—driven by DRG (Diagnosis-Related Group) hospital reimbursement models across Europe, centralized volume-based procurement (VBP) programs in Asia, and expansive public hospital construction in Latin America, the Middle East, and Africa—have sparked a global paradigm shift toward factory-direct, cheap LCP distal tibia plate quotes without structural compromise.
The operative phrase "cheap quotes" in advanced surgical equipment no longer denotes sub-par metallurgy or crude machining. In modern orthopedic supply chains, low quotes signify the optimization of raw material sourcing (utilizing certified ASTM F136 Ti-6Al-4V ELI medical-grade bar stock), zero-overhead CNC automation, unified single-site ISO 13485 cleanroom validation, and the elimination of redundant multi-layered marketing margins. Today, sophisticated hospital purchasing consortiums, regional distributors, and contract manufacturing OEM partners evaluate internal fixation plates not by brand aura, but by quantifiable metallurgical purity, fatigue-life cycle analysis, screw thread locking engagement security, and regulatory dossier completeness.
65-75%
Direct Cost Reduction vs Tier-1 Brands
1.2M+
Global Annual Distal Tibia Cases
100%
ASTM F136 Ti-6Al-4V Traceability
< 15μm
CNC Thread Machining Tolerance
Orthopedic Biomechanics
Plate Architecture: Medial vs. Anterolateral Locking Systems
Detailed engineering deconstruction of anatomical curvature, combi-hole functionality, and low-profile tapered contours designed to avert soft tissue impingement.
Medial Distal Tibia Locking Architecture
Engineered to mimic the complex S-curve of the medial malleolus and the distal metaphysical tibial flare. The plate tip features a slim, smooth-beveled transition allowing subcutaneous tunneling via the Minimally Invasive Percutaneous Plate Osteosynthesis (MIPPO) technique without stripping the periosteal blood supply.
Anterolateral Distal Tibia Platings
Targeted for Chaput fragment stabilization, anterior pilon impaction, and severe osteopenic articular collapse. Its distal screw trajectory provides divergent subchondral raft rafting arrays that secure the subchondral joint line without violating the tibiotalar joint capsule.
Dynamic Combi-Hole Technology
Incorporates integrated locking compression combi-holes across the shaft. Surgeons can alternate between standard dynamic compression screws (providing interfragmentary axial compression) and threaded locking screws (creating an internal fixator frame with zero periosteal pressure).
| Biomechanical Parameter | ZATH High-Efficiency LCP Distal Tibia | Standard Conventional Plates | Clinical Performance Rationale |
|---|---|---|---|
| Raw Material Specification | ASTM F136 Ti-6Al-4V ELI (Grade 23) | Commercial CP Grade 4 / Standard SS316L | Eliminates notch sensitivity; delivers 22% higher fatigue life under cyclical ankle loads. |
| Distal Head Profile Thickness | 1.8 mm – 2.0 mm Low-Profile Taper | 3.0 mm – 3.8 mm Uniform Bulk | Drastically lowers skin tension over the medial malleolus, reducing dehiscence & bursitis. |
| Screw System Configuration | Dual Ø3.5 mm Distal / Ø3.5 & Ø4.0 mm Shaft | Fixed Single Screw Diameter (Ø4.5 mm) | High distal screw density maximizes purchase in cancellous subchondral bone blocks. |
| Periosteal Undercut Underside | Limited-Contact Grooved Underside (LC-LCP) | Flat Underside Contact Surface | Preserves cortical periosteal microcirculation, accelerating callus formation and union rate. |
| Surface Treatment | Type II Hard Electrochemical Anodization | Basic Pickling / Standard Satin Polish | Prevents cold-welding of screw threads into plate holes; significantly improves wear resistance. |
Clinical Engineering Takeaway
The combination of a distal raft of divergent locking screws (Ø3.5mm) and a tapered proximal shaft ensures optimal load transfer across unstable comminuted fractures. The multi-angle divergent screw trajectories construct a rigid three-dimensional bridge scaffold that resists varus/valgus collapse and torsional rotation even in osteoporosis-compromised bone stock.
Manufacturing Economics
The Chinese Factory Advantage: Why Quality Orthopedics Can Be Inexpensive
Unveiling how Beijing ZhongAnTaiHua Technology Co., Ltd. (ZATH) transforms automated manufacturing density into unprecedented B2B pricing advantages.
When procurement officers search for cheap LCP distal tibia plate quotes, skepticism often surfaces regarding quality control, material purity, and dimensional tolerances. However, China's modern orthopedic production hubs—such as ZATH's modern industrial facility within the Zhongguancun Science and Technology Park in Pinggu, Beijing—have fundamentally disproven the correlation between high pricing and high quality. Since its founding in 2009, ZATH has cultivated an integrated manufacturing ecosystem comprising over 300 skilled professionals, including nearly 100 seasoned engineering and metallurgical technicians.
The structural reason ZATH can deliver quotes 60% to 75% lower than European or North American competitors rests on four foundational pillars:
1. Vertically Integrated Raw Material Supply
By procuring ultra-pure Ti-6Al-4V ELI medical titanium directly from government-certified primary smelters with comprehensive melt-lot documentation, raw material costs are strictly insulated from intermediate broker markups, while ensuring chemical and mechanical compliance with ISO 5832-3 and ASTM F136.
2. Multi-Axis CNC & Swiss Wire EDM Centers
ZATH’s production workshops operate high-precision, continuous 5-axis CNC machining centers and wire electrical discharge machines (EDM). Complex anatomical twists and screw-thread locking recesses are machined in single-setup passes, reducing spindle downtime and ensuring micro-tolerances below 15 micrometers.
3. Complete Quality Traceability Under ISO 13485
Every single titanium distal tibia locking plate undergoes optical coordinate measuring machine (CMM) inspections, thread gauge clearance verification, ultrasonic automated degreasing, and Class 10,000 cleanroom sterile pouch packaging—guaranteeing 100% batch-to-batch repeatability and sterile safety.
Surgical Protocol
Clinical Application Scenarios & MIPPO Techniques
How surgical teams utilize anatomical distal tibia plates across trauma, osteoporotic fragility fractures, and complex reconstructive non-unions.
1. High-Energy Pilon Fractures (AO/OTA Classification 43-B and 43-C)
In high-speed road collisions or falls from substantial heights, vertical axial impaction shatters the tibial plafond into multiple osteochondral fragments. The ZATH LCP Distal Tibia Plate acts as a fixed-angle neutralizing buttress. Surgeons routinely adopt a two-stage approach: preliminary external fixation (spanning the ankle joint) to allow soft-tissue swelling to subside, followed by definitive open reduction and internal fixation (ORIF) or minimally invasive percutaneous plate osteosynthesis (MIPPO) using pre-shaped low-profile plates.
2. Distal Tibial Metaphyseal Extra-Articular Fractures (AO/OTA 43-A)
In extra-articular distal fractures where the distal fragment is short (within 3 to 5 cm of the joint line), conventional plates fail due to inadequate screw purchase. The clustered multi-hole distal head of the LCP distal tibia plate allows placement of 4 to 6 fixed-angle locking screws in a remarkably compact zone, providing maximum holding power even in compromised cancellous bone.
3. Geriatric Osteoporotic Fractures
In aging populations, low-energy twisting falls produce spiral distal tibia fractures complicated by thin cortical bone and widened medullary canals. Standard cortical screws easily strip during insertion. Locking screw technology solves this: the screw locks securely into the plate hole itself, eliminating dependence on bone friction and vastly diminishing the incidence of secondary reduction loss, screw toggle, and construct loosening.
4. Complex Malunions and Non-Unions
Failed primary fixations, infected pseudoarthroses, or malaligned fractures require rigid stabilization coupled with bone grafting. The high stiffness and contour compatibility of the ZATH titanium distal tibia system provides the absolute mechanical stability required to promote bone consolidation and early limb rehabilitation.
B2B Sourcing Guide
Global Procurement Demands: Tender Compliance & OEM Flexibility
Key parameters overseas medical device buyers, ministry of health evaluators, and private label distributors must scrutinize when selecting an implant partner.
Regulatory Dossiers & Certifications
International imports demand rigorous documentation. ZATH furnishes complete technical construction files (TCF), ISO 13485 certification, biocompatibility test results (cytotoxicity, sensitization, systemic toxicity per ISO 10993), sterilization validation (ISO 11137 / ISO 11135), and Free Sale Certificates (FSC) to expedite local ministry of health registrations.
Matching Dedicated Surgical Instrument Sets
An implant is only as good as the instruments that seat it. ZATH delivers fully integrated, autoclavable instrument sets—including torque-limiting screwdrivers, drill sleeves, quick-release handles, countersinks, periosteal elevators, and reduction forceps—engineered to prevent stripping and ensure rapid surgical execution.
Agile OEM/ODM & Rapid Global Logistics
Distributors can customize laser etching (company logo, customized lot numbering, unique UDI matrix), tailored plate lengths (4 to 14 holes), and customized sterile packaging graphics. Rapid air courier dispatches (DHL, FedEx, UPS) guarantee delivery to international destinations within 4 to 6 business days.
Innovation Trajectory
Next-Generation Trends in Distal Tibia Plating
Anticipating the technological developments that will dominate trauma surgery and implant procurement over the coming decade.
The distal tibial trauma market continues to evolve rapidly. Forward-thinking procurement teams must keep an eye on upcoming advancements that will impact clinical outcomes and supply requirements:
1. Variable-Angle (Polyaxial) Locking Systems: While fixed-angle plates remain the gold standard for cost-effective rigidity, second-generation systems are integrating variable-angle locking holes that permit the surgeon to aim screws within a 30-degree cone (±15° off-axis). This capability enables targeted capture of fragmented intra-articular fractures and avoids preexisting implants or prosthetic stems.
2. 3D-Printed Porous Titanium Additive Manufacturing: The transition from traditional billet milling to additive electron beam melting (EBM) and selective laser melting (SLM) is enabling patient-specific custom distal tibia plates for massive bone loss and severe segmental trauma, featuring trabecular porous bone ingrowth surfaces that accelerate osseointegration.
3. Carbon-Fiber Reinforced PEEK and Radiotranslucent Plates: To facilitate crystal-clear intraoperative fluoroscopic viewing of the reduction zone, radiotranslucent materials with elasticity closer to natural bone are entering specialized surgical sub-sectors, though titanium alloy (Ti-6Al-4V) remains the primary material for high-strength load bearing at scale.
Procurement & Clinical Q&A
Frequently Asked Questions for Hospital & Trade Buyers
Direct answers addressing pricing structures, regulatory dossiers, instrument compatibility, and factory capabilities.
Why are ZATH's LCP distal tibia plate quotes significantly cheaper than Western Tier-1 brands?
ZATH’s competitive quotes stem entirely from operational efficiency, vertical manufacturing integration, and scale. We operate our own multi-axis CNC machining, wire EDM cutting, surface treatment, and cleanroom packaging facilities in Beijing. By eliminating multi-tier brokerage channels, massive marketing overheads, and third-party contract manufacturers, we pass direct factory cost savings of 60%–75% onto our hospital and distributor partners, without sacrificing titanium alloy quality (ASTM F136) or ISO 13485 manufacturing tolerances.
What is the difference between medial and anterolateral distal tibia locking plates?
The Medial Distal Tibia Plate is pre-contoured to fit the medial malleolus and metaphysical flare, making it ideal for standard MIPPO subcutaneous insertion and medial column stabilization. However, when the medial soft tissue envelope is compromised (blisters, open fractures, skin contusions), the Anterolateral Distal Tibia Plate provides a safe surgical approach through the anterolateral angiosome, securing the Chaput fragment and offering multiple subchondral rafting screws across the tibial plafond.
Can ZATH provide sterile packaging ready for direct operating theater (OR) delivery?
Yes. All ZATH orthopedic implants, including our distal tibia plates and locking screws, can be supplied in pre-validated medical-grade Tyvek blister packs (radiation or ethylene oxide sterilized). Sterile-packed implants drastically streamline operating room preparation, reduce hospital sterilization burdens, eliminate cross-contamination risks, and comply with strict national health regulations.
Are your titanium plates compatible with other standard 3.5 mm locking screw systems?
ZATH's combi-hole threads are designed according to international standard AO-type specifications for 3.5 mm locking screws and 3.5 mm standard cortical screws. While our plates match international thread geometry, we strongly recommend deploying ZATH’s dedicated matching instruments and screw packs to ensure 100% thread engagement accuracy and avoid cold-welding risks associated with slight pitch variations.
What is the turnaround time for bulk distributor orders and custom OEM requests?
For standard in-stock catalog configurations, orders ship via DHL, FedEx, TNT, or UPS within 48 hours, with transit times averaging 4 to 6 days worldwide. Custom OEM/ODM requests (involving custom plate lengths, specific anodization colors, proprietary brand laser markings, or customized kit layouts) generally maintain a swift production lead time of 3 to 4 weeks upon drawing sign-off.
What documentation is supplied to support regional medical device product registration?
Qualified procurement partners receive our complete technical documentation suite: ISO 13485 QMS certificates, raw material mill certificates showing mechanical and chemical properties, static and dynamic 4-point bending fatigue test data per ASTM F382, ISO 10993 biocompatibility testing reports, shelf-life accelerated aging validation, and Free Sale Certificates (FSC).
Featured Portfolio • Batch II
Extended Trauma, Joint & Spine Solutions
Comprehensive orthopedic catalog matching trauma implants with high-precision surgical instruments for worldwide hospital requirements.
Trauma Plate
China Humerus Limited Contact Locking Compression Plate Manufacturer, Service
Request Quote
Trauma Plate

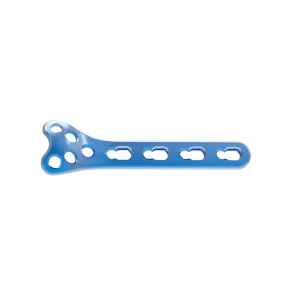

Best Radial Head Locking Compression Plate Manufacturer, Company
Request Quote
Screw Set
Wholesale Professional Ф3.5/4.5/7.3 Cannulated Screw Instrument Set Products, Service
Request Quote
Fixation Pin

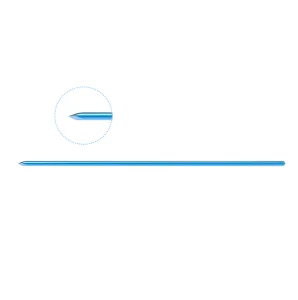

Best Titanium Alloy Orthopedic Bone Pin Factories, Company
Request Quote
Spine Kit
Famous Spine Surgery Thoracolumbar PLIF Cage Instrument Set Supplier, Suppliers
Request Quote
Hip Implant

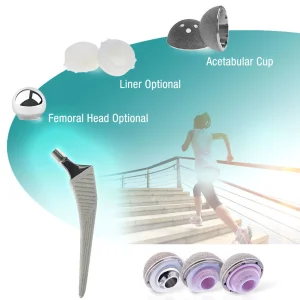

Discount Professional Medical Hip Implant Titanium Bipolar Hip Joint Prosthesis Manufacturers, Supplier
Request Quote
Spine Kit

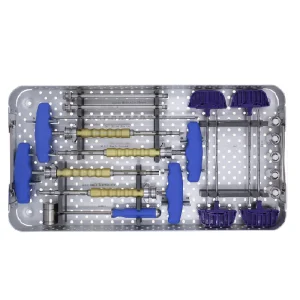

Cheap Spine Instrument Set (Zenith HE Instrument Set) Suppliers, Quotes
